Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

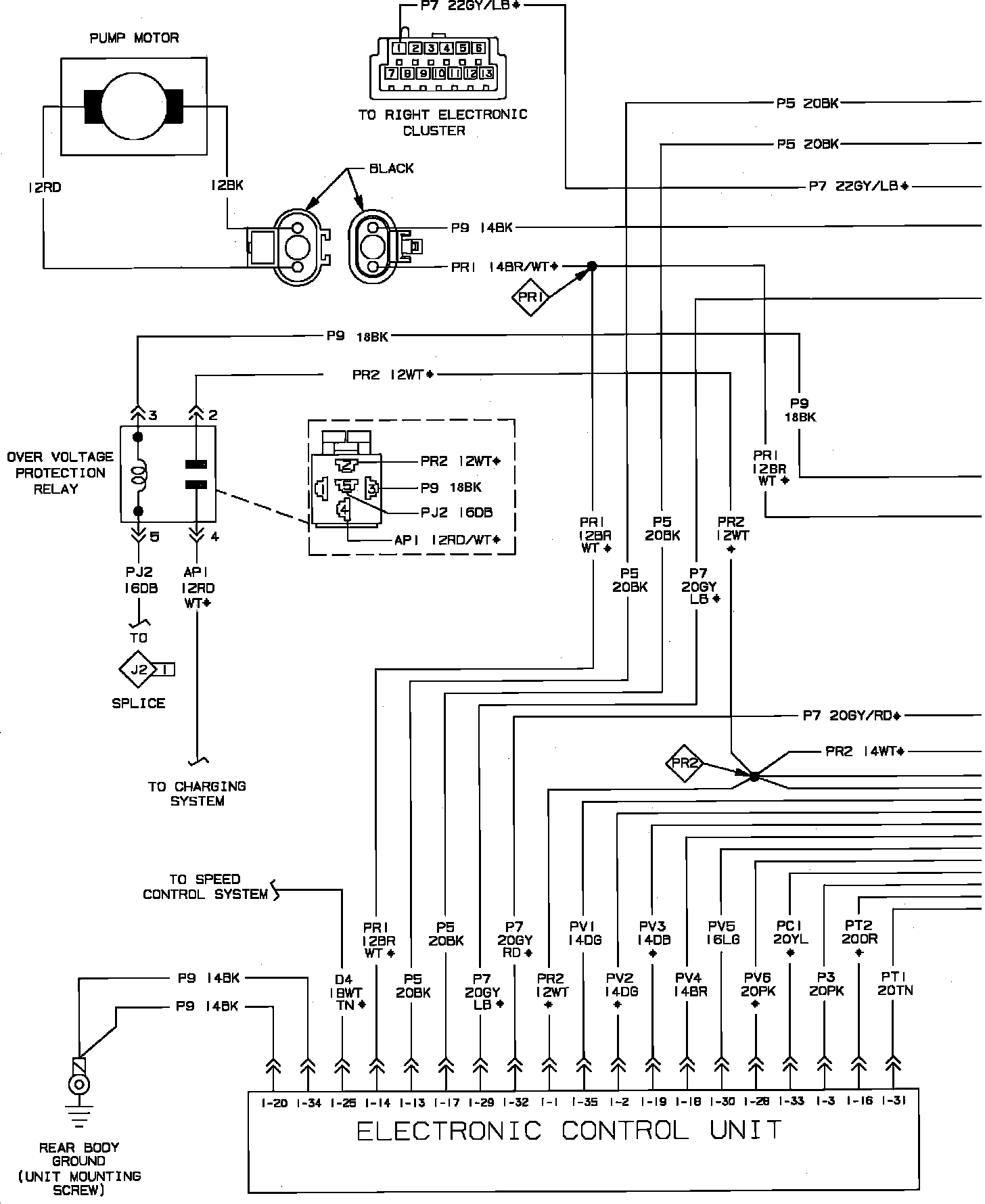

Anti-Lock Brake System Wiring Circuit:

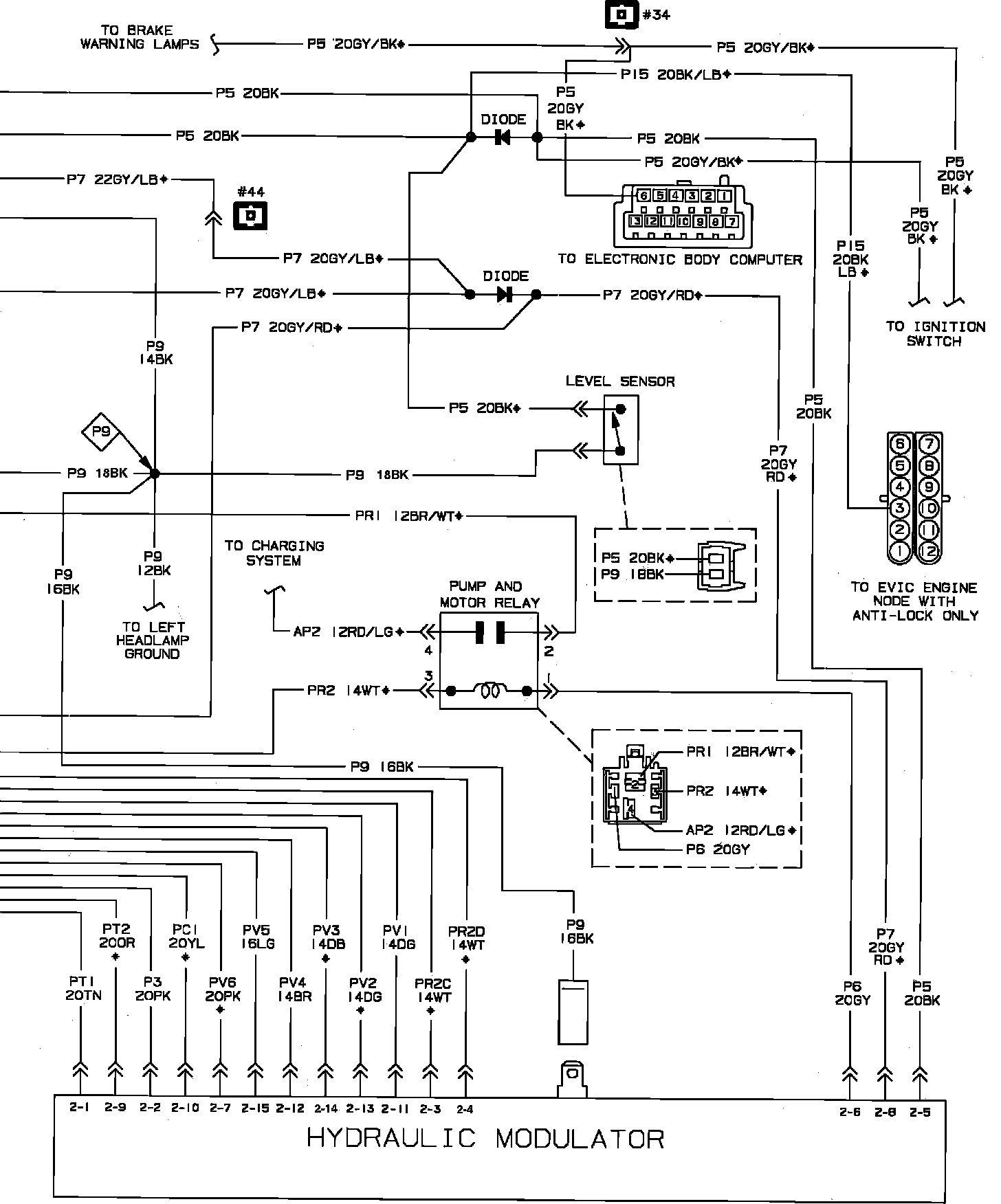

Anti-Lock Brake System Wiring Circuit:
Anti-Lock Brake System Wiring Circuit:
