Driver/Vehicle Information Display

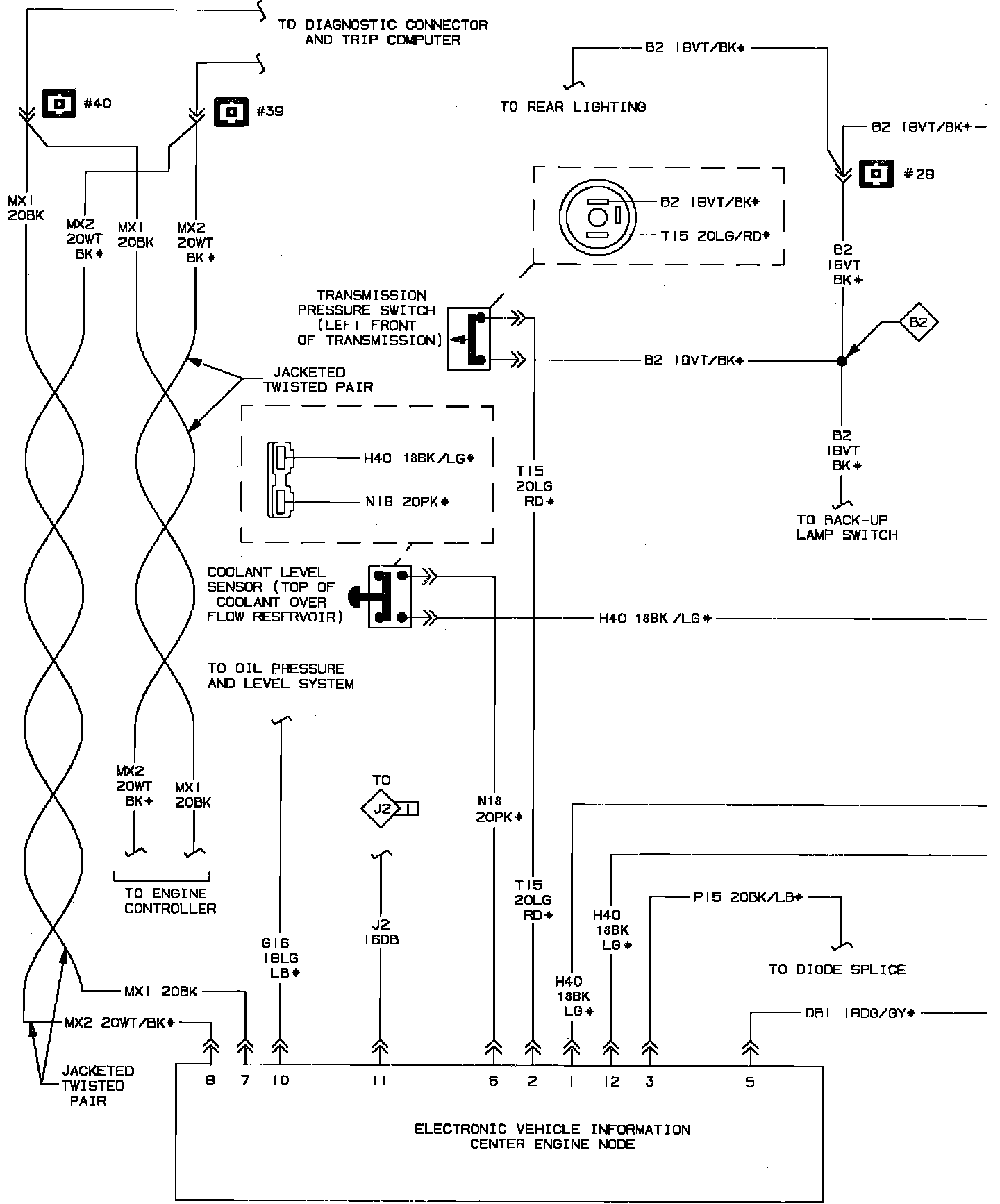

Electronic Information Center Wiring Circuit:

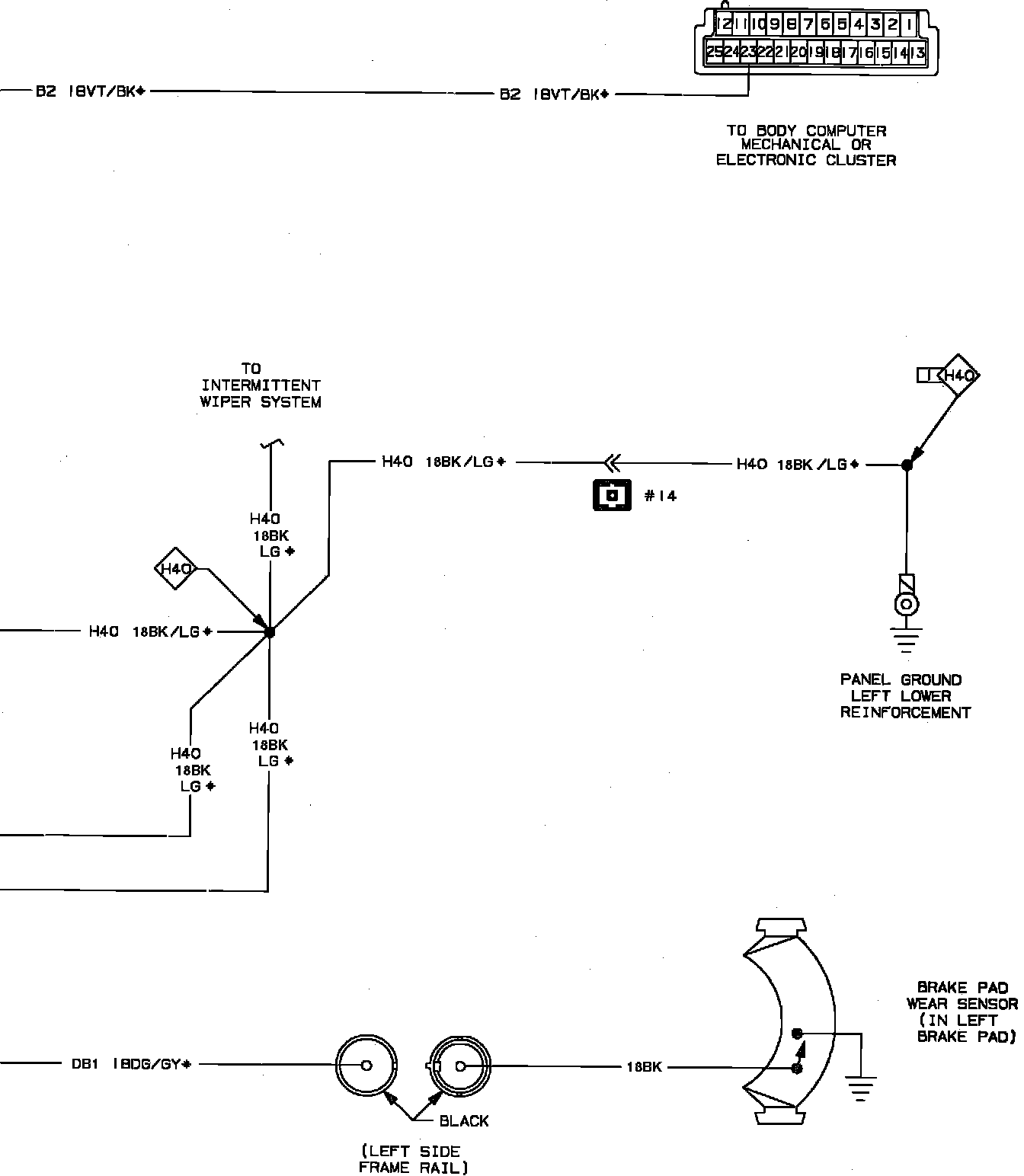

Electronic Information Center Wiring Circuit:
