Temperature Switch (Warning Indicator)
Temperature Switch (Warning Indicator)

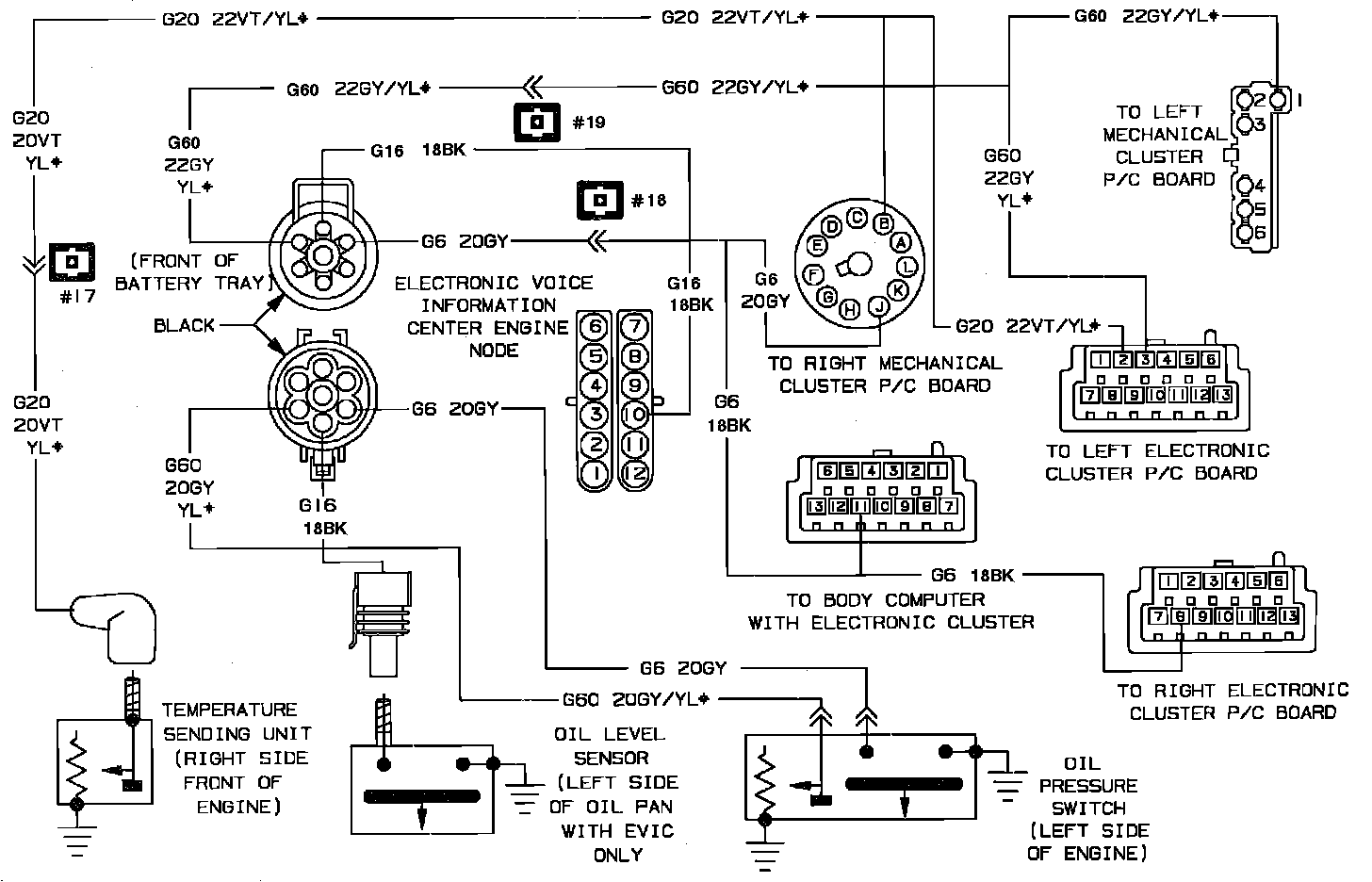

Oil & Temperature Warning System Wiring Circuit:
