Suspension Control ( Automatic - Electronic )

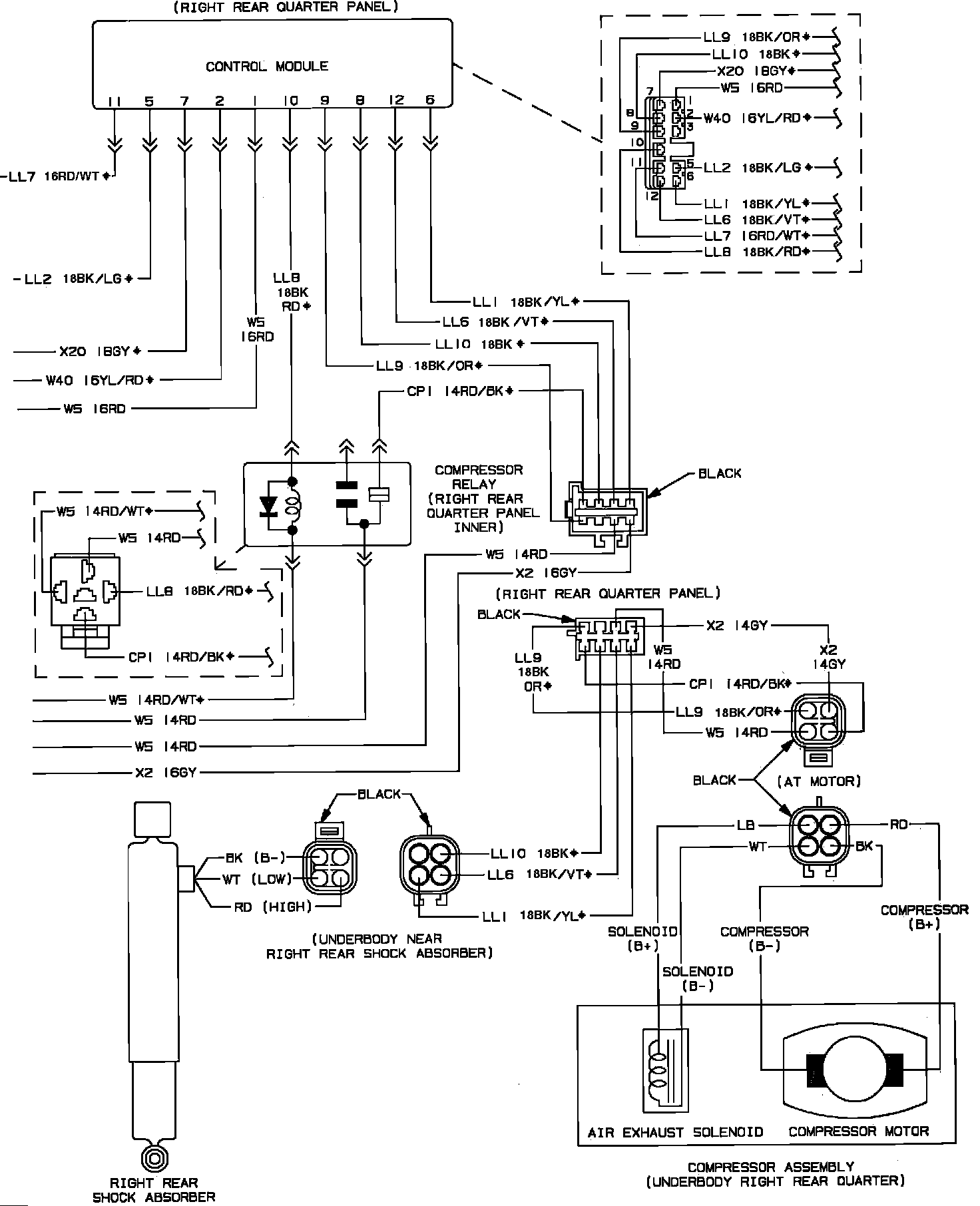

Automatic Load Leveling System Wiring Circuit:



Automatic Load Leveling System Wiring Circuit:
