Trunk / Liftgate
Trunk / Liftgate

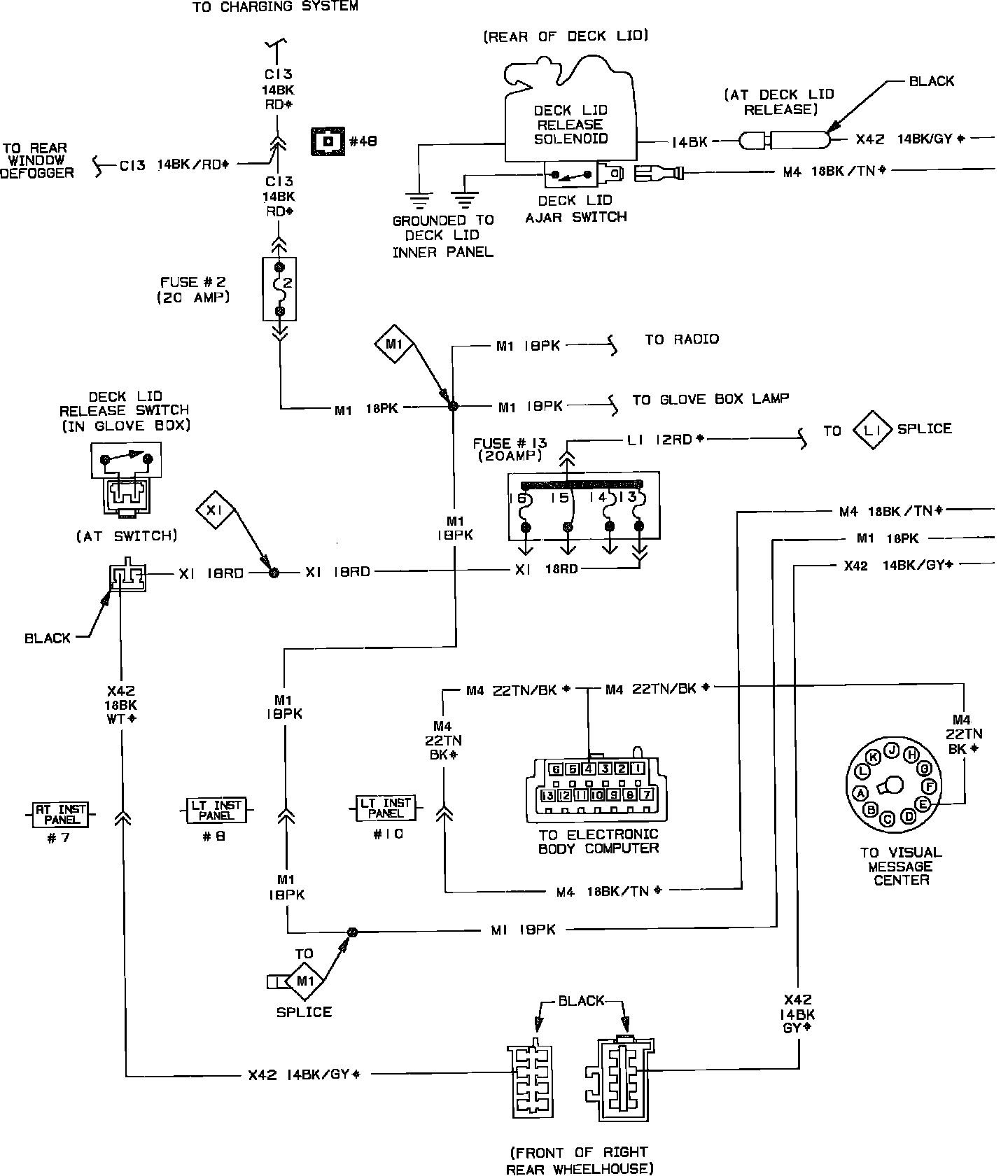

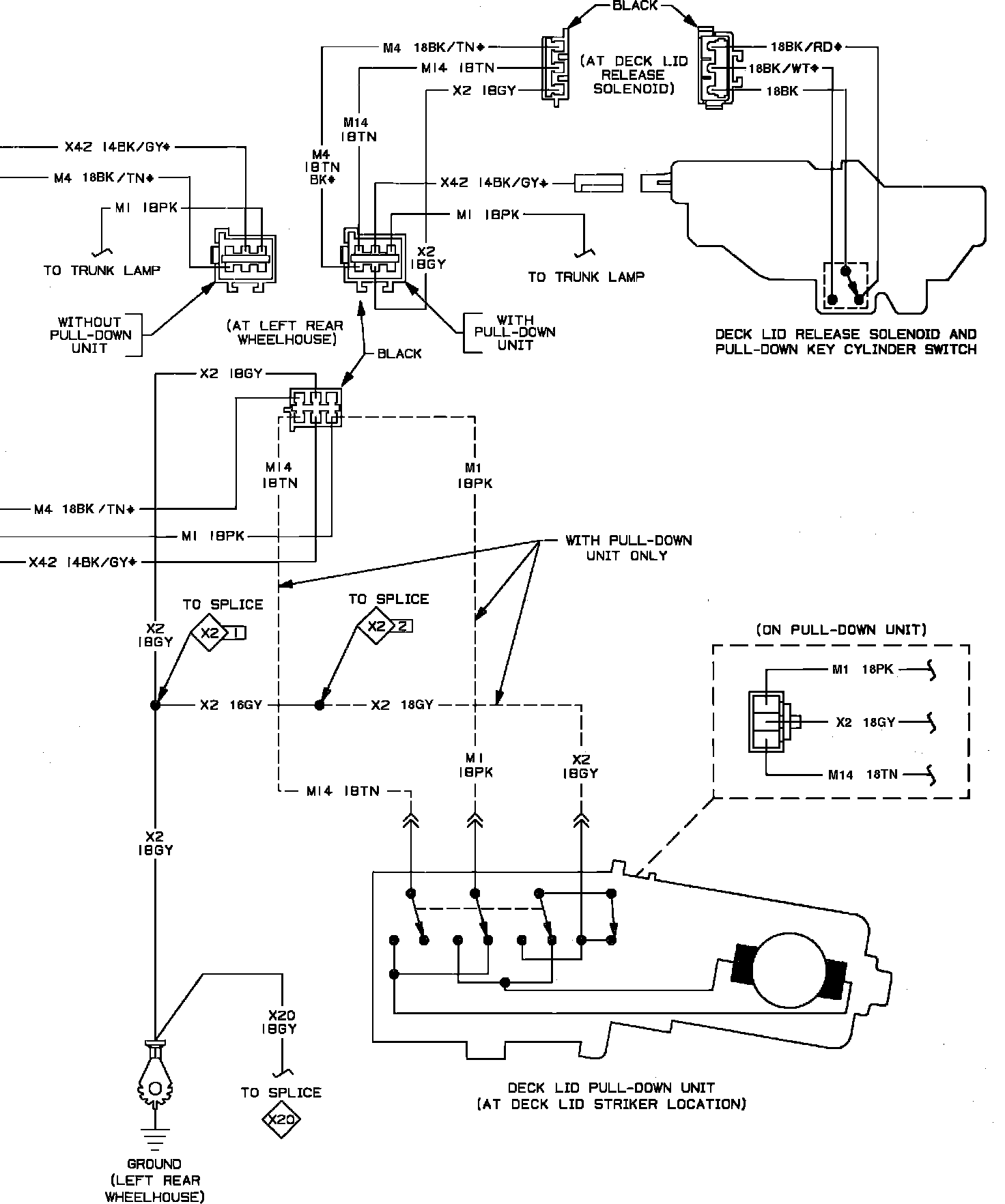

Power Deck Lid Pull-Down & Release Wiring Circuit:
Power Deck Lid Pull-Down & Release Wiring Circuit:
