Left Side
Left Side

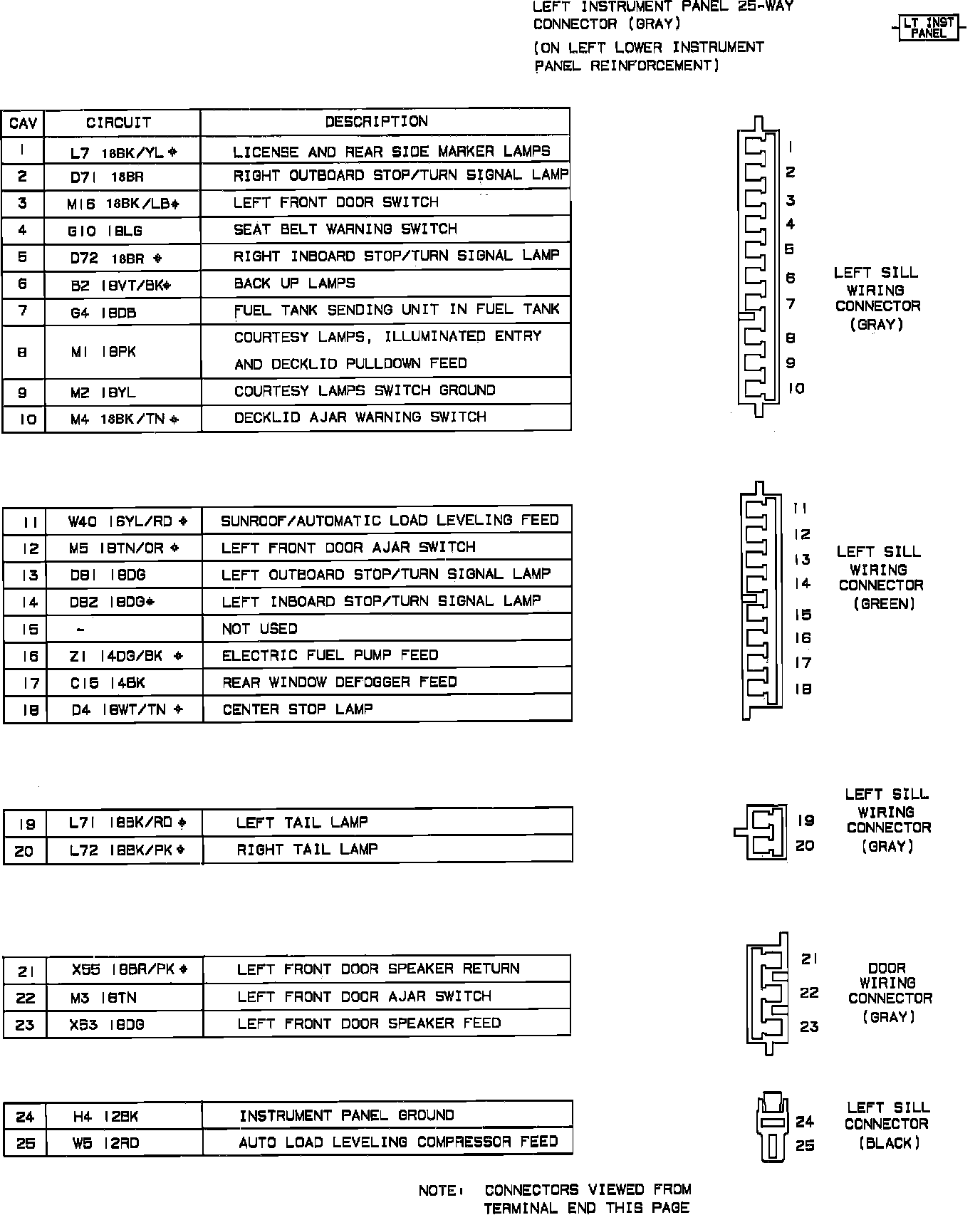

Body To Instrument Panel Connectors. Left Side:

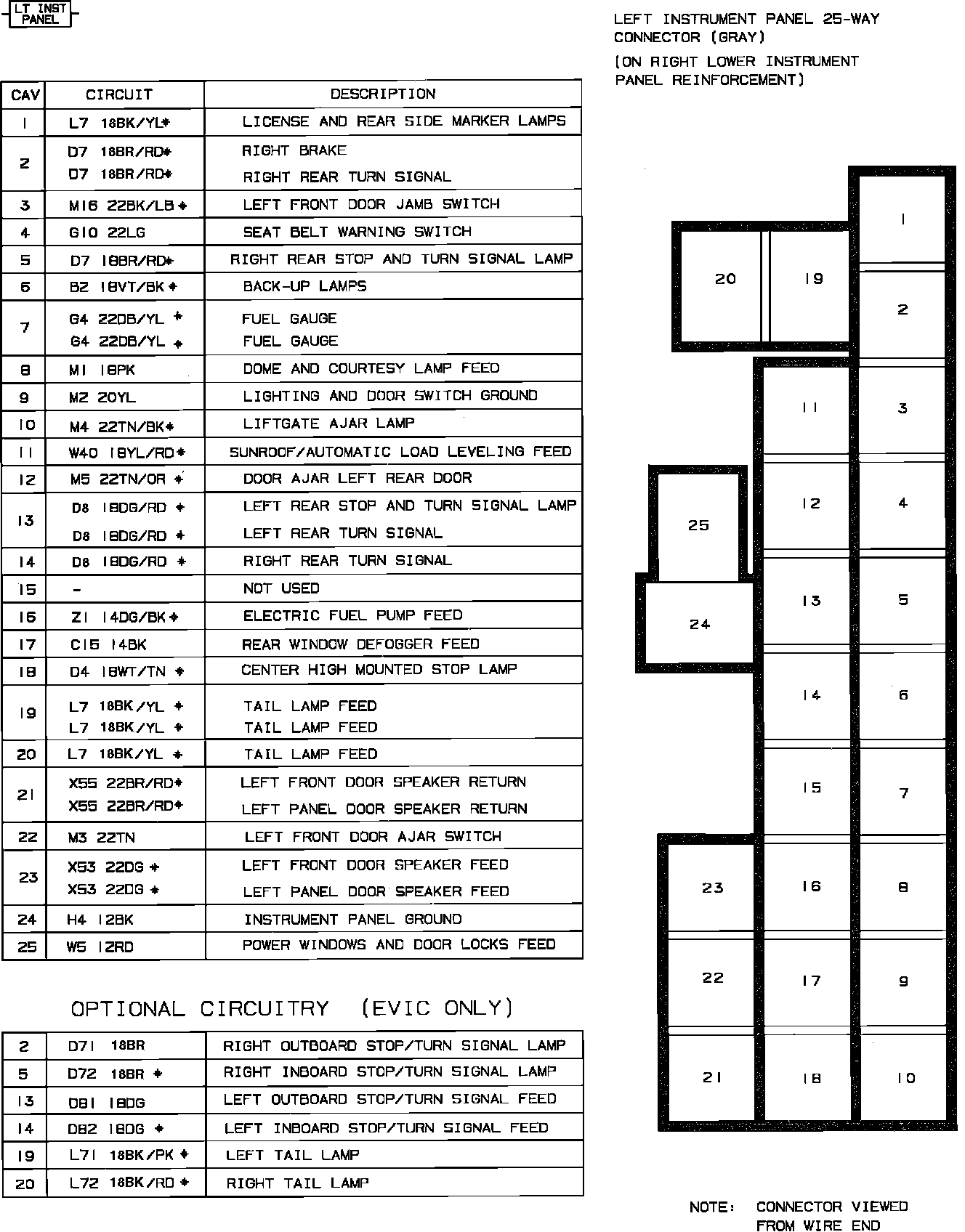

Body To Instrument Panel Connectors. Left Side:
