Home
>>
Chrysler
>>
1989
>>
Fifth Avenue V8-318 5.2L VIN P 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Without Automatic Temperature Control (ATC)
Without Automatic Temperature Control (ATC)

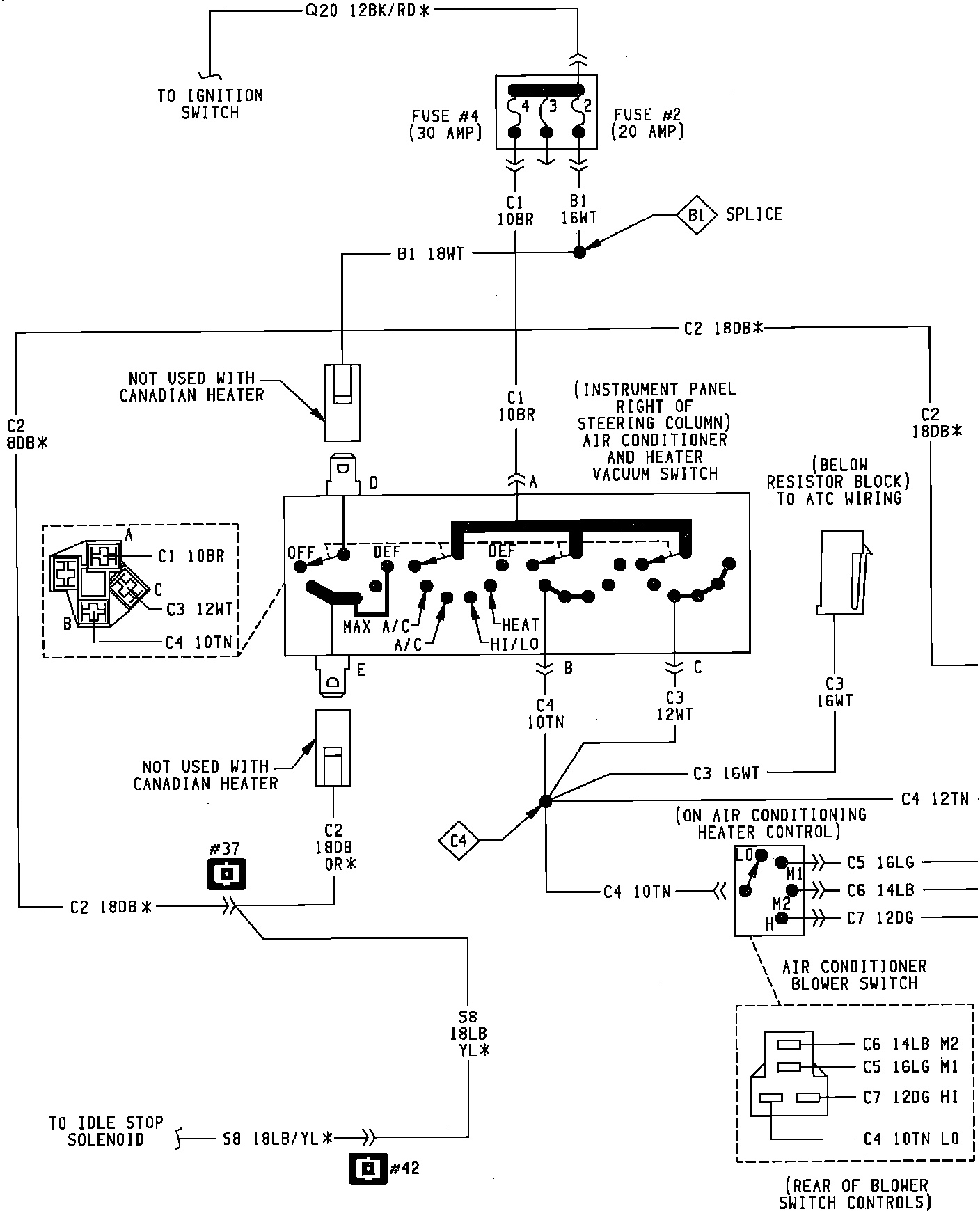

A/C-Heater System (Part 1 Of 2):
A/C-Heater System (Part 2 Of 2):
