Lebaron Convertible L4-135 2.2L SOHC Turbo VIN A FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Detailed Descriptions
Detailed Descriptions

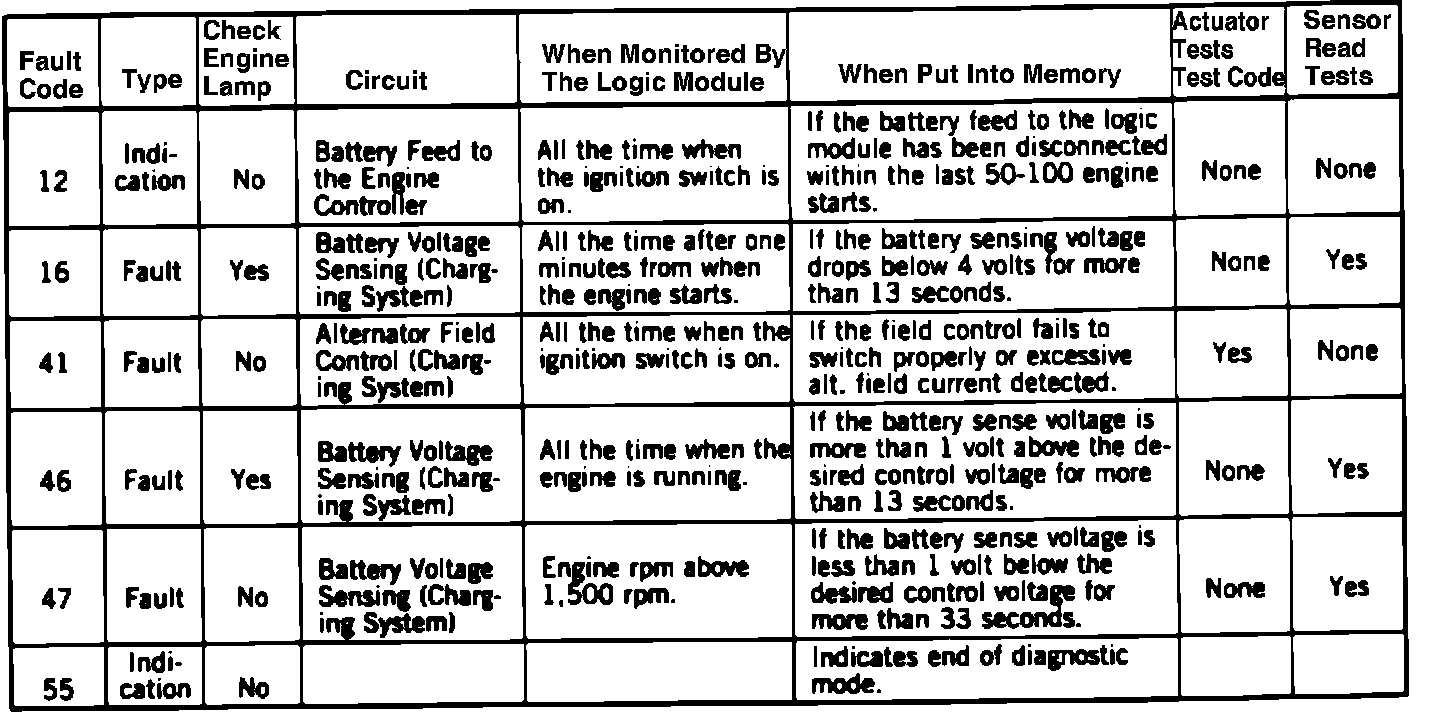

Fig. 29 Alternator Trouble Code:
