Verification Test SP-VER - Speed Control
Verification Test SP-VER - Speed Control
Fig. 13 Test SP-VER, Speed Control Verification (Part 1 Of 2):

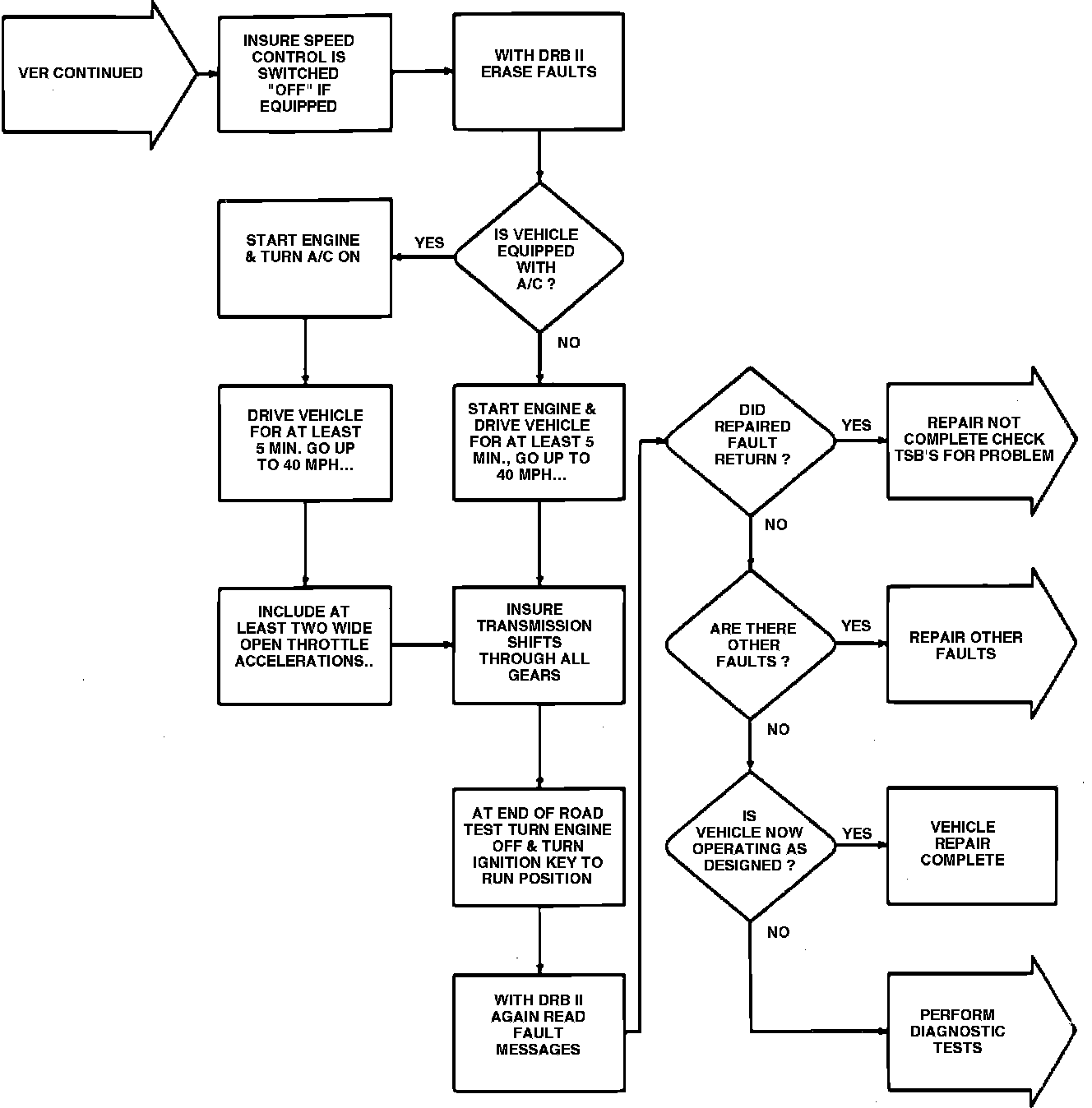

Fig. 13 Test SP-VER, Speed Control Verification (Part 2 Of 2):
