Chrysler
>>
1989
>>
Lebaron Convertible L4-153 2.5L SOHC VIN K FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Convertible Top
Convertible Top

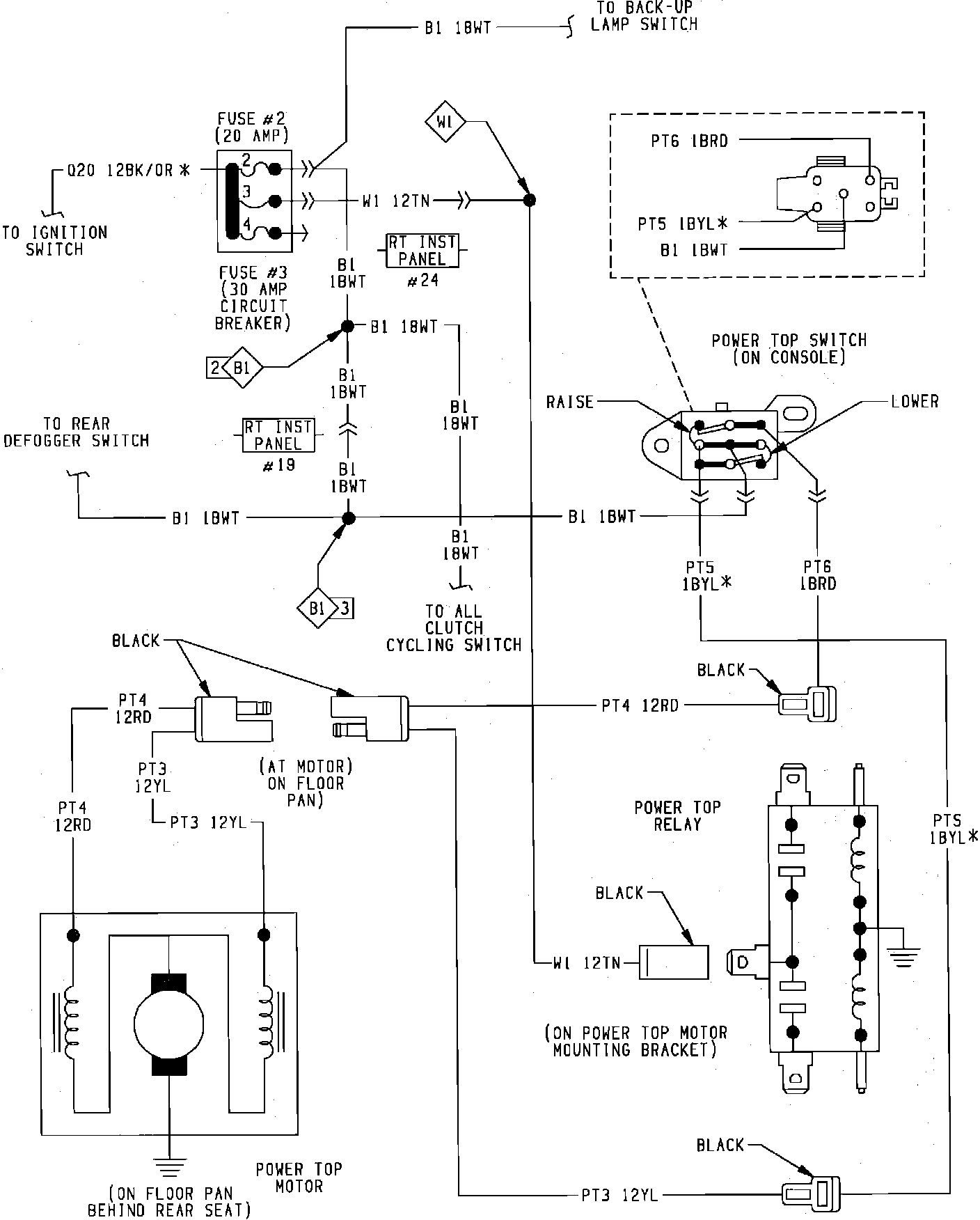

Power Top System Wiring Circuit:
