Seats

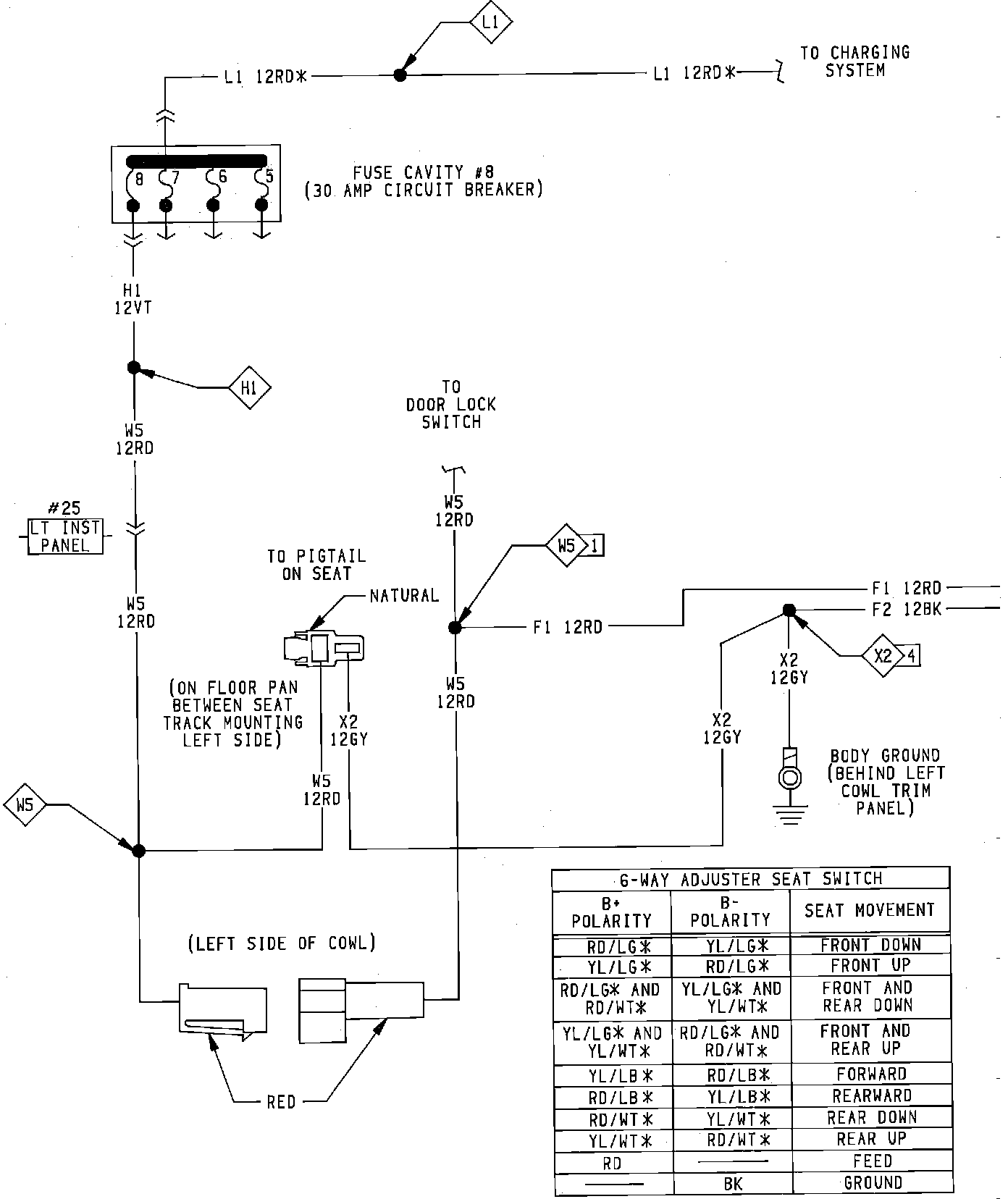

Left Bucket Power Seat System Wiring Circuit:



Left Bucket Power Seat System Wiring Circuit:
