Pkg. No. 4519071

INSTALLATION INSTRUCTIONS

CHILD SEAT TETHER ANCHORAGE PLYMOUTH ACCLAIM AND DODGE SPIRIT

CHRYSLER NEW YORKER FIFTH AVE.

CHRYSLER IMPERIAL
INSTALLATION INSTRUCTIONS


PACKAGE NO. 4519071

CHILD SEAT TETHER ANCHORAGE

PLYMOUTH ACCLAIM AND DODGE SPIRIT CHRYSLER NEW YORKER FIFTH AVENUE CHRYSLER IMPERIAL


CAUTION: THIS PACKAGE IS ONLY FOR 1989 AND LATER MODELS LISTED ABOVE. DO NOT ATTEMPT INSTALLATION IN ANY OTHER VEHICLE. FOLLOW THESE INSTRUCTIONS CAREFULLY AND USE ONLY THE ENCLOSED PARTS.


PACKAGE CONSISTS OF:


Cut Out Description Quantity

A Instruction - Child Seat 1
Tether Anchorage Installation

B Spacer - Child Seat Tether 1
Anchorage

C Bolt - Child Seat Tether 1
Anchorage

D Nut - Child Seat Tether 1
Anchorage

E Reinforcement - Child Seat 1
Tether Anchorage

F Plate - Child Seat Tether 1
Anchorage


INSTALLATION PROCEDURE

1. Open deck lid and remove luggage compartment front liner (if applicable).

2. Locate one of three 9 mm holes in shelf panel. (They can be seen by looking through the elliptical slots in the shelf panel reinforcement from inside the trunk.)

3. Insert a sharp pencil through the 9 mm hole and pierce the carpet covering the shelf panel.
4. Locate (from inside the rear passenger compartment) the access hole in the panel covered by the carpet (this is the area around the pencil tip).

5. Using a sharp knife, remove 30 mm of carpeting around the pencil.

6. Insert a screw driver through the 9 mm hole and remove the perforated 32 mm hole plug in the shelf trim panel.

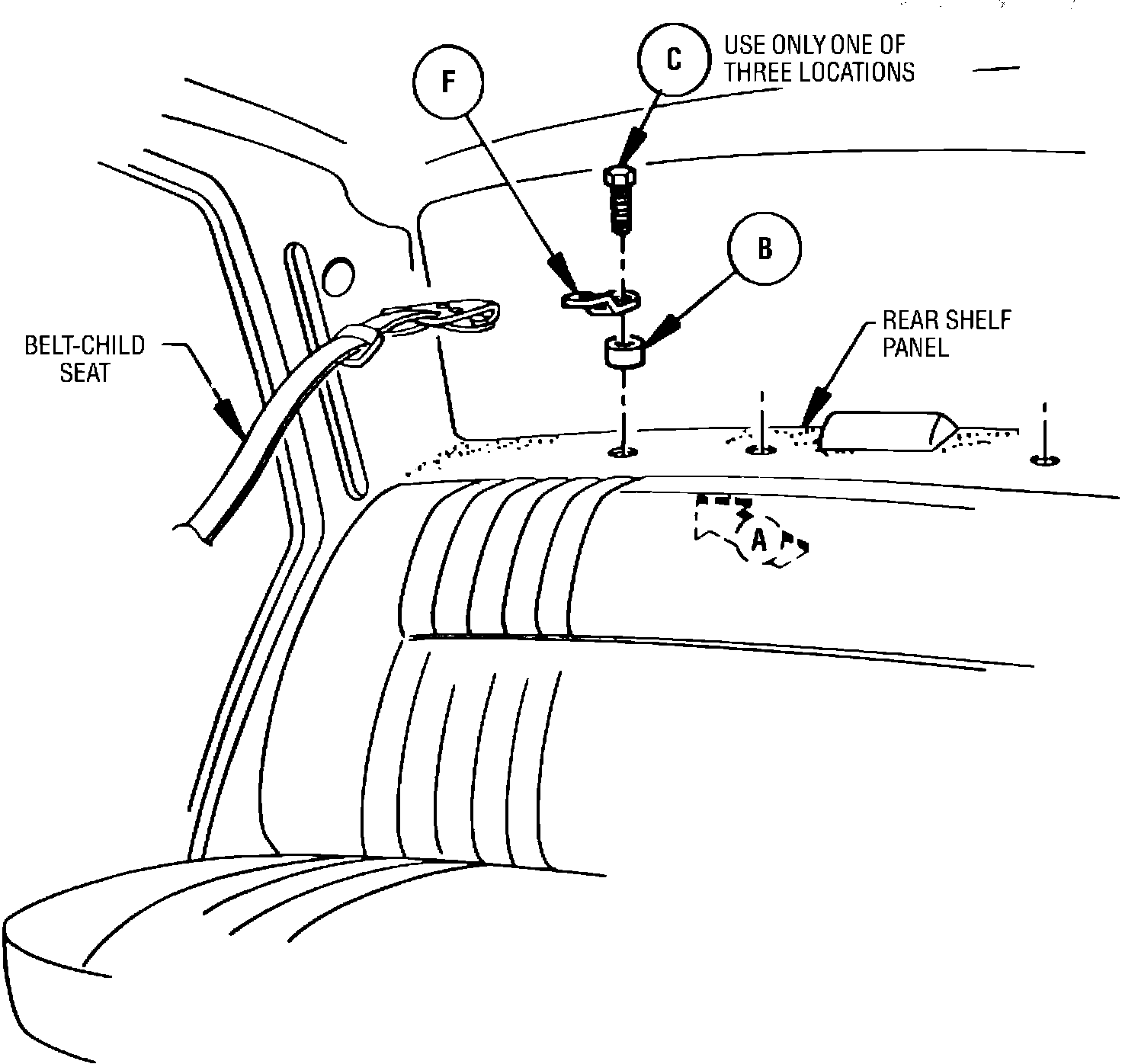

7. Insert the bolt through the plate, spacer, and shelf panel.

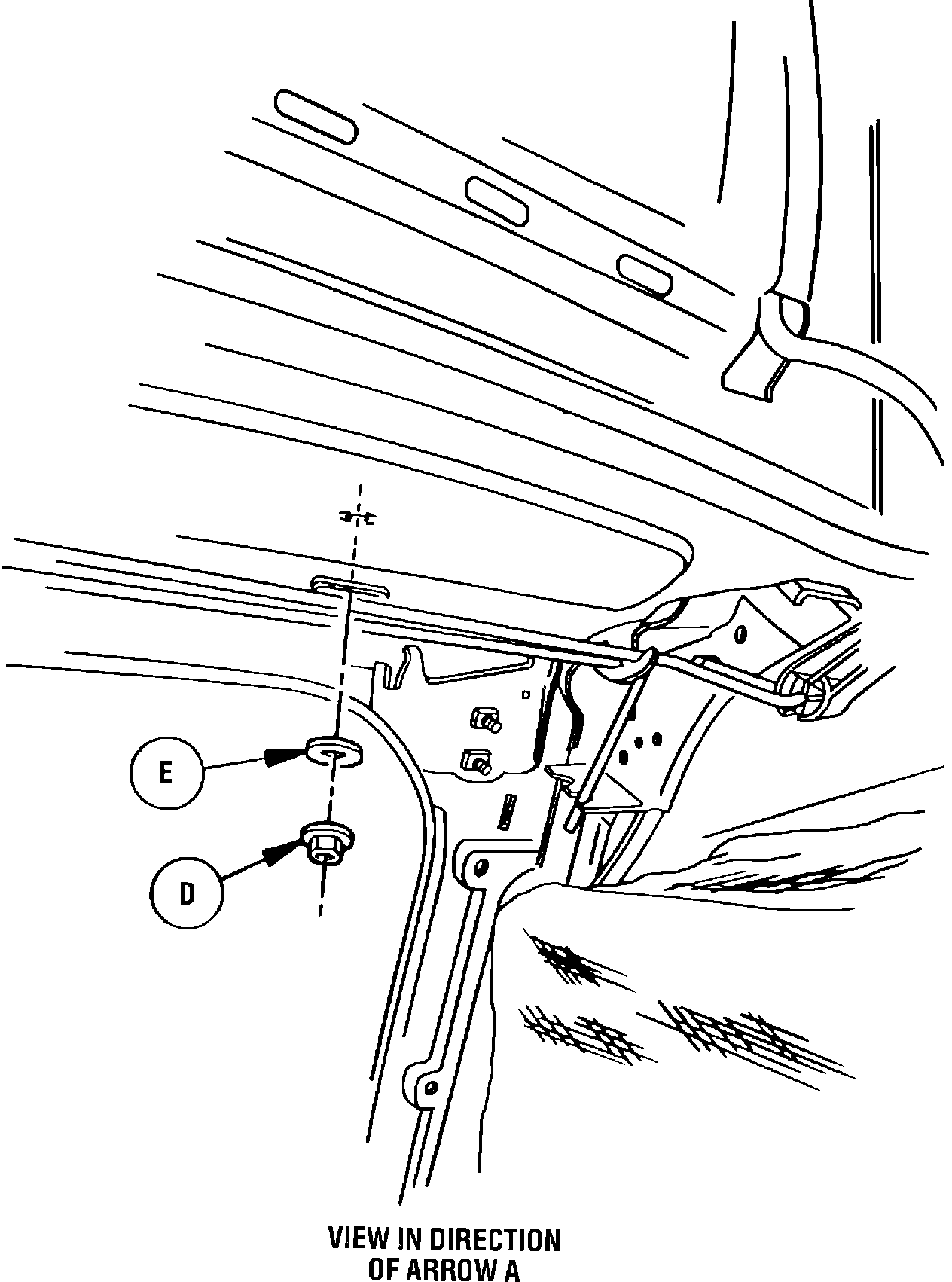

8. From the underside of the shelf panel, place the reinforcement on the bolt and hand tighten the flanged nut.

9. (NOTE: THIS OPERATION REQUIRES THE ASSISTANCE OF ANOTHER PERSON).

While holding the plate as shown in the illustration, tighten the flange nut (tighten nut to 250 inch-pounds torque).

10. REPLACE THE LUGGAGE COMPARTMENT FRONT LINER (IF APPLICABLE).
