Pkg. No. 4519073

INSTALLATION INSTRUCTIONS

CHILD SEAT TETHER ANCHORAGE

DODGE DYNASTY AND CHRYSLER NEW YORKER

CHRYSLER NEW YORKER LANDAU
INSTALLATION INSTRUCTIONS


PACKAGE NO. 4519073

CHILD SEAT TETHER ANCHORAGE

DODGE DYNASTY AND CHRYSLER NEW YORKER CHRYSLER NEW YORKER LANDAU


CAUTION: THIS PACKAGE IS ONLY FOR THE REAR CENTER SEATING POSITION OF THE 1989 AND LATER MODELS LISTED ABOVE. DO NOT ATTEMPT INSTALLATION IN ANY OTHER VEHICLES. FOLLOW THESE INSTRUCTIONS CAREFULLY AND USE ONLY THE SPECIFIED PARTS.


PACKAGE CONSISTS OF:


Cut Out Description Quantity

A Instructions - Child Seat 1
Tether Anchorage Installation

B Spacer - Child Seat Tether 1
Anchorage

C Bolt - Child Seat Tether 1
Anchorage

D Nut Child Seat Tether 1
Anchorage

E Reinforcement - Child Seat 1
Tether Anchorage

F Plate - Child Seat Tether 1
Anchorage


INSTALLATION PROCEDURES

1. Open deck lid and remove the luggage compartment front liner (if applicable).

2. Locate the three 9 mm bumps in the shelf panel. (They can be seen, from inside the trunk, at the center of the circular formations in the shelf panel.)
3. (NOTE: USE ONLY THE CENTER LOCATION.)

Insert a screwdriver at the bump and remove the 32 mm perforated hole plug in the shelf trim panel foundation.

4. Insert a sharp pencil through the hole and pierce the carpet covering the shelf panel.

5. Locate (from inside the rear passenger compartment) the access hole in the panel covered by the carpet (this is area around the pencil tip).

6. Using a sharp knife, remove the carpeting covering the hole.

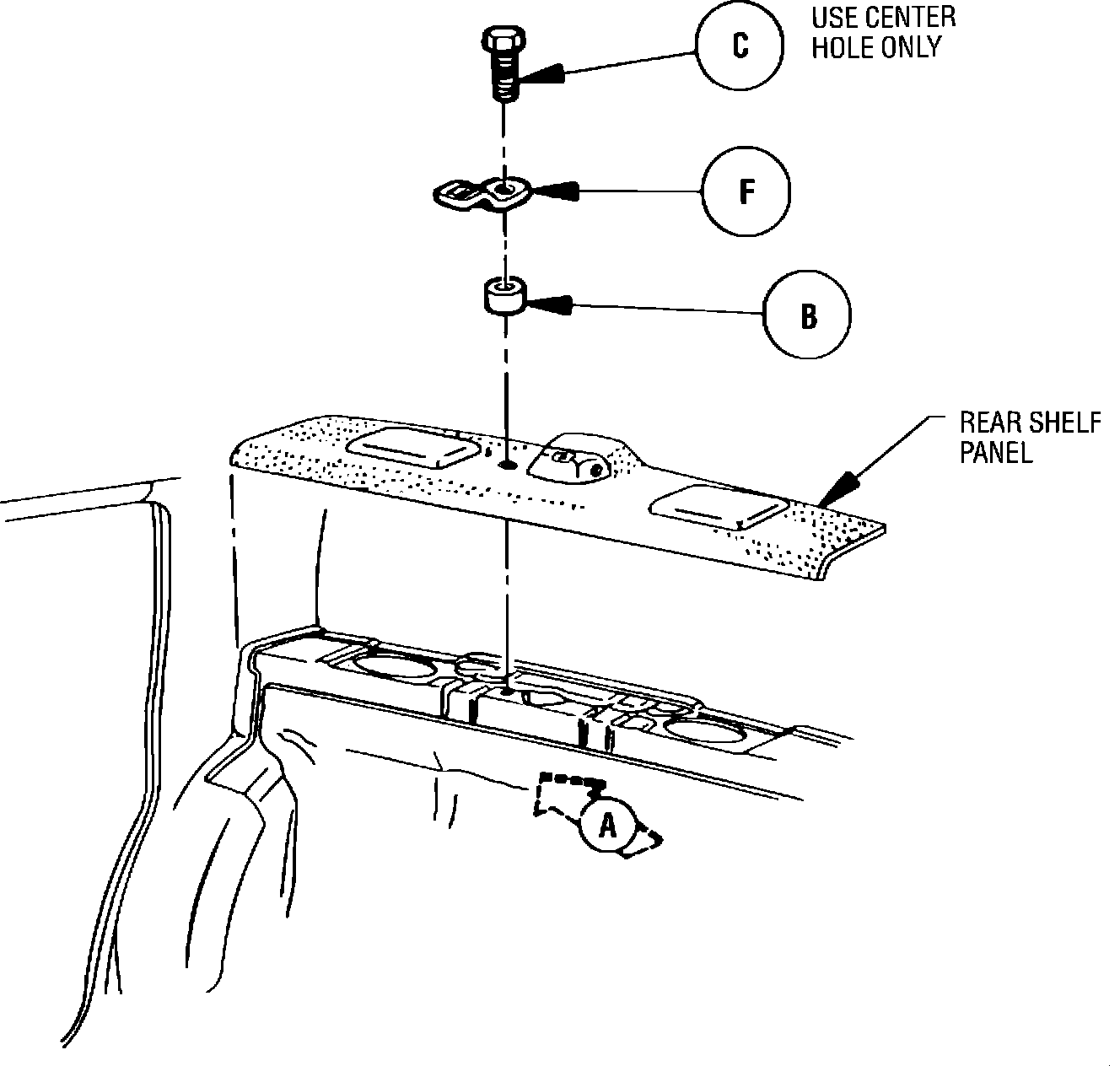

7. Insert the bolt through the plate, spacer, and shelf panel.

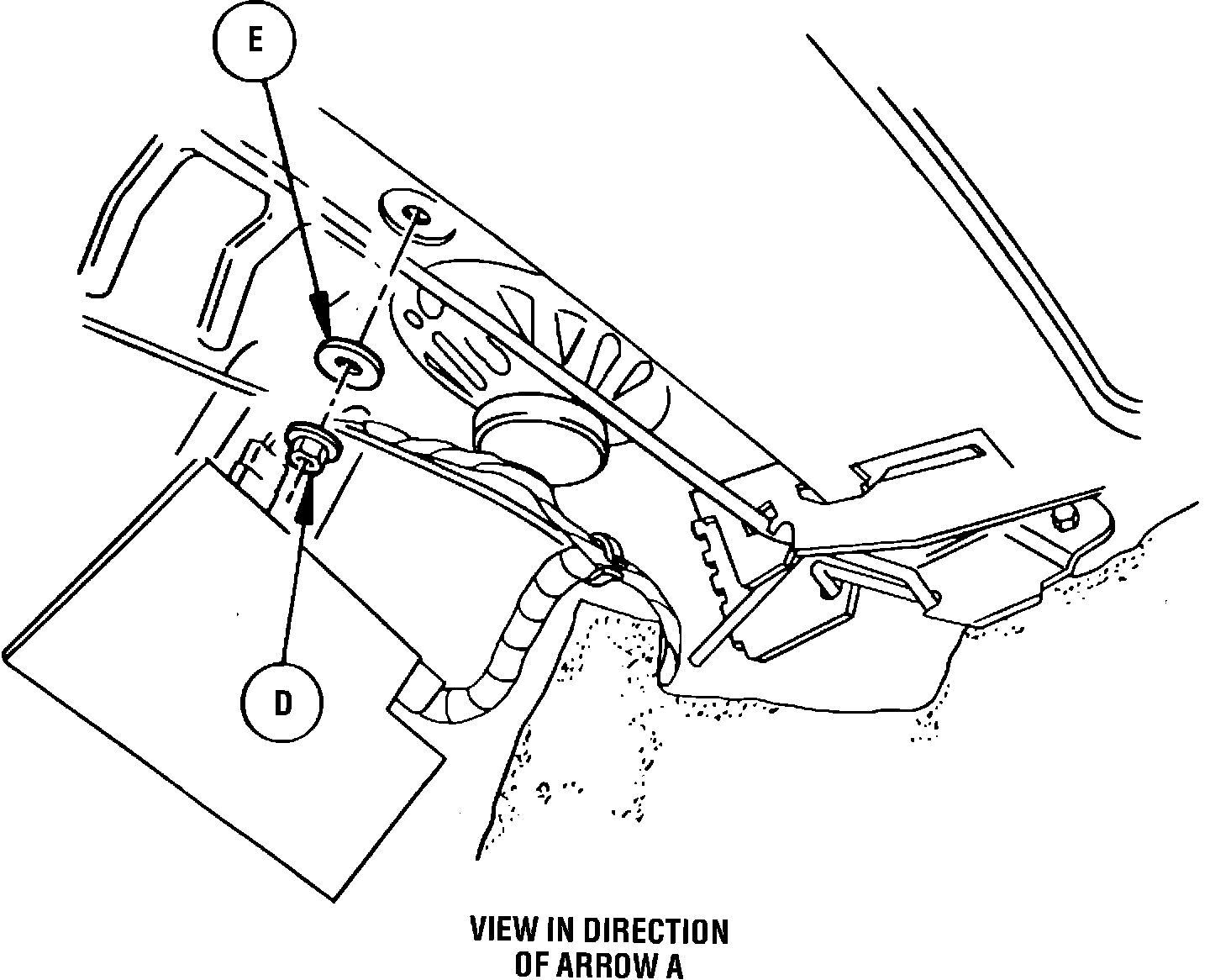

8. From the underside of the shelf panel, place the reinforcement on the bolt and hand tighten the flanged nut.

9. (NOTE: THIS OPERATION REQUIRES THE ASSISTANCE OF ANOTHER PERSON.)

While holding the plate as shown in the illustration, tighten the flange nut (tighten nut to 250 inch-pounds torque).

10. Replace the luggage compartment front liner (if applicable).
