Pkg. No. 4519074







INSTALLATION INSTRUCTIONS

CHILD SEAT TETHER ANCHORAGE
DODGE DAYTONA SHELBY Z AND DODGE DAYTONA PACIFICA
INSTALLATION INSTRUCTIONS


PACKAGE NO. 4519074

CHILD SEAT TETHER ANCHORAGE PACKAGE

DODGE DAYTONA, DAYTONA SHELBY Z, AND DAYTONA PACIFICA


CAUTION: THIS PACKAGE IS ONLY FOR 1989 AND LATER MODELS LISTED ABOVE. DO NOT ATTEMPT INSTALLATION IN ANY OTHER VEHICLES. FOLLOW THESE INSTRUCTIONS CAREFULLY AND USE ONLY THE SPECIFIED PARTS.


PACKAGE CONSISTS OF:


Cut Out Description Quantity

A Instructions - Child Seat 1
Tether Anchorage Installation

B Spacer - Child Seat Tether 1
Anchorage

C Bolt - Child Seat Tether 1
Anchorage

D Plate - Child Seat Tether 1
Anchorage


INSTALLATION PROCEDURES

1. Dodge Daytona (Plastic Trim Panel)

Open the hatch and locate the two plastic plugs in the hatch trim panel and remove one of the plugs.

Dodge Daytona Shelby Z or a Dodge Daytona Pacifica

There are no plugs. The holes for the anchorage in the hatch opening lower trim panel will be covered with carpet. Locate one of the two holes through the unsupported carpet. Using a sharp knife, remove the carpet covering the hole.

2. Insert the bolt through the plate and spacer.

3. Hand start the bolt into the rear fascia attaching bracket located behind the trim panel.

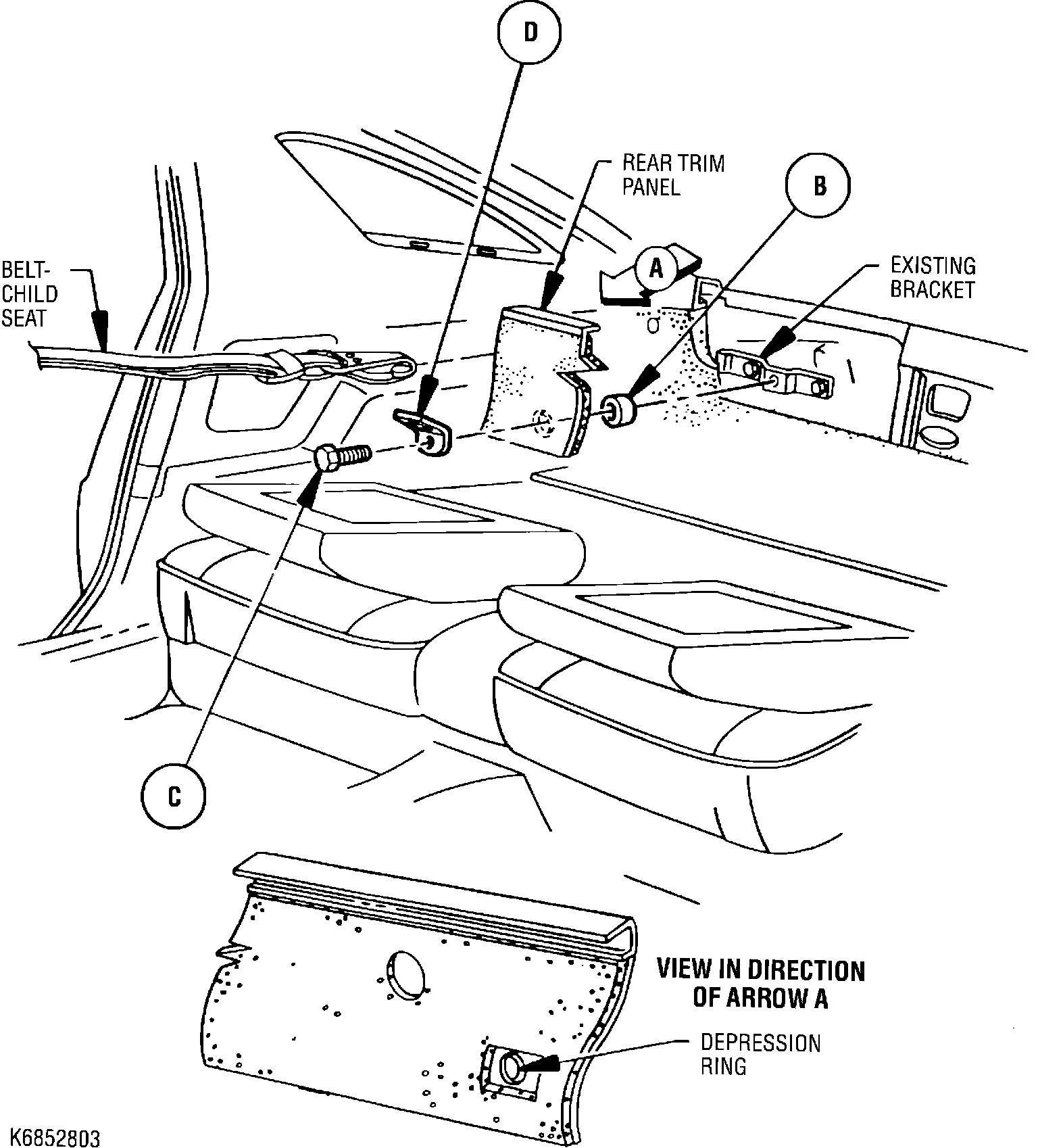

4. While holding the plate as shown in the illustration, tighten the bolt (tighten nut to 250 inch-pounds torque).
