INSTALLATION INSTRUCTIONS

CHILD SEAT TETHER ANCHORAGE

DODGE LANCER AND LANCER ES AND CHRYSLER LE BARON GTS
INSTALLATION INSTRUCTIONS


PACKAGE NO. 4519076

CHILD SEAT TETHER ANCHORAGE PACKAGE

DODGE LANCER AND LANCER ES AND CHRYSLER LeBARON GTS


CAUTION: THIS PACKAGE IS ONLY FOR THE REAR CENTER SEATING POSITION FOR THE 1989 AND LATER MODELS LISTED ABOVE. DO NOT ATTEMPT INSTALLATION IN ANY OTHER VEHICLES. FOLLOW THESE INSTRUCTIONS CAREFULLY AND USE ONLY THE SPECIFIED PARTS.


PACKAGE CONSISTS OF:


Cut Out Description Quantity

A Instructions - Child Seat 1
Tether Anchorage Installation

B Spacer - Child Seat Tether 1
Anchorage

C Bolt - Child Seat Tether 1
Anchorage

D Nut - Child Seat Tether 1
Anchorage

E Reinforcement - Child Seat 1
Tether Anchorage Sealing Washer

F Plate - Child Seat Tether 1
Anchorage


INSTALLATION PROCEDURES

1. Open the hatch and locate the three plastic caps (approximately 30 mm diameter) in the lower trim panel.

2. (NOTE: ONLY USE THE CENTER LOCATION FOR THIS APPLICATION).

Remove the plastic cap.

3. Using a screw driver, push the steel plug out of the sheet metal panel (the plug can be seen through the hole in the trim panel where the plastic cap was removed).

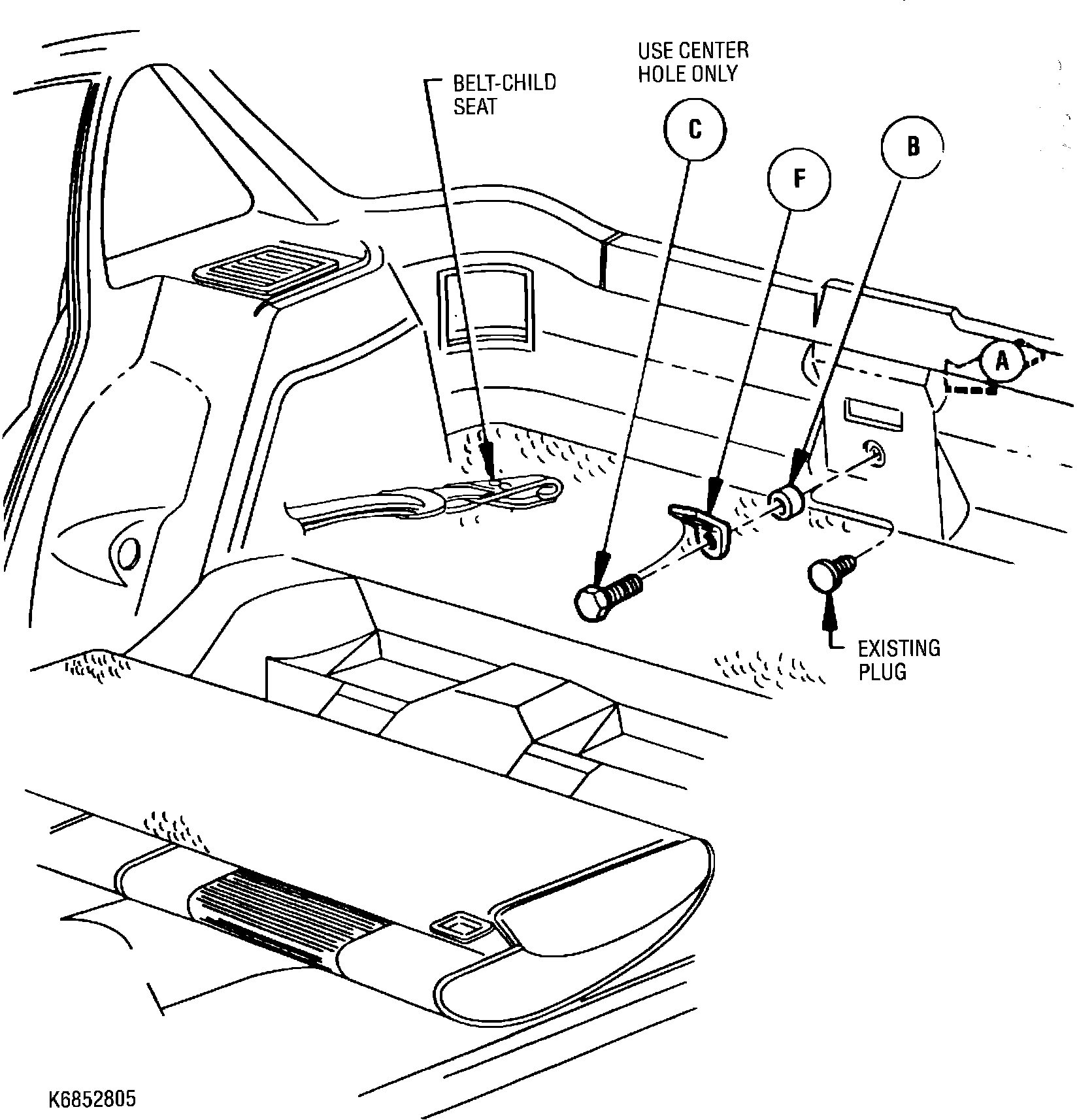

4. Insert the bolt through the plate, spacer, and the hatch opening panel.

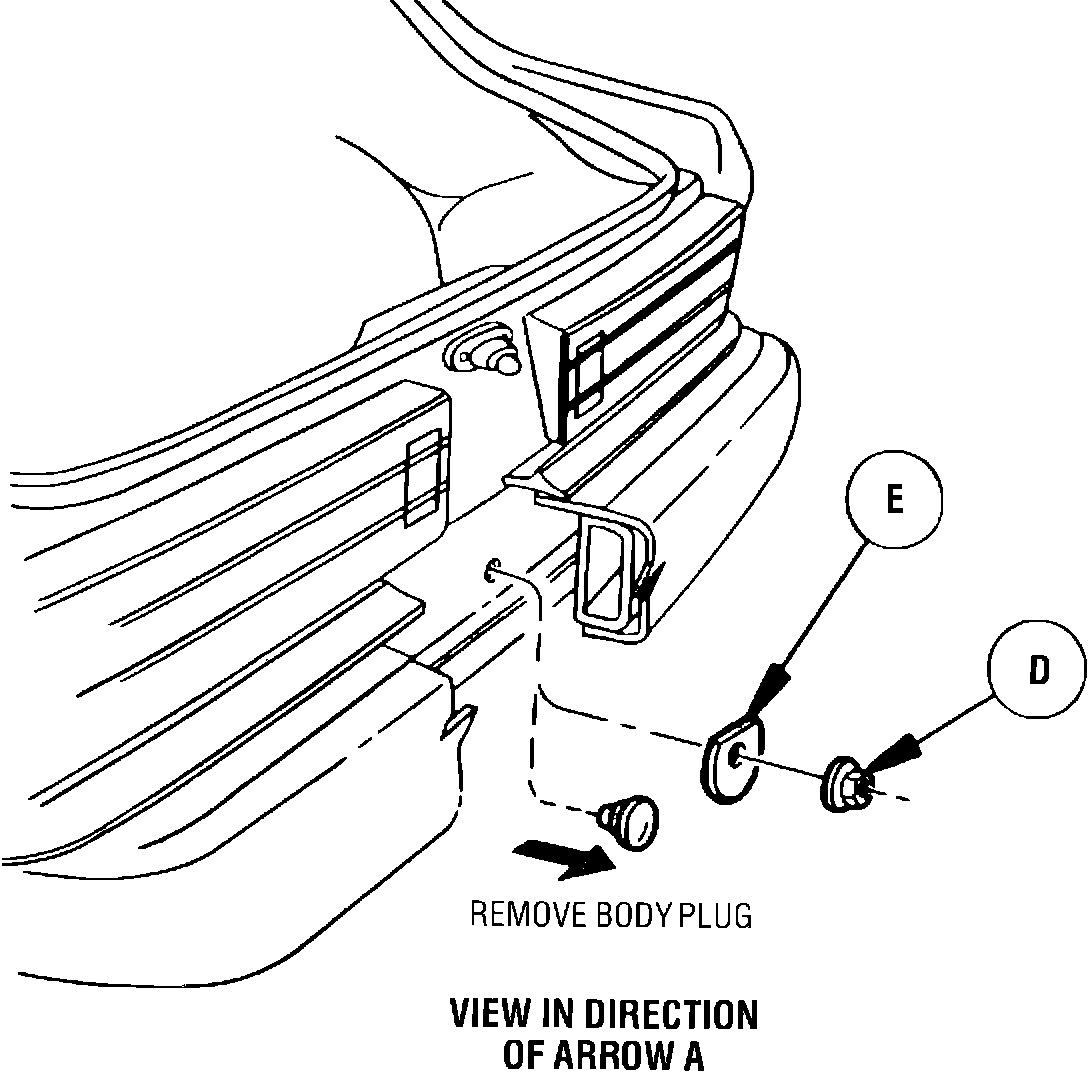

5. From the undersigned of the bumper, place the reinforcement on the bolt and hand tighten the flanged nut (assure that the foam sealer is positioned next to the panel).

6. While holding the plate as shown in the illustration, tighten the flange nut (tighten nut to 250 inch-pounds torque).
