Pkg. No. 4519077

INSTALLATION INSTRUCTIONS CHILD SEAT TETHER ANCHORAGE

CHRYSLER LEBARON, PLYMOUTH CARAVELLE SALON AND

DODGE DIPLOMAT SALON AND

DIPLOMAT S.E., CHRYSLER NEWPORT AND FIFTH AVENUE

EAGLE PREMIER, DODGE ARIES AND PLYMOUTH RELIANT
INSTALLATION INSTRUCTIONS


PACKAGE NO. 4519077

CHILD SEAT TETHER ANCHORAGE

CHRYSLER LeBARON
PLYMOUTH CARAVELLE SALON AND GRAN FURY SALON DODGE DIPLOMAT SALON AND DIPLOMAT S.E. CHRYSLER NEWPORT AND FIFTH AVENUE EAGLE PREMIER
DODGE ARIES AND PLYMOUTH RELIANT


CAUTION: THIS PACKAGE IS ONLY FOR 1989 AND LATER MODELS LISTED ABOVE. DO NOT ATTEMPT INSTALLATION IN ANY OTHER VEHICLES. FOLLOW THESE INSTRUCTIONS CAREFULLY AND USE ONLY THE SPECIFIED PARTS.


PACKAGE CONSISTS OF:


Call Out Description Quantity

A Instructions - Child Seat 1
Tether Anchorage Installation

B Spacer - Child Seat Tether 1
Anchorage

C Bolt - Child Seat Tether 1
Anchorage

D Nut - Child Seat Tether 1
Anchorage

E Reinforcement - Child Seat 1
Tether Anchorage

F Plate - Child Seat Tether 1
Anchorage
INSTALLATION PROCEDURE

1. Locate one of three holes in the shelf panel. (They can be seen by looking through the elliptical slots in the shelf panel reinforcement from inside the trunk.)

2. Insert a sharp pencil through the hole and pierce the carpet covering the shelf panel.

3. Locate (from inside the rear passenger compartment) the access hole in the panel covered by the carpet (this is the area around the pencil tip).

4. Using a sharp knife, remove 30 mm of carpeting around the pencil.

5. Only for: Eagle Premier

Enlarge the 9 mm access hole by cutting the gated tabs on the trim panel.

Only for: Plymouth Caravelle Salon and Gran Fury Salon Dodge Diplomat Salon and Diplomat S.E. Chrysler Newport and Fifth Avenue

With a screw driver, enlarge the 9 mm access hole by separating the 32 mm perforated hole from the shelf trim panel.

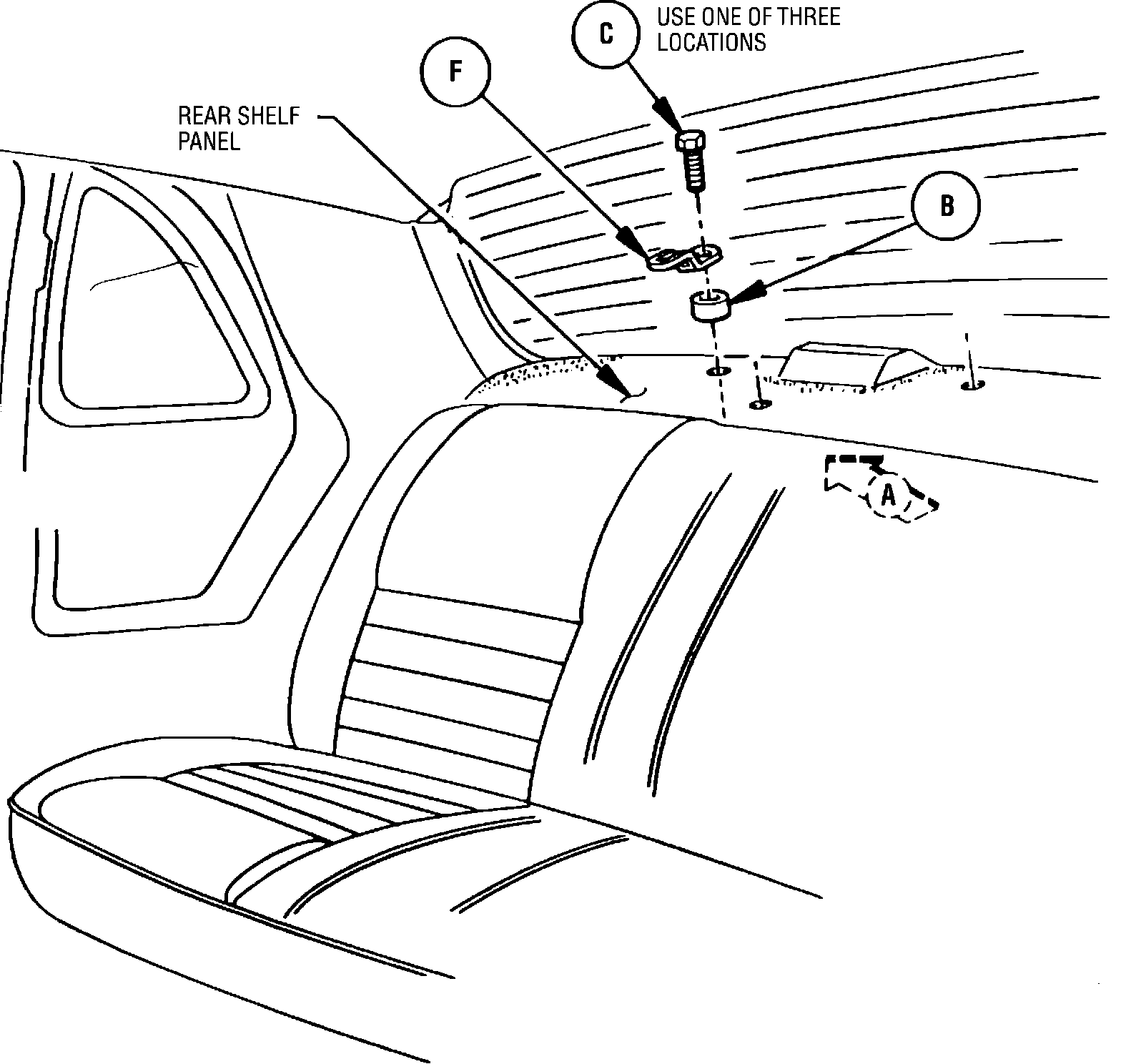

6. Insert the bolt through the plate, spacer, and shelf panel.

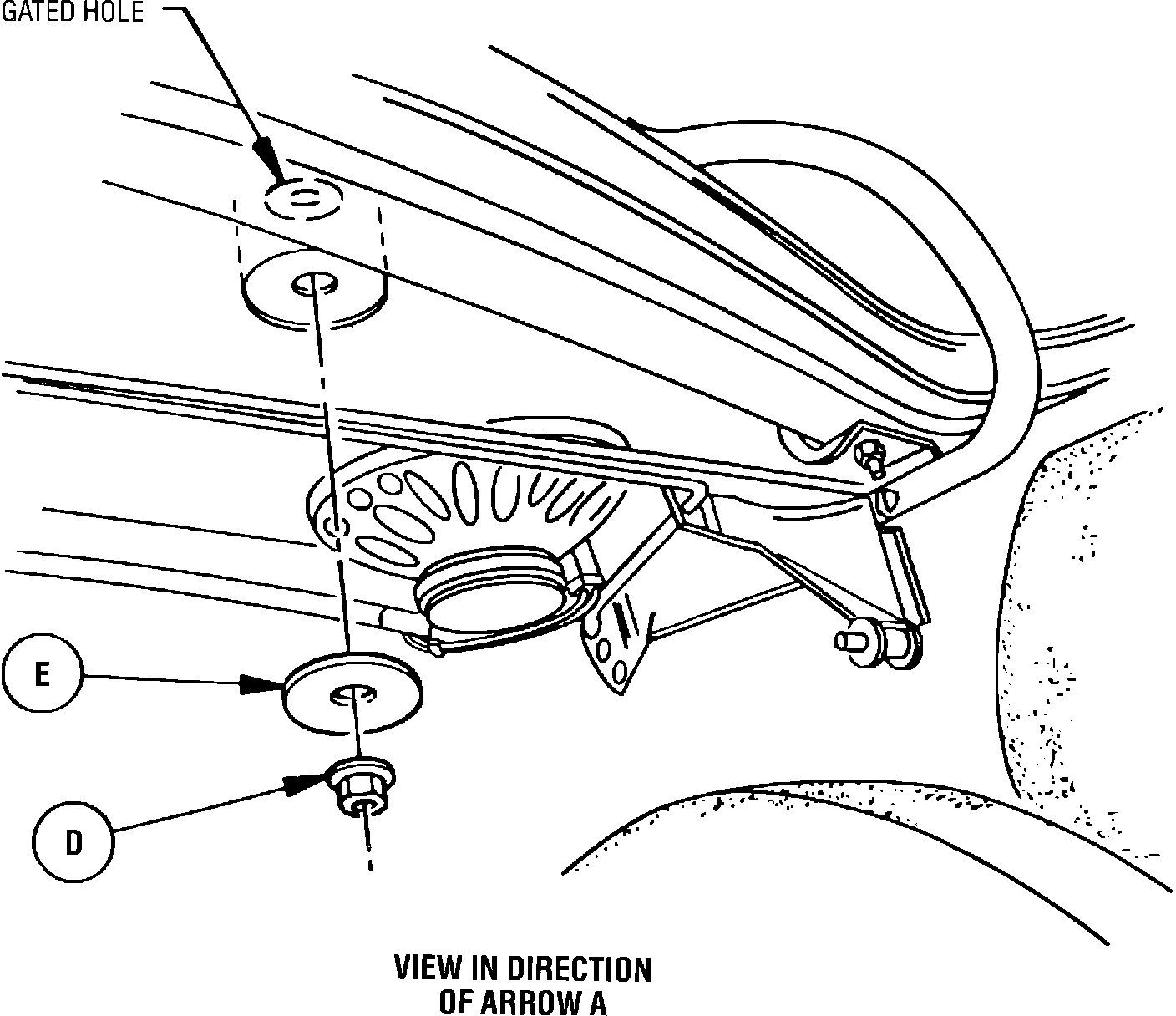

7. From the underside of the shelf panel, place the reinforcement on the bolt and hand tighten the flanged nut.

8. (NOTE: THIS OPERATION REQUIRES THE ASSISTANCE OF ANOTHER PERSON.)

While holding the plate as shown in the illustration, tighten the flange nut (tighten nut to 250 inch-pounds torque).
