Pkg. No. 4519082

INSTALLATION INSTRUCTIONS

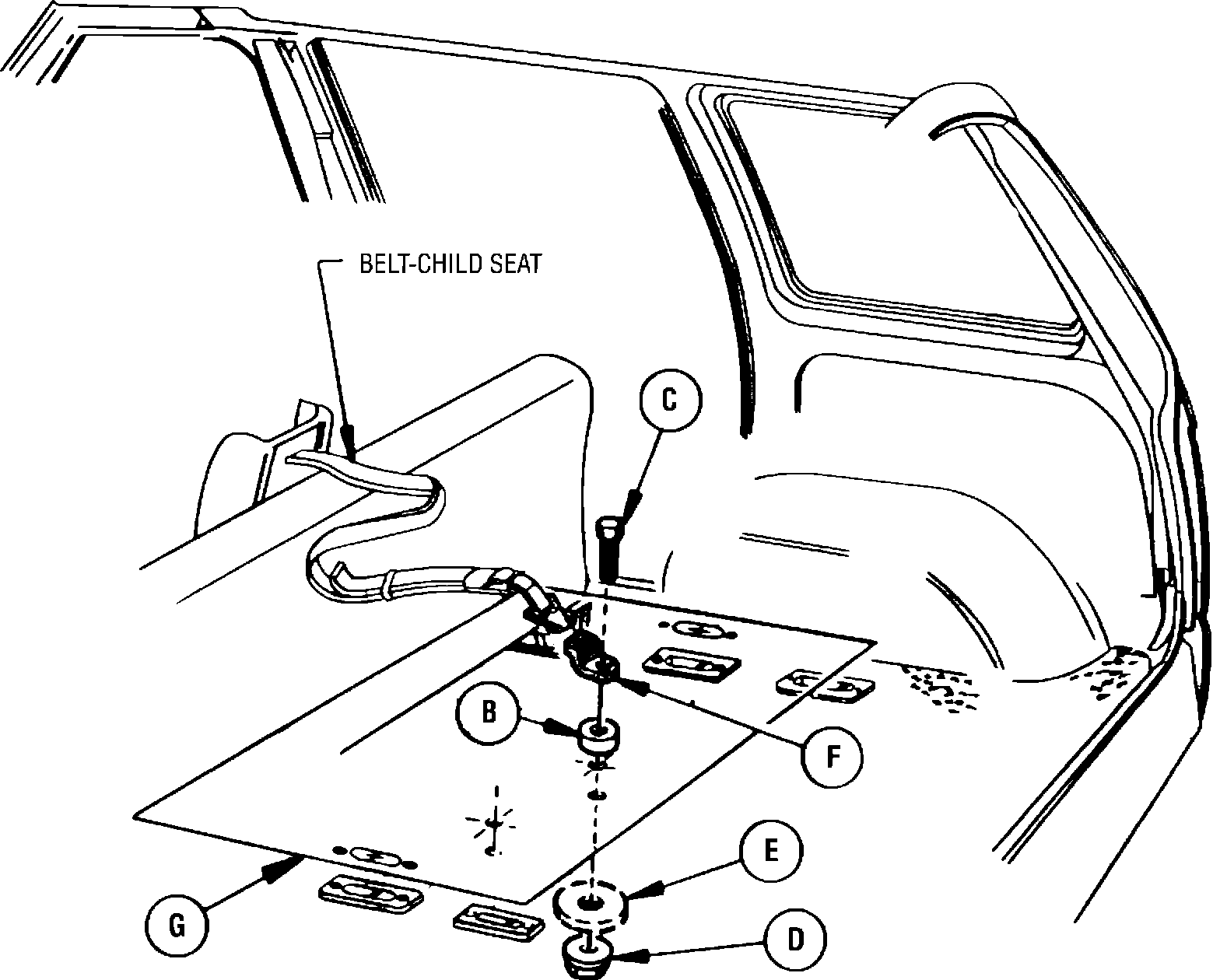

CHILD SEAT TETHER ANCHORAGE

PLYMOUTH VOYAGER AND GRAND VOYAGER

DODGE CARAVAN AND GRAND CARAVAN 7 PASSENGER



INSTALLATION INSTRUCTIONS

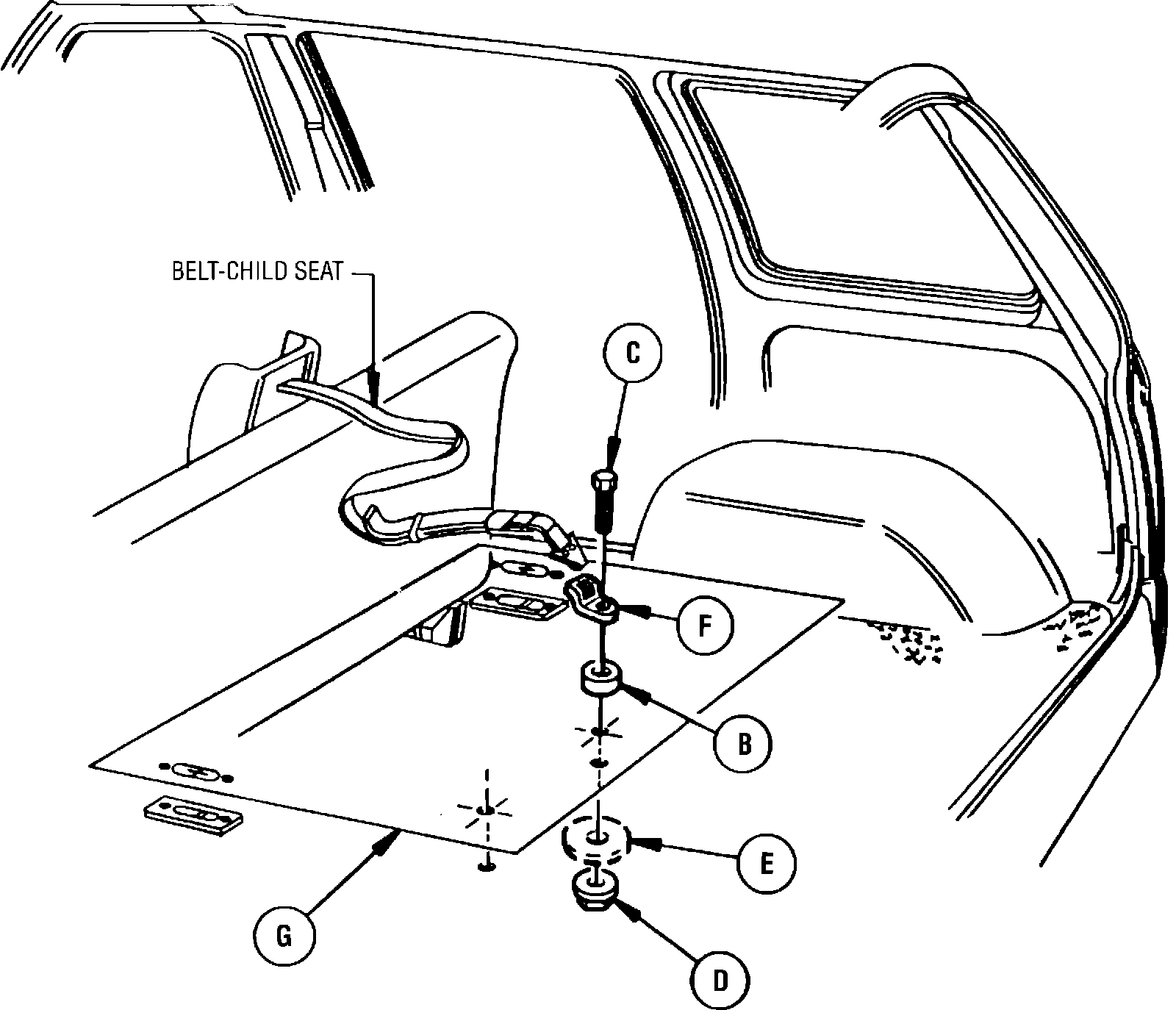

CHILD SEAT TETHER ANCHORAGE

PLYMOUTH VOYAGER AND GRAND VOYAGER

DODGE CARAVAN AND GRAND CARAVAN

5 PASSENGER
INSTALLATION INSTRUCTIONS


PACKAGE NO. 4519082

CHILD SEAT TETHER ANCHORAGE

PLYMOUTH VOYAGER AND GRAND VOYAGER DODGE CARAVAN AND GRAND CARAVAN


CAUTION: THIS PACKAGE IS ONLY FOR 1989 AND LATER MODELS LISTED ABOVE. DO NOT ATTEMPT INSTALLATION IN ANY OTHER VEHICLES. FOLLOW THESE INSTRUCTIONS CAREFULLY AND USE ONLY THE SPECIFIED PARTS.


PACKAGE CONSISTS OF:


Cut Out Description Quantity

A Instructions - Child Seat 1
Anchorage

B Spacer Child Seat Tether 1
Anchorage

C Bolt - Child Seat Tether 1
Anchorage

D Nut - Child Seat Tether 1
Anchorage

E Reinforcement - Child Seat 1
Tether Anchorage Sealing Washer

F Plate - Child Seat Tether 1
Anchorage

G Template - Child Seat Tether 1
Anchorage Locating

INSTALLATION PROCEDURE

1. 5 Passenger Vehicle

Remove the rear seat from the vehicle.

7 Passenger Vehicle.

Remove the second rear seat from the vehicle.

2. Place the template on the floor carpet.

3. 5 Passenger Vehicle

Position the template over the rear attaching cups in the floor pan with the passenger seat removed.

7 Passenger Vehicle

Position the template over the front attaching cups in the floor pan with the passenger seat removed.

4. Locate the center of one of the two anchor locations shown on the template and transfer this location to the carpet.

5. Remove the template.

6. Using a sharp knife, cut a one-inch cross cut in the carpet and carpet underlayment at the transferred mark established in Step 4.

7. Locate the depression (dimple) in the floor pan, located beneath the cross cuts in the carpet.

8. Drill a 9 mm (3/8 inch) hole into the floor at the point marked by the depression.

9. Cut a 25.4 mm (1.00 inch diameter hole in the carpet and underlayment around the hole in the floor pan).

10. Insert the bolt through the plate, spacer, and floor.

11. From the underside of the vehicle, place the reinforcement on the bolt and hand tighten the flanged nut (assure that the sealer side of the reinforcement is placed against the floor).

12. (NOTE: THIS OPERATION REQUIRES THE ASSISTANCE OF ANOTHER PERSON.)

While holding the plate as shown in the illustration, tighten the flange nut (tighten nut to 250 inch-pounds torque).
