Pkg. No. 4519292

INSTALLATION INSTRUCTIONS

CHILD SEAT TETHER ANCHORAGE DODGE SHADOW AND PLYMOUTH SUNDANCE
INSTALLATION INSTRUCTIONS


PACKAGE NO. 4519292

CHILD SEAT TETHER ANCHORAGE PACKAGE

DODGE SHADOW AND PLYMOUTH SUNDANCE


CAUTION: THIS PACKAGE IS ONLY FOR THE REAR SEATING POSITIONS FOR THE 1989 AND LATER MODELS LISTED ABOVE. DO NOT ATTEMPT INSTALLATION IN ANY OTHER VEHICLES. FOLLOW THESE INSTRUCTIONS CAREFULLY AND USE ONLY THE SPECIFIED PARTS.


PACKAGE CONSISTS OF:


Cut Out Description Quantity

A Instructions - Child Seat 1
Tether Anchorage Installation

B Bolt - Child Seat Tether 1
Anchorage

C Nut - Child Seat Tether 1
Anchorage

D Reinforcement - Child Seat 1
Tether Anchorage Sealing Washer

E Plate - Child Seat Tether 1
Anchorage


INSTALLATION PROCEDURES

1. Open the hatch and remove the screws securing the lower trim panel.

2. Remove the trim panel and locate three scored depression rings on the back of panel.

3. Remove the scored slug from the trim panel which is in line with the seating position used for the child seat.

4. Using a sharp knife, remove the carpet covering the hole.

5. Using a screw driver, push the steel plug out of the sheet metal panel.
6. Replace the trim panel and the screws removed in Steps 1 and 2.

7. Insert the bolt through the plate and the hole in the hatch panel.

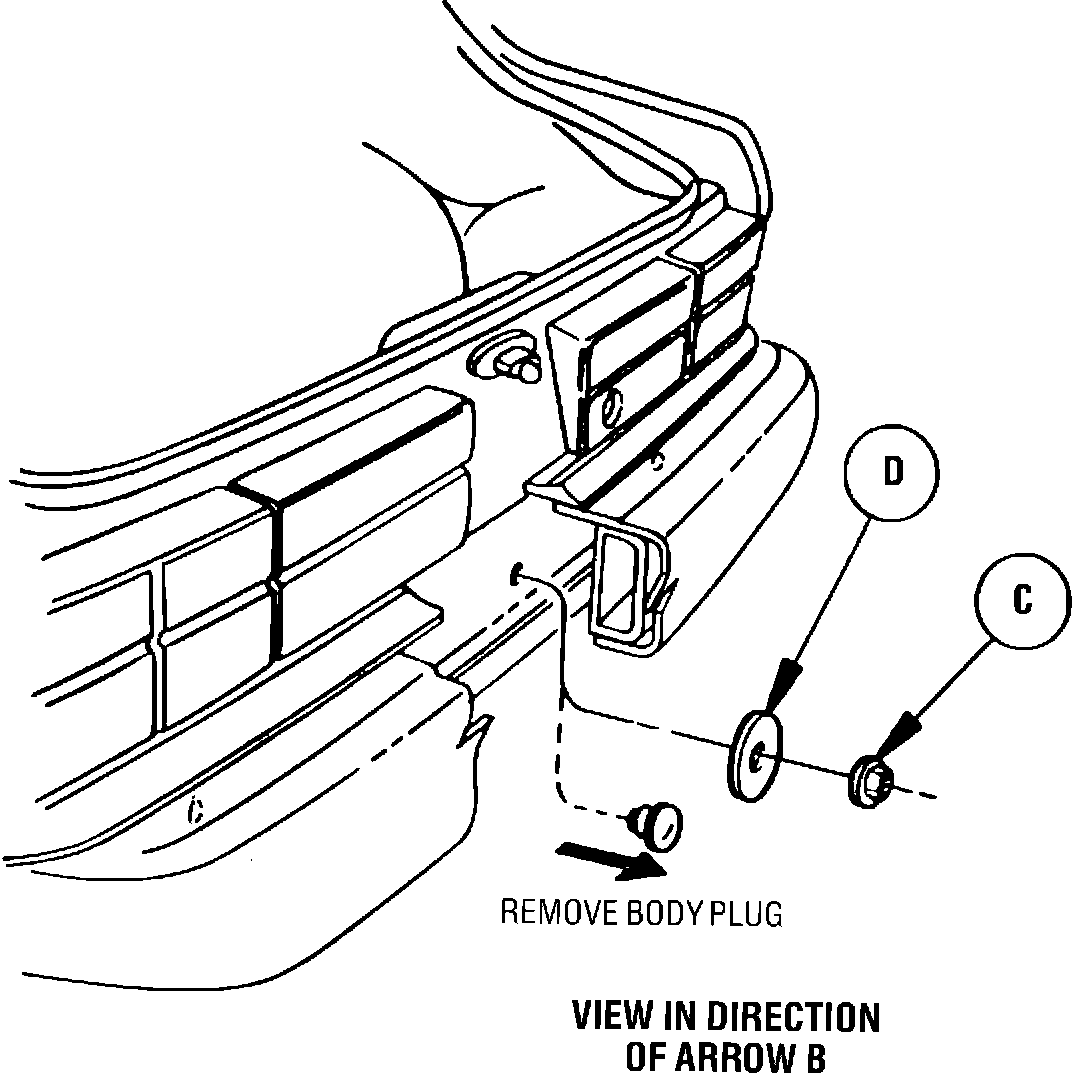

8. From the outside of the vehicle, place the reinforcement on the bolt and hand tighten the flanged nut (assure that the foam sealer is positioned next to the sheet metal panel).

9. While holding the plate as shown in the illustration, tighten the flange nut (tighten nut to 250 inch-pounds torque).
