Power Steering Pump - Production Change

89chrysler09

Models

1989 AH & AP Bodies


Subject

Mid-Year Steering Pump Change


Index

STEERING


Date

May 15, 1989


No.

19-03-89

(C19-03-9)

P-1926



BODY CODE LEGEND

AH - LANCER/LeBARON GTS (4-DOOR HATCHBACK) AP - SHADOW/SUNDANCE


POWER STEERING COMPONENT CHANGE

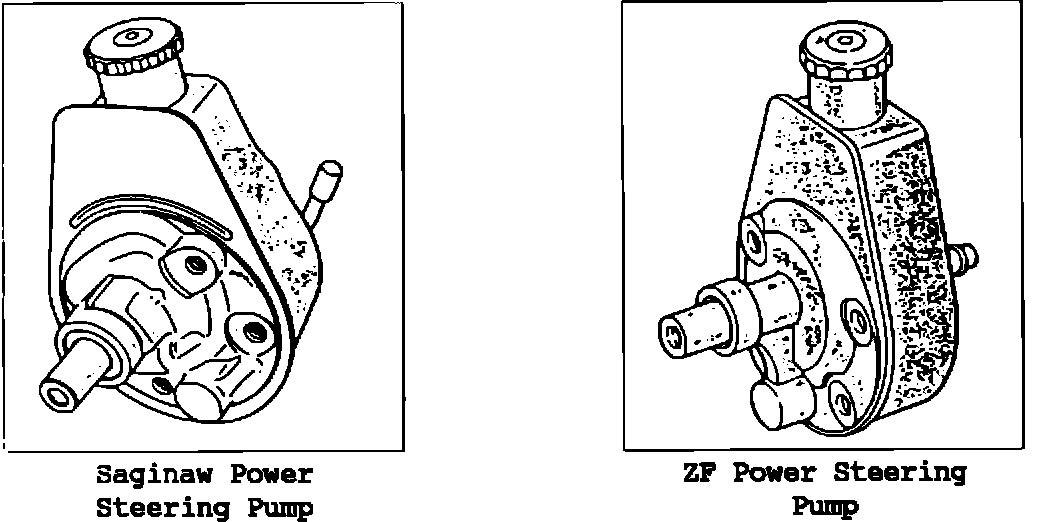

A running change in the supplier of power steering components took place on the AH and AP body vehicles. This change involved the use of the Saginaw Steering Pump in place of the ZF Pump and was implemented on 12/07/88 (MDH). When steering hoses, mounting brackets or pump required, be sure the power steering system is identified correctly before ordering parts. The steering pumps involved in the change are shown below.
