Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1989
>>
Lebaron Coupe L4-135 2.2L SOHC Turbo VIN A FI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Connector Views
>>
Control Switch
Control Switch

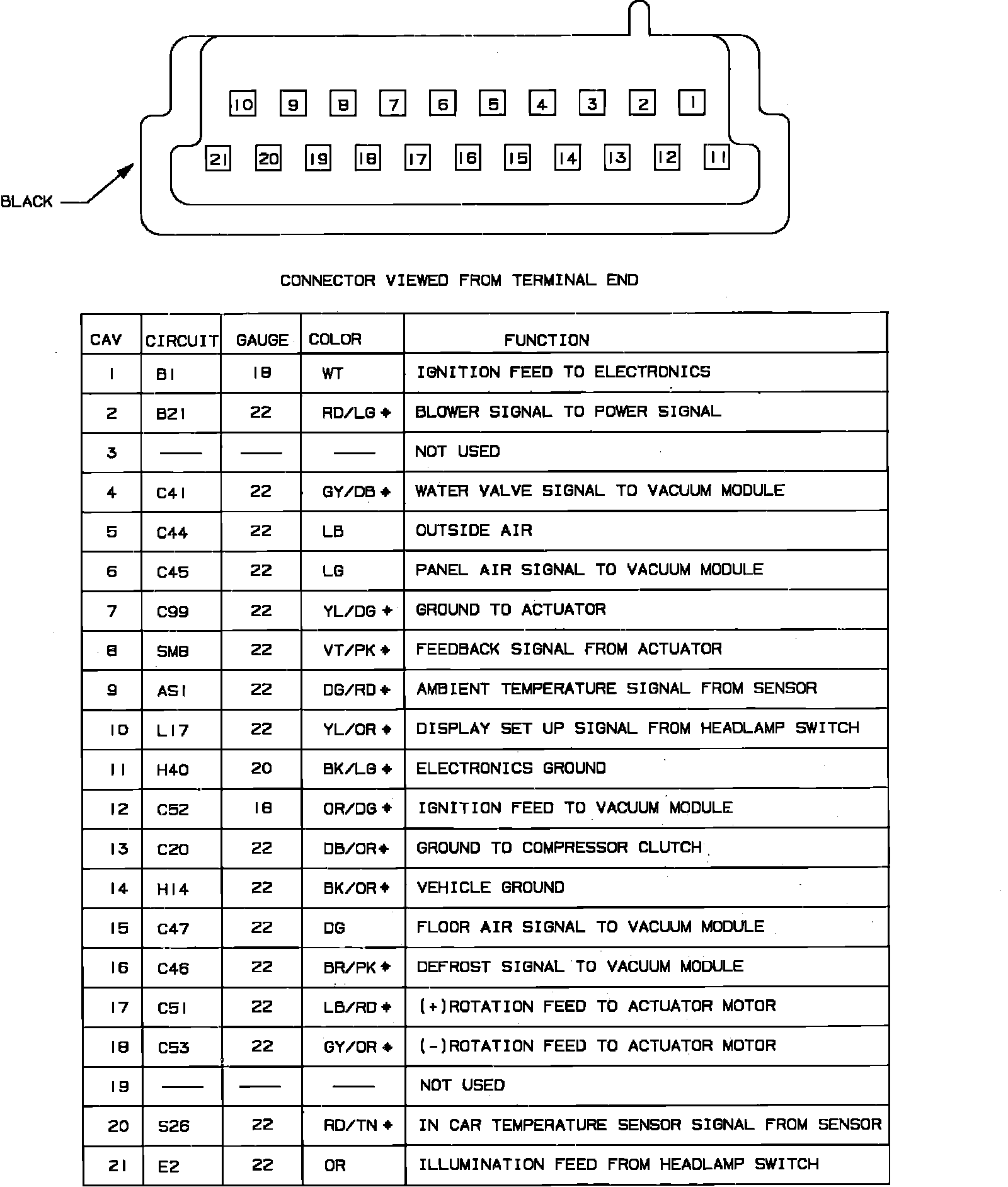

Automatic Temperature Control Switch Connector:
