Chrysler
>>
1989
>>
Lebaron Coupe L4-153 2.5L SOHC Turbo VIN J FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Without Automatic Temperature Control (ATC)
Without Automatic Temperature Control (ATC)

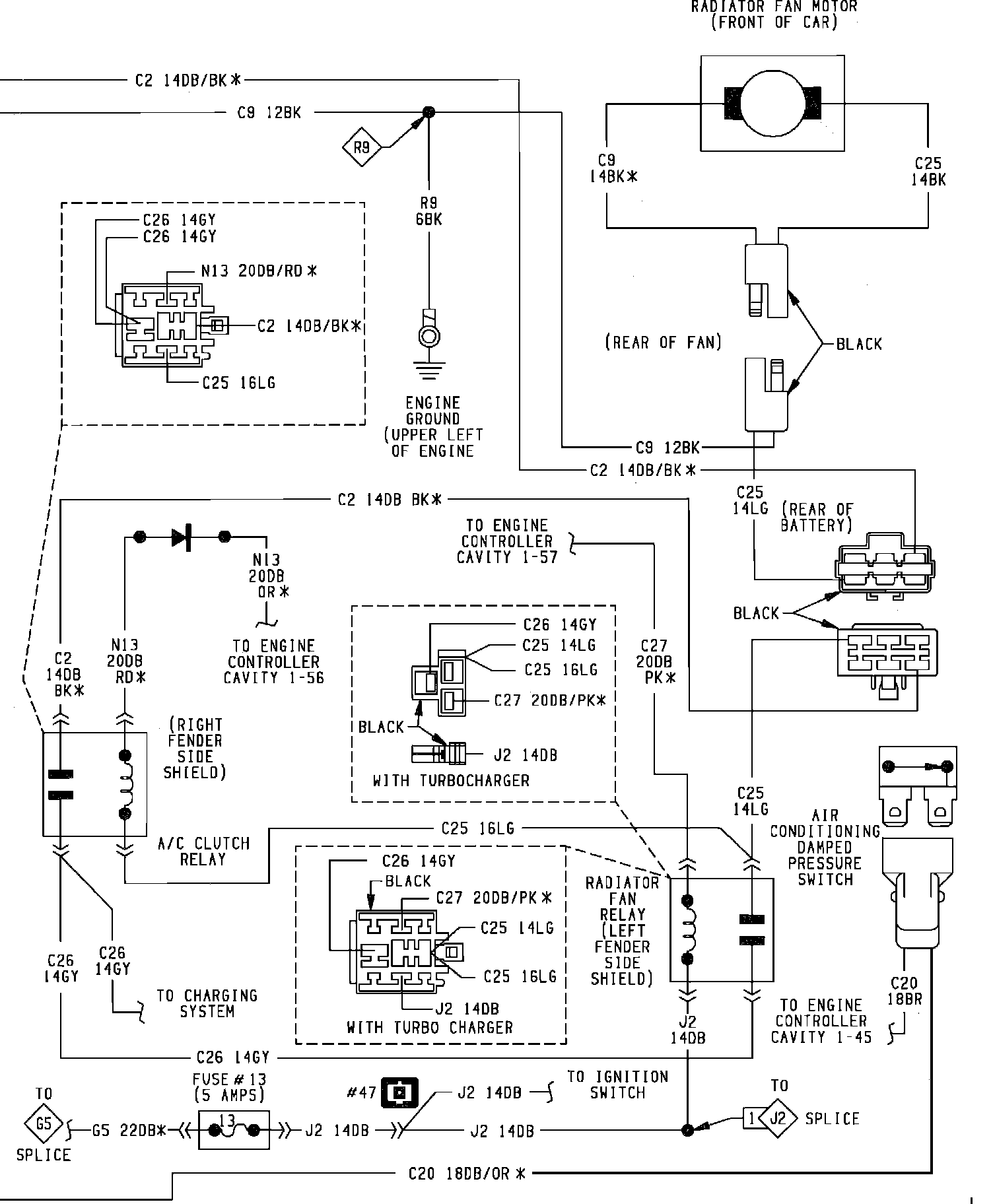

A/C-Heater Wiring Circuit. Less ATC (Part 1 of 2):

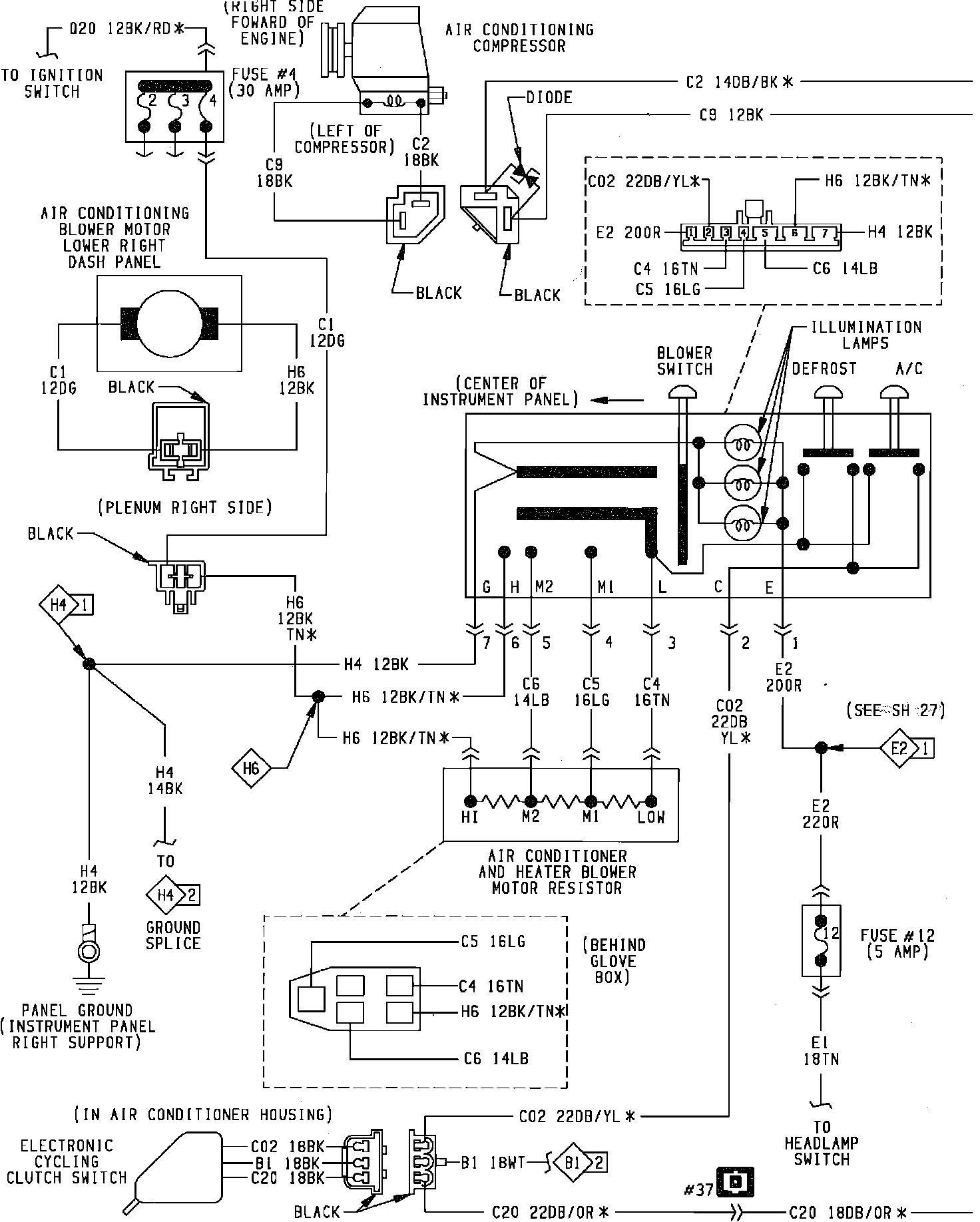

A/C-Heater System Wiring Circuit. Less ATC (Part 2 of 2):
