Active Check Module

Electronic Monitor Wiring Circuit:

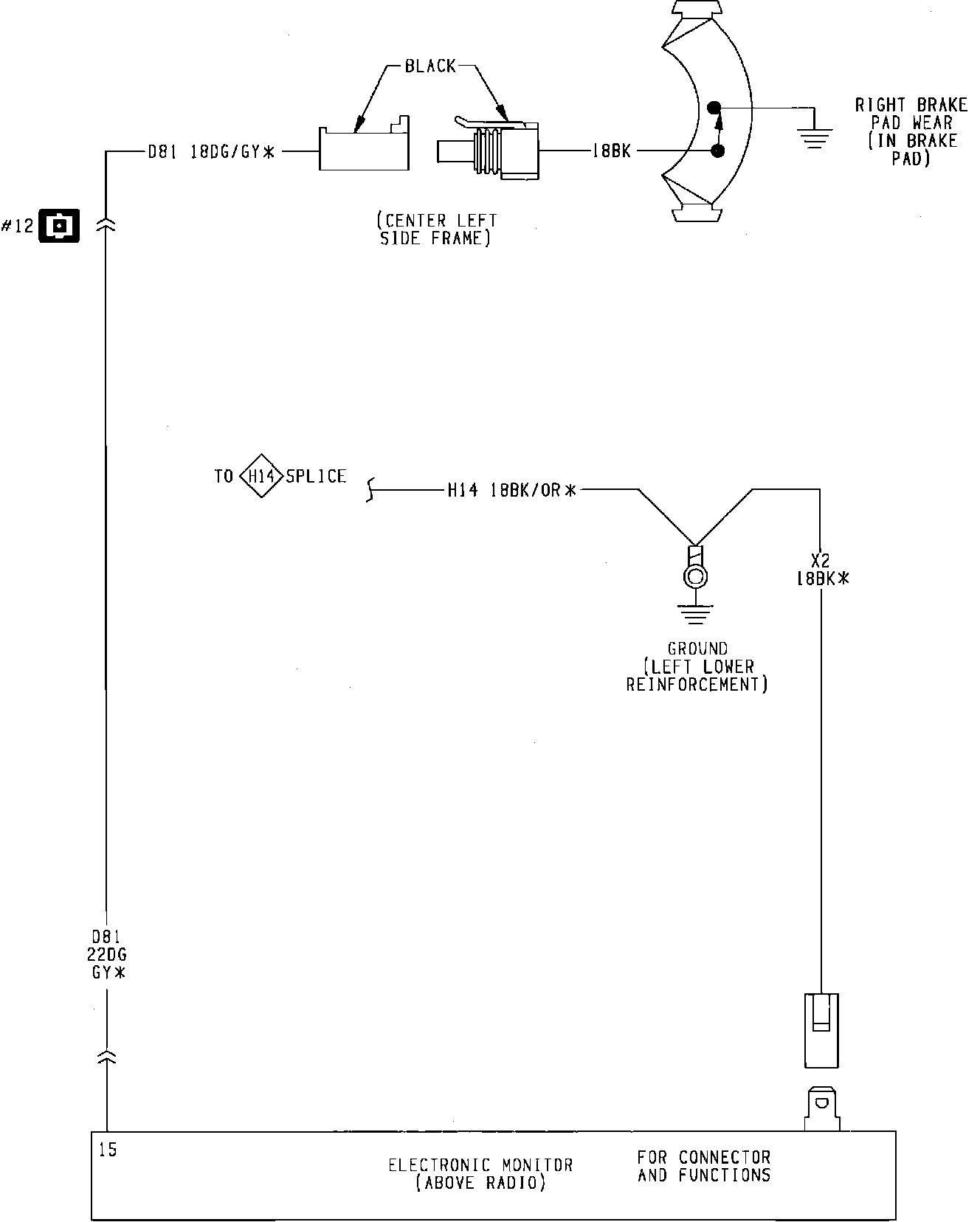

Electronic Monitor Wiring Circuit (Part 1 Of 2):
