Cigarette Lighter

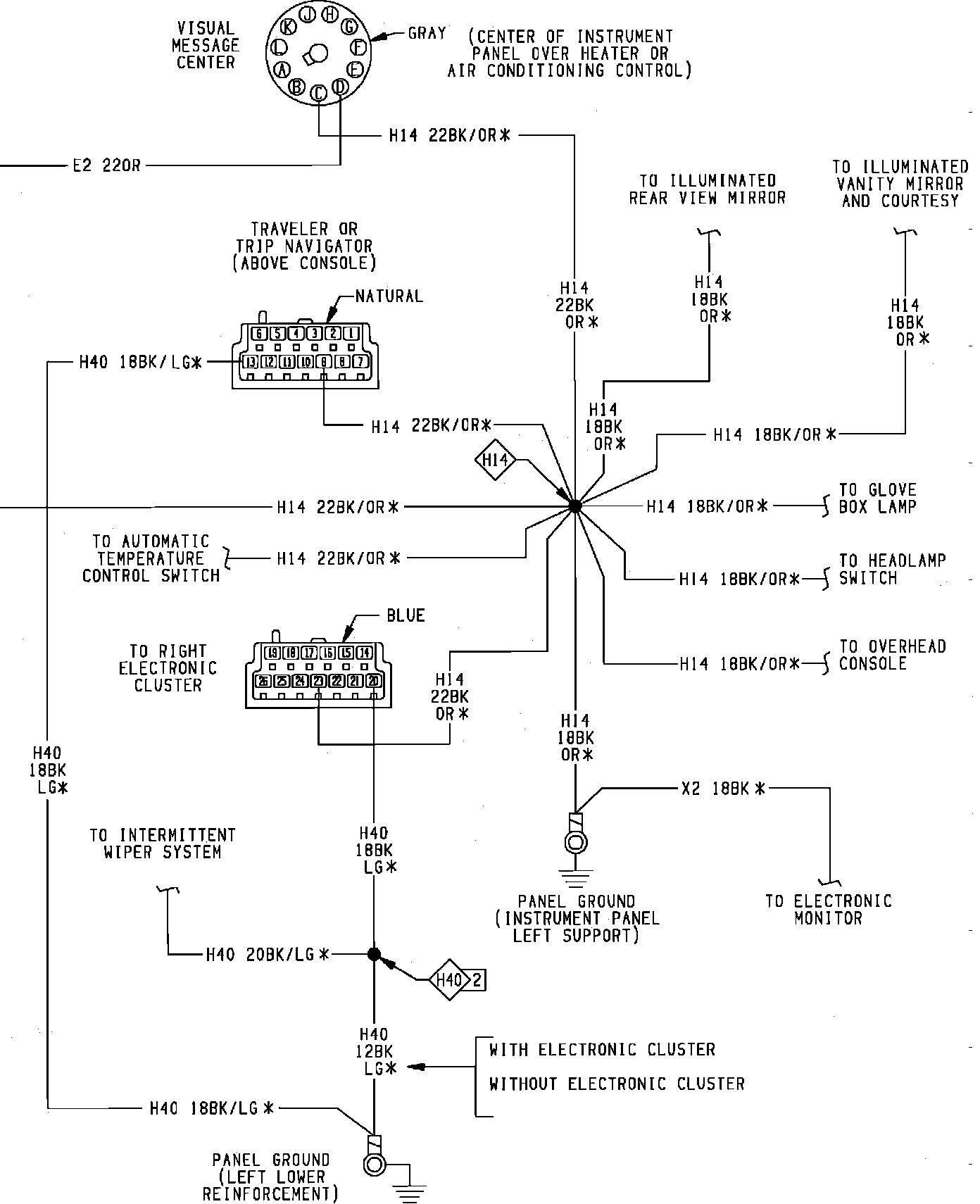

Headlamp Switch, Controlled Interior Lighting & Cigar Lighter Wiring Circuit:

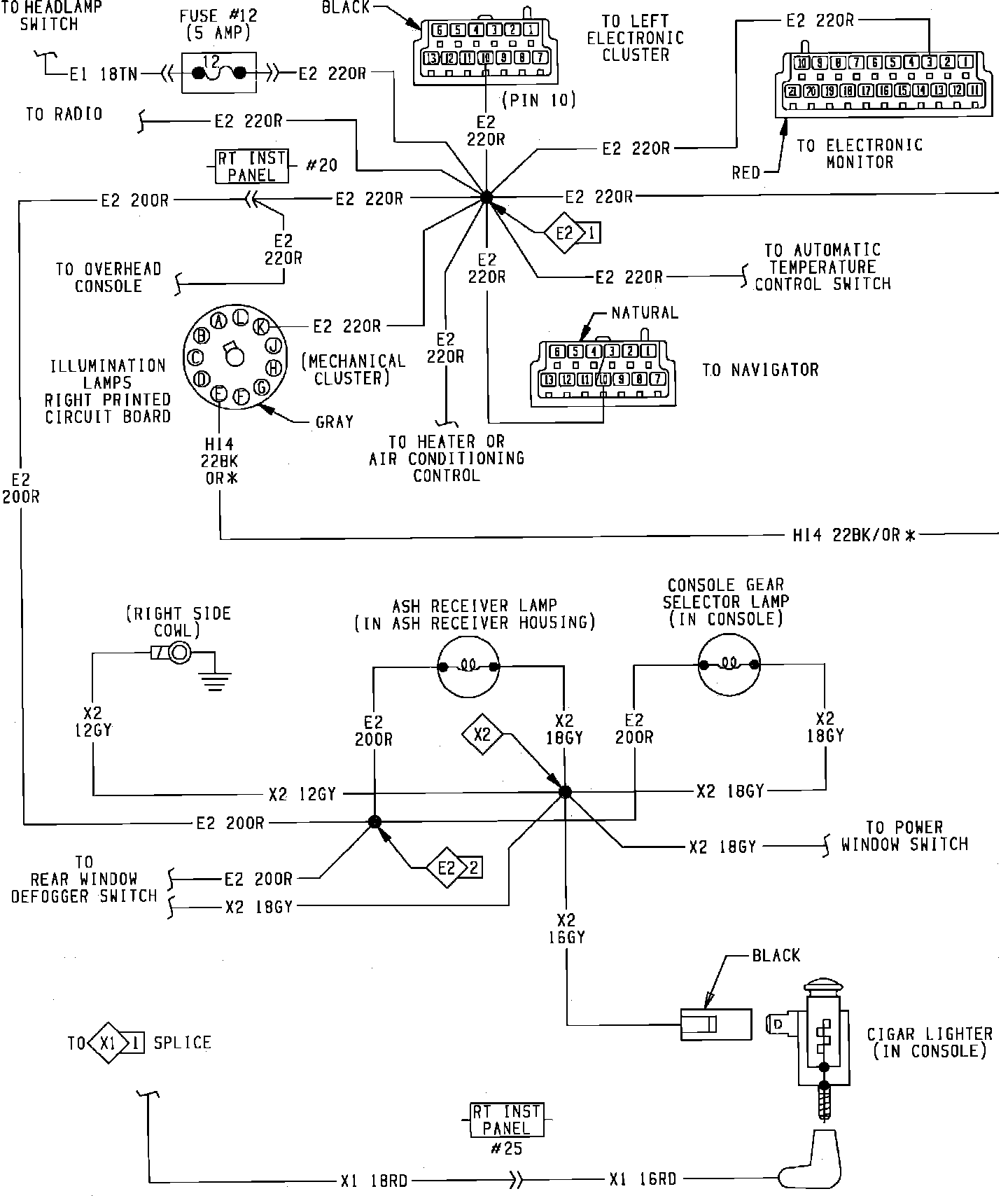

Headlamp Switch, Controlled Interior Lighting & Cigar Lighter Wiring Circuit:
