System Diagram

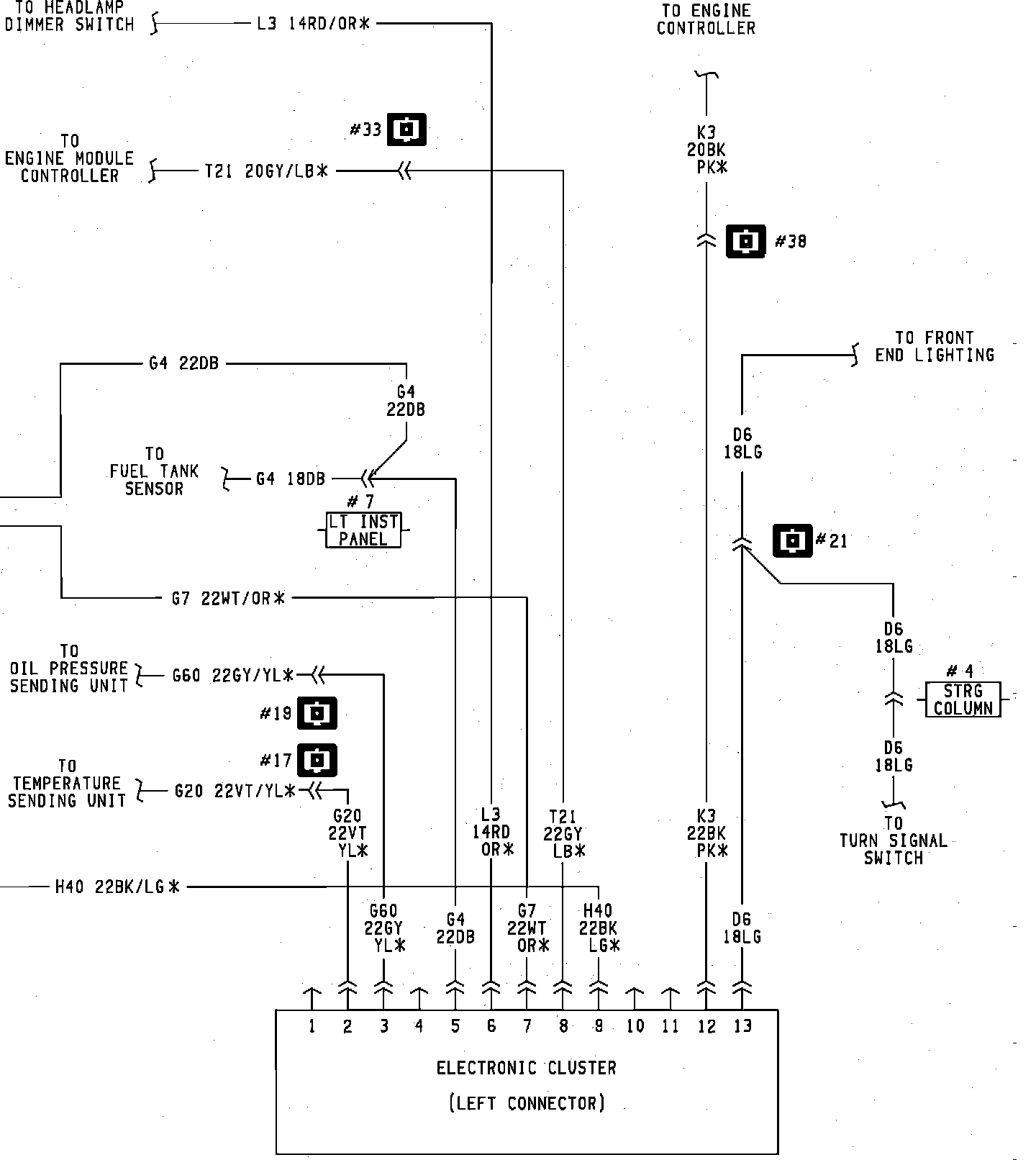

Electronic Cluster, Front Console & Electronic Navigator Wiring Circuit:

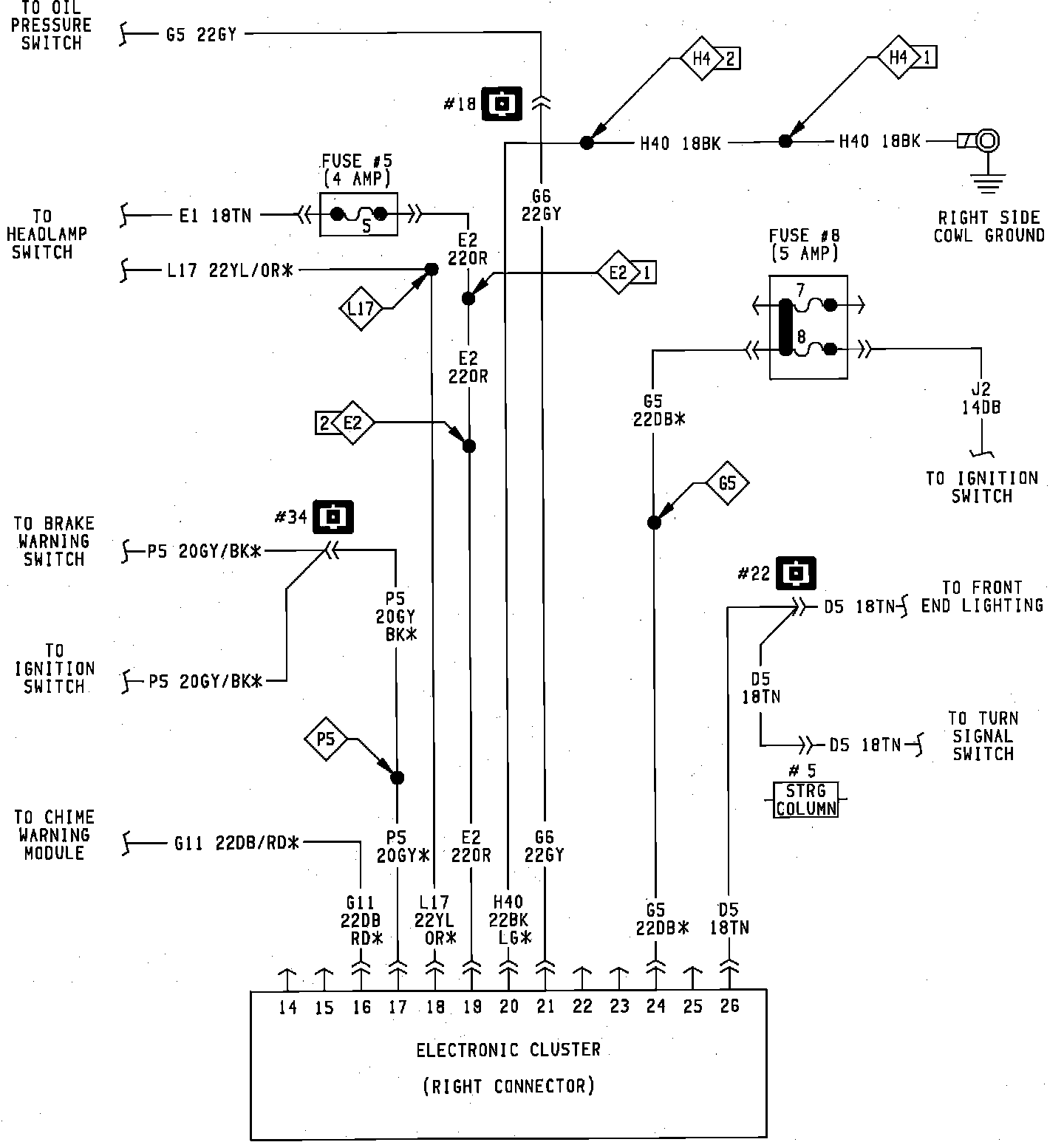

Electronic Cluster, Front Console & Electronic Navigator Wiring Circuit:

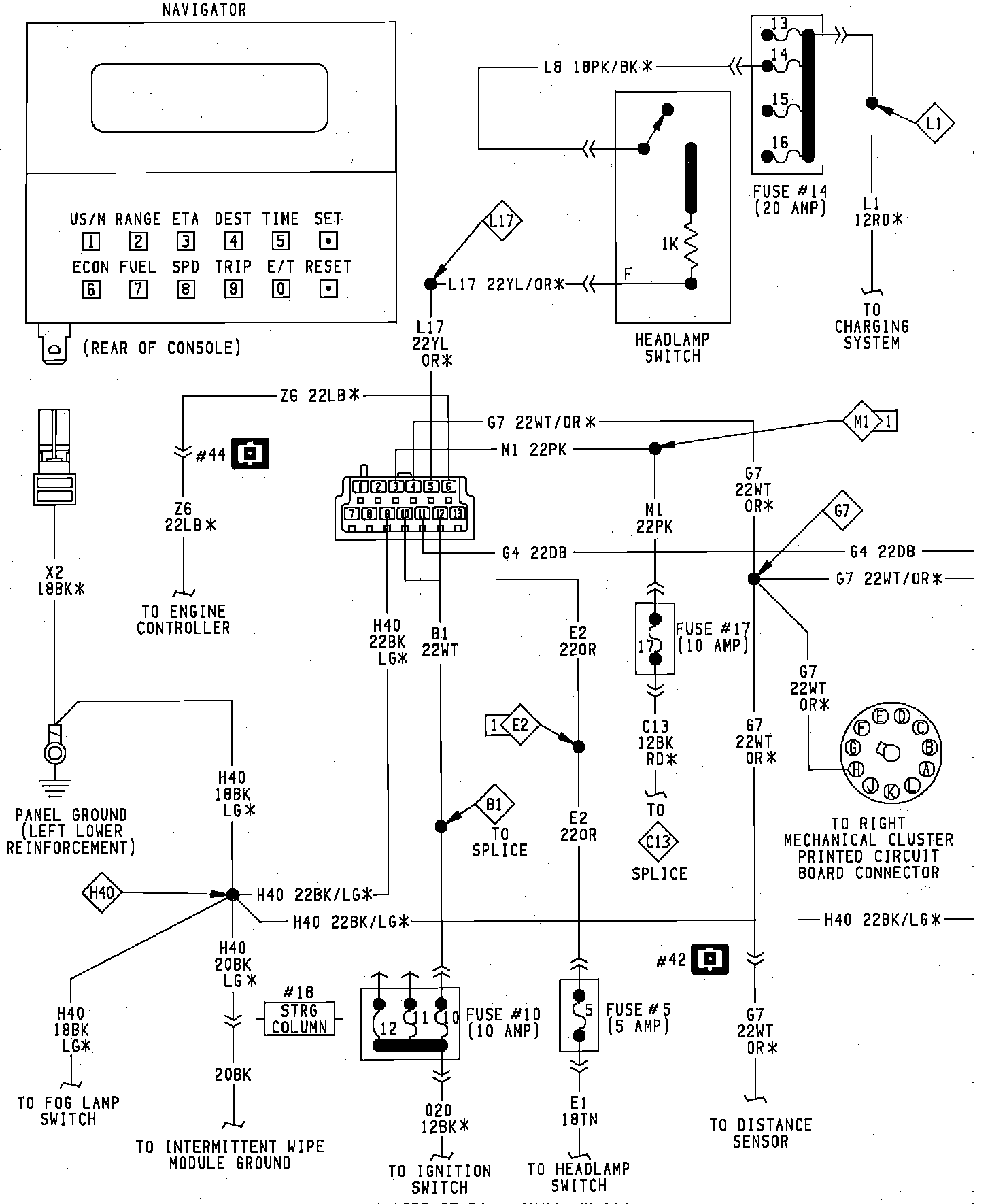

Electronic Cluster, Front Console & Electronic Navigator Wiring Circuit:
