Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1989
>>
Lebaron GTS L4-135 2.2L SOHC Turbo VIN A FI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Air Conditioning System
Air Conditioning System

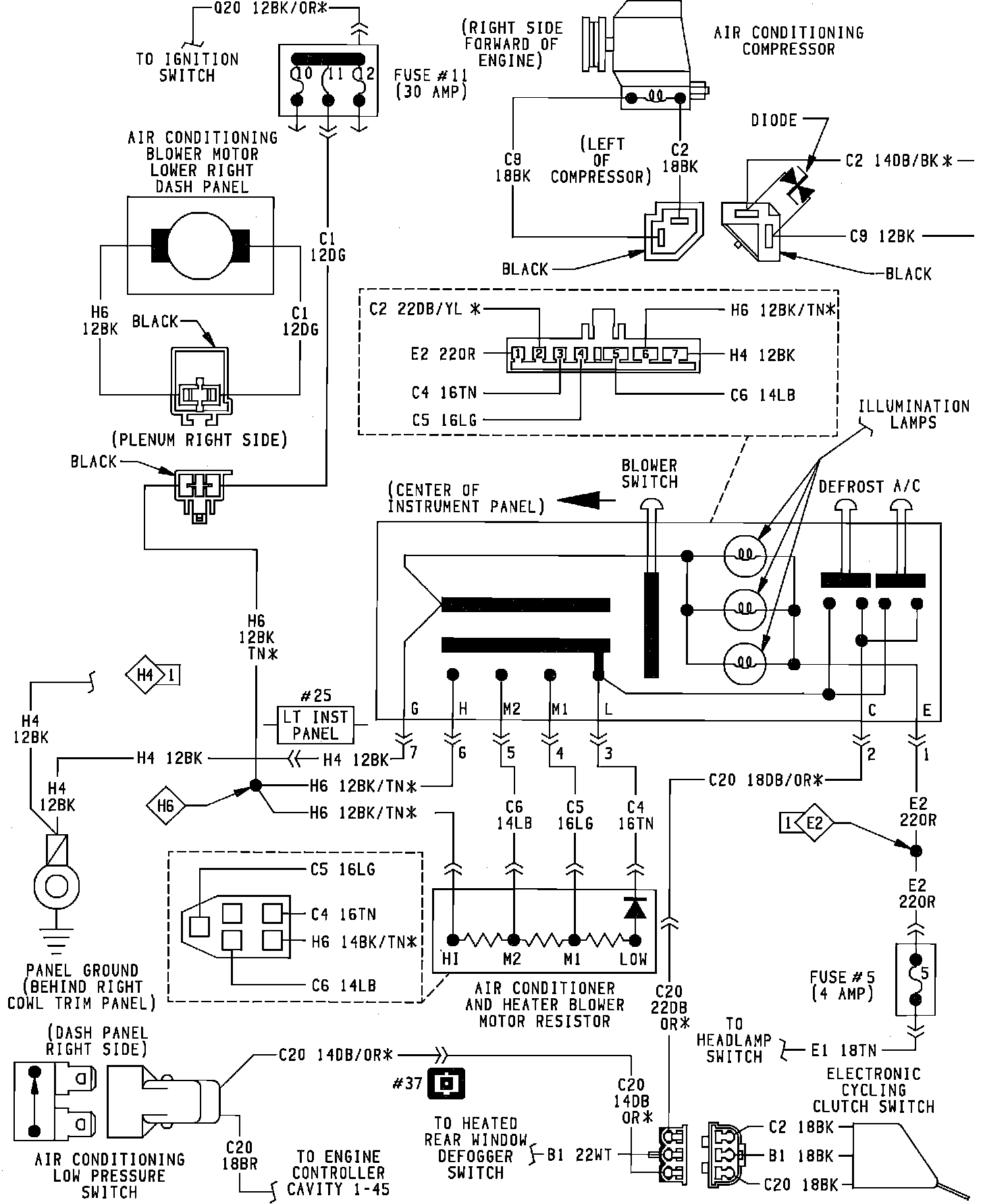

Air Conditioning, Heater, And Cooling Fan Part 1 of 2:

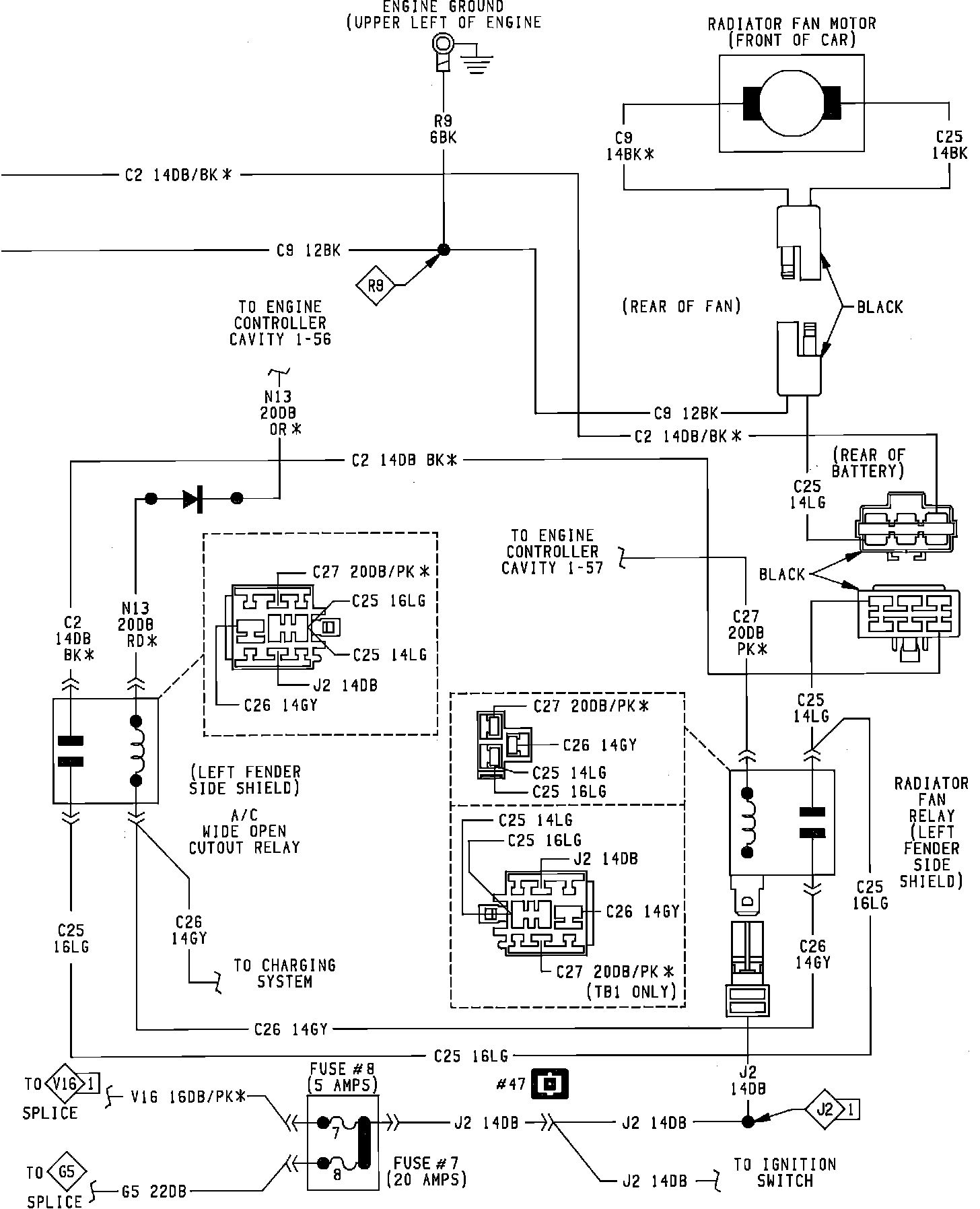

Air Conditioning, Heater, And Cooling Fan Part 2 of 2:
