Left Side
Left Side

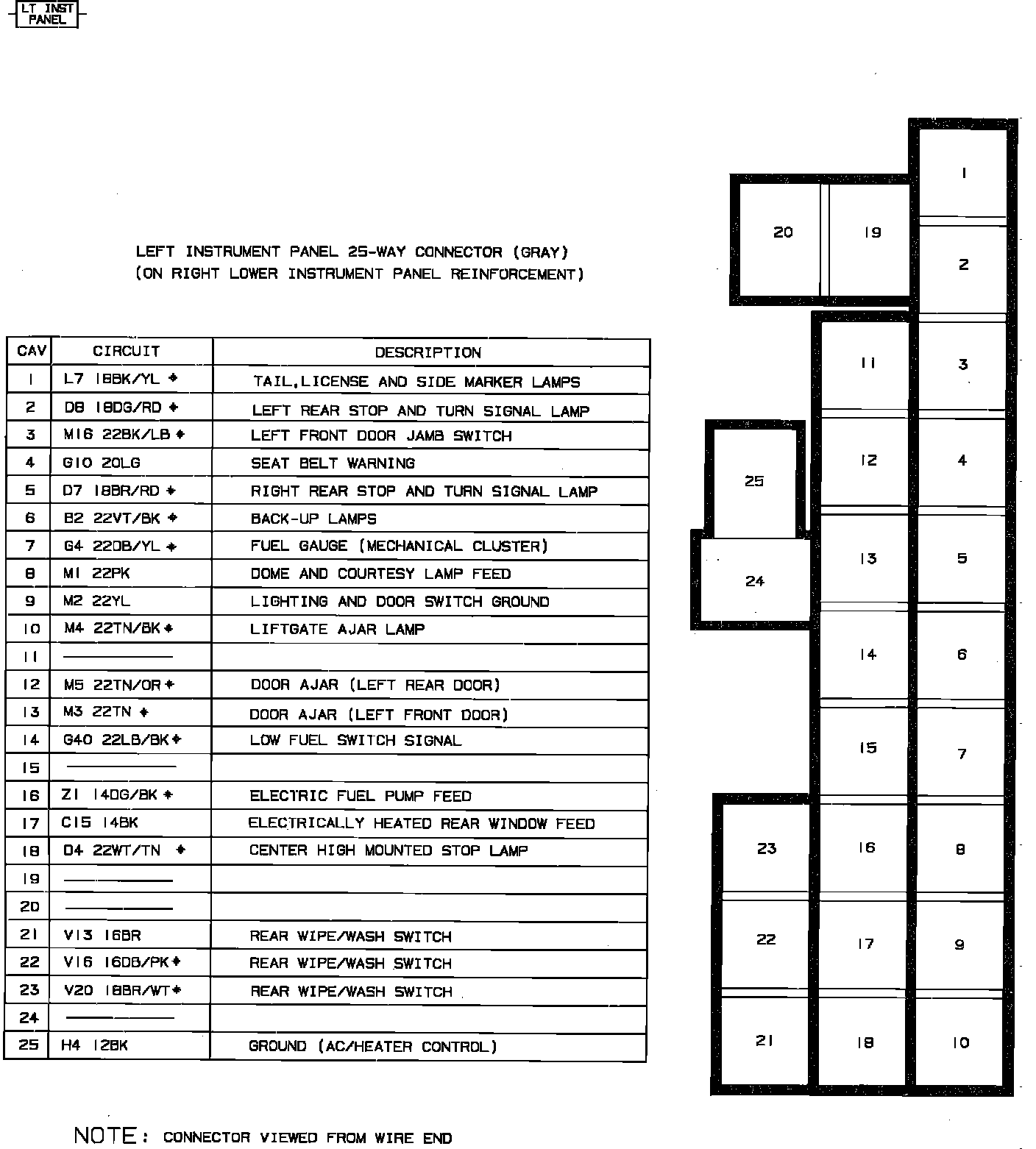

Body To Instrument Panel Connectors, Left Side (Part 1 of 2):

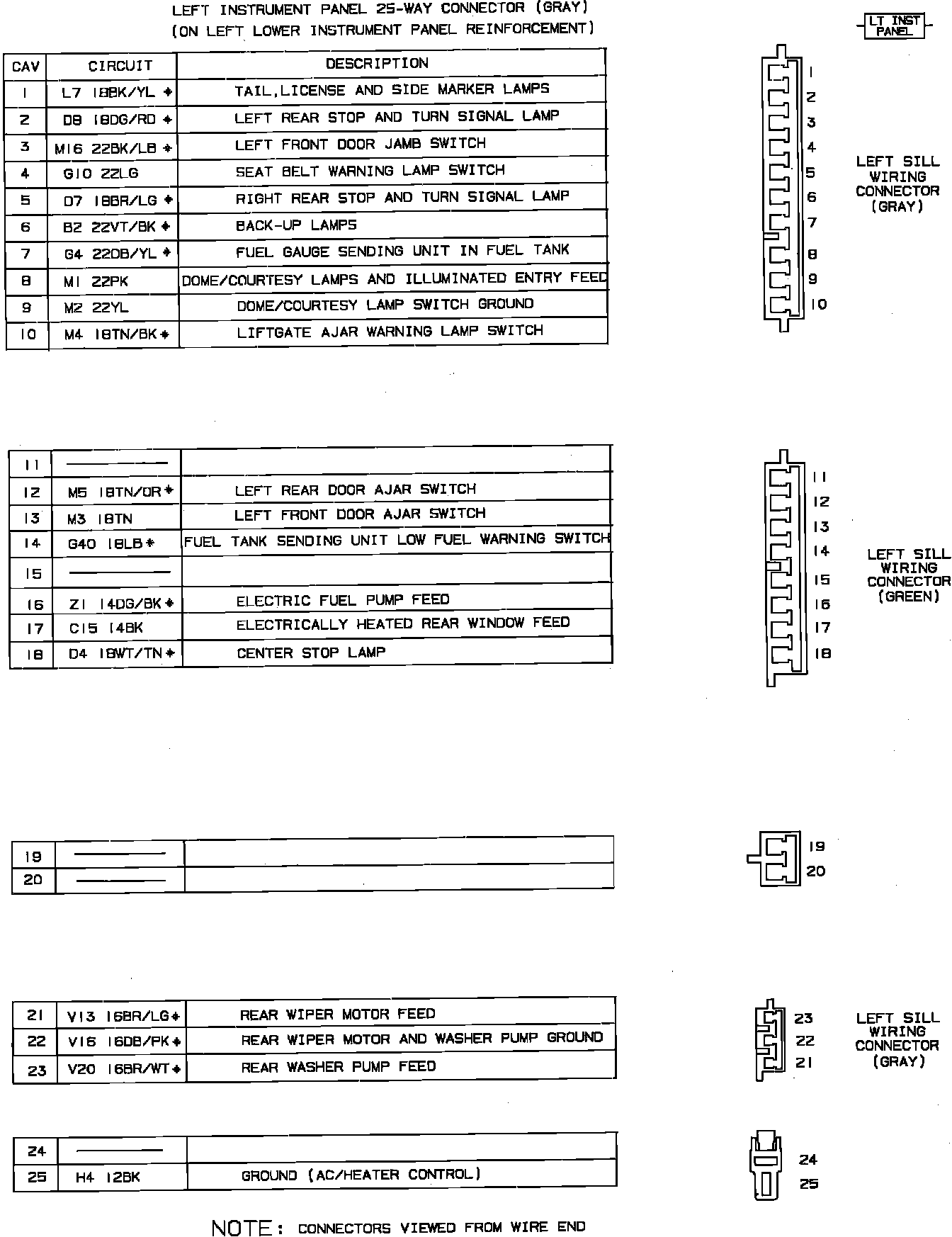

Body To Instrument Panel Connectors, Left Side (Part 2 of 2):
