Turn Signals

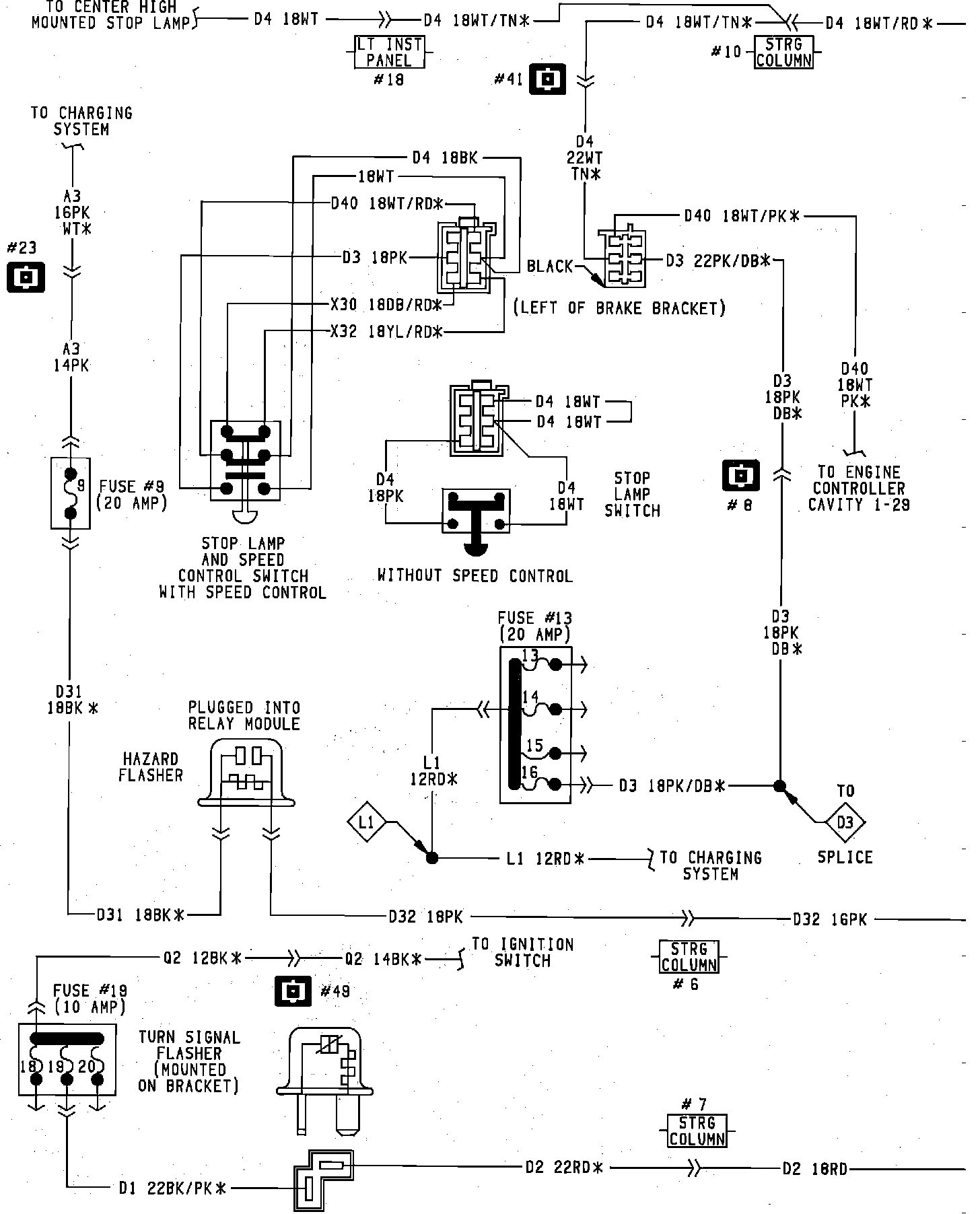

Hazard, Stop & Turn Flasher Wiring Circuit:

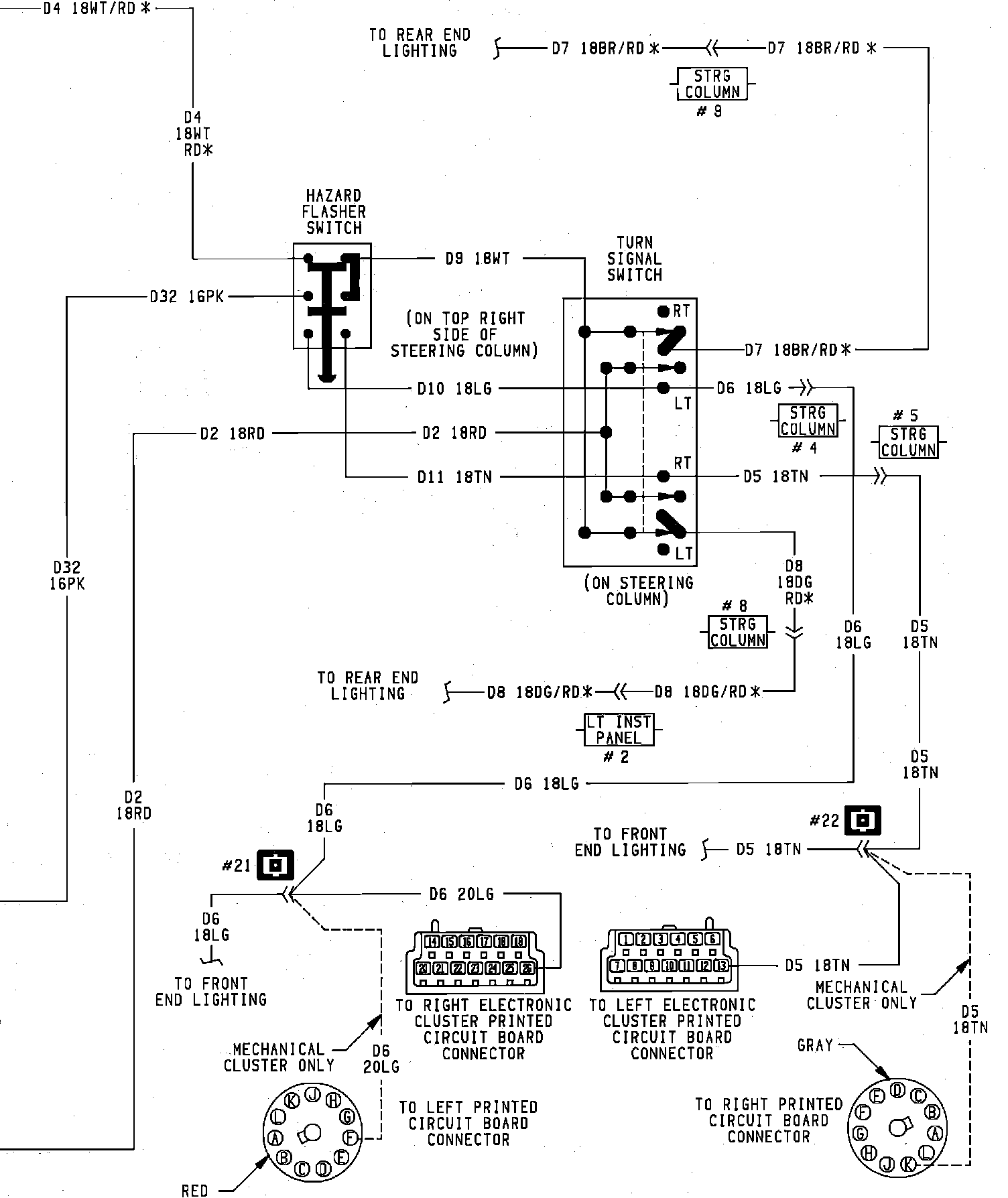

Hazard, Stop & Turn Flasher Wiring Circuit:
