With Intermittent Wiper
With Intermittent Wiper

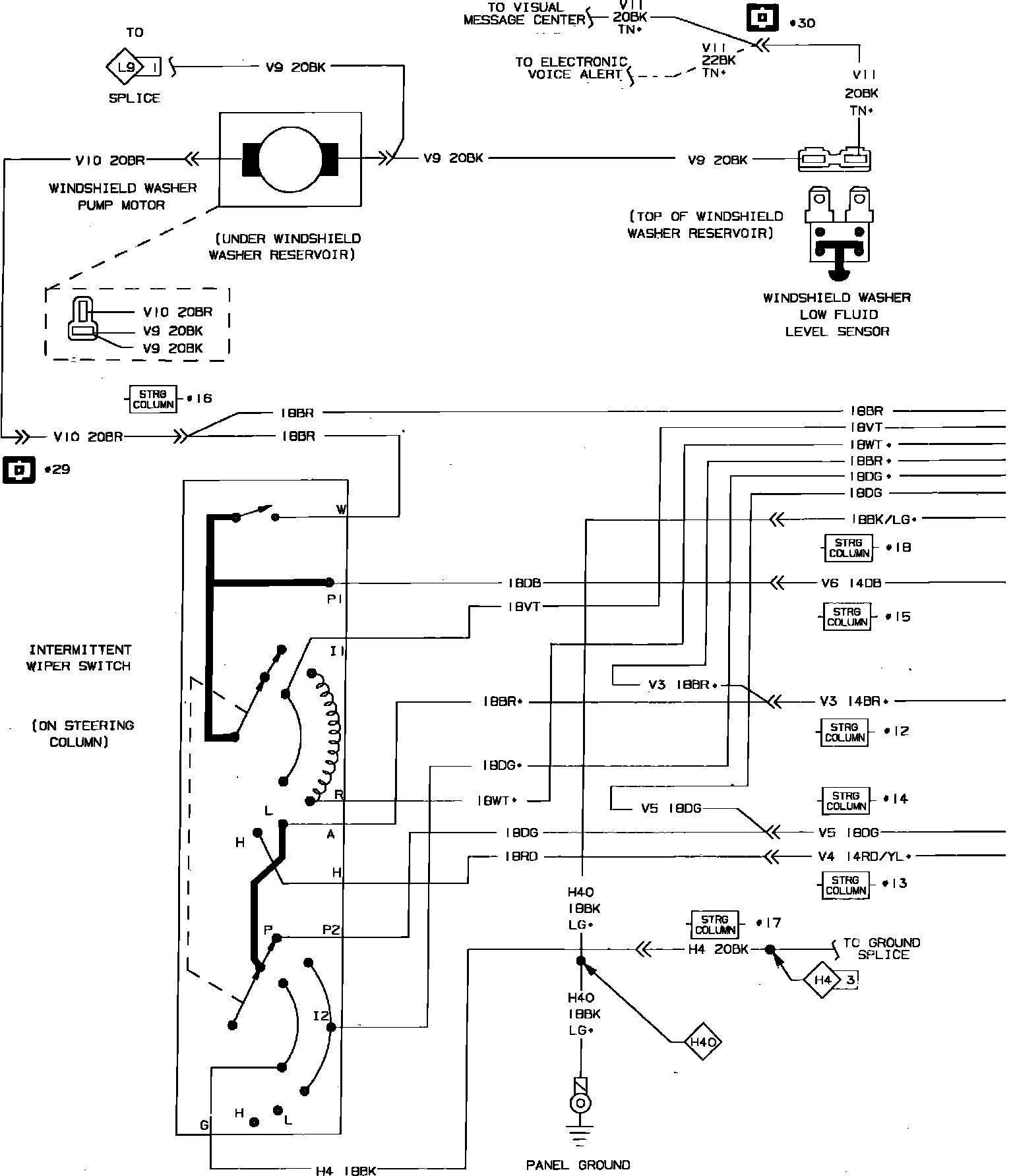

Fig. 58 Wiper System Wiring Circuit (Part 1 of 2). With Intermittent:
Windshield Wiper System Wiring Circuit, With Intermittent (Part 1 of 2):
