Right Side
Right Side

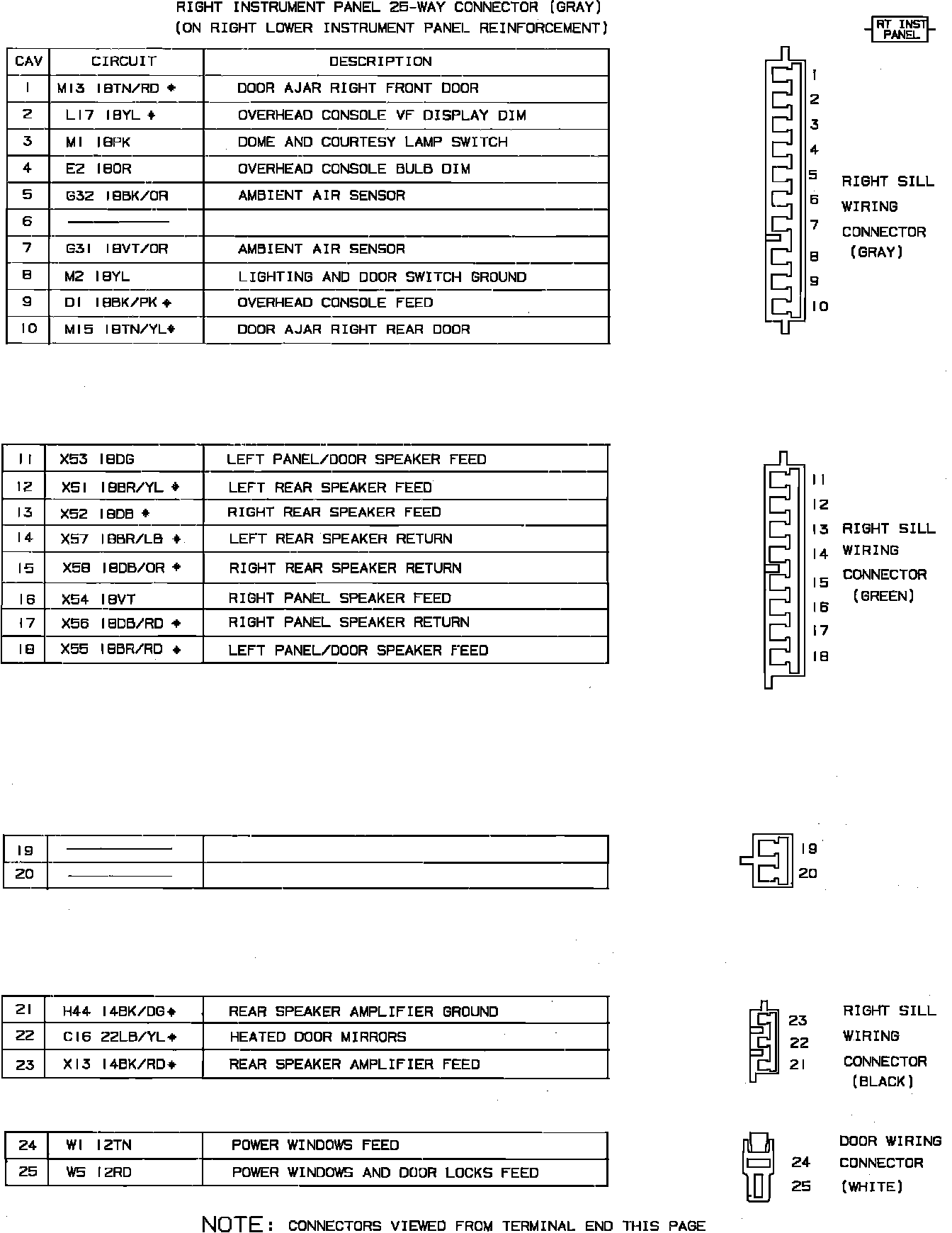

Body To Instrument Panel Connectors. Right Side:

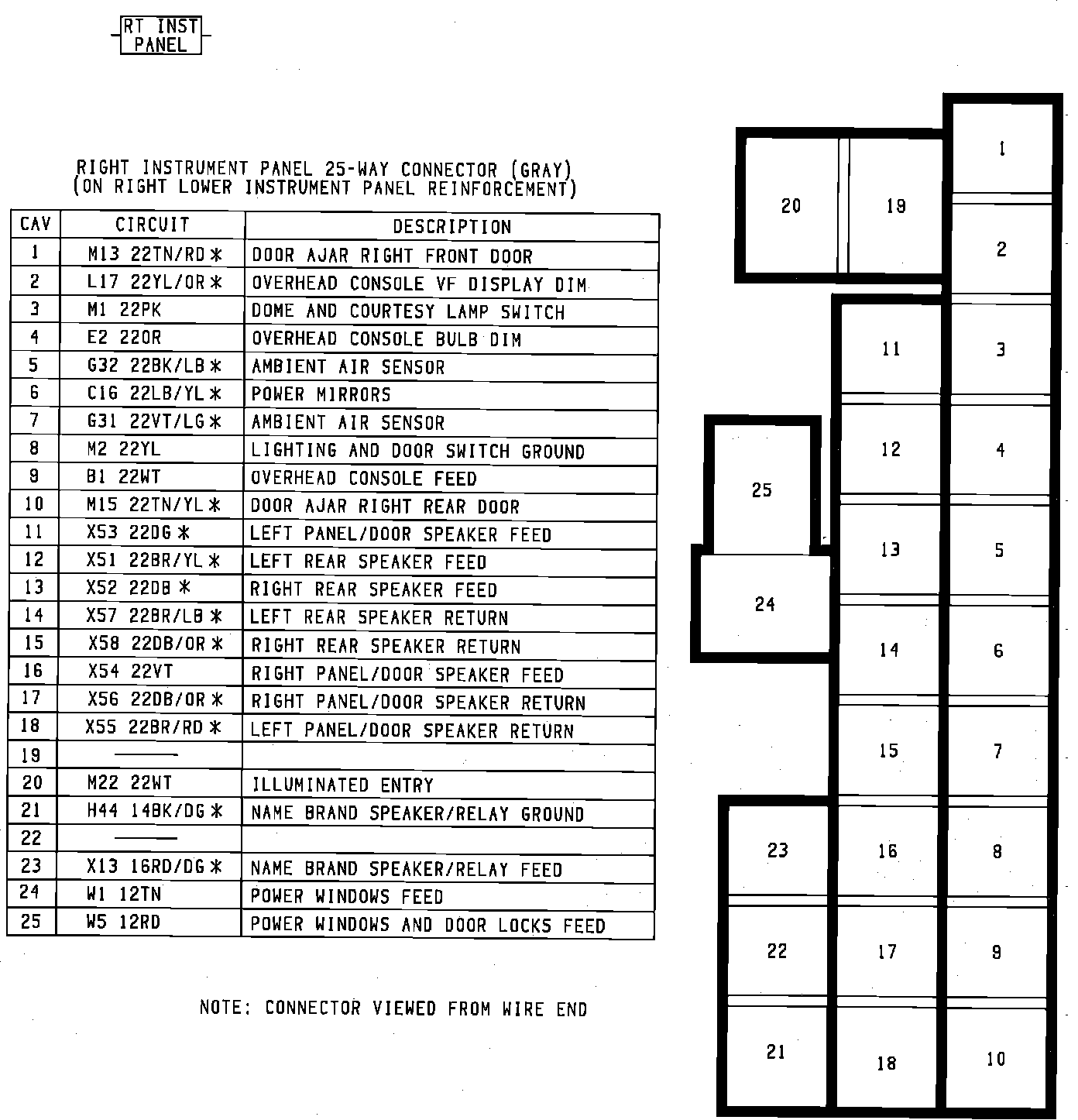

Body To Instrument Panel Connectors, Right Side (Part 2 of 2):
