Turn Signals

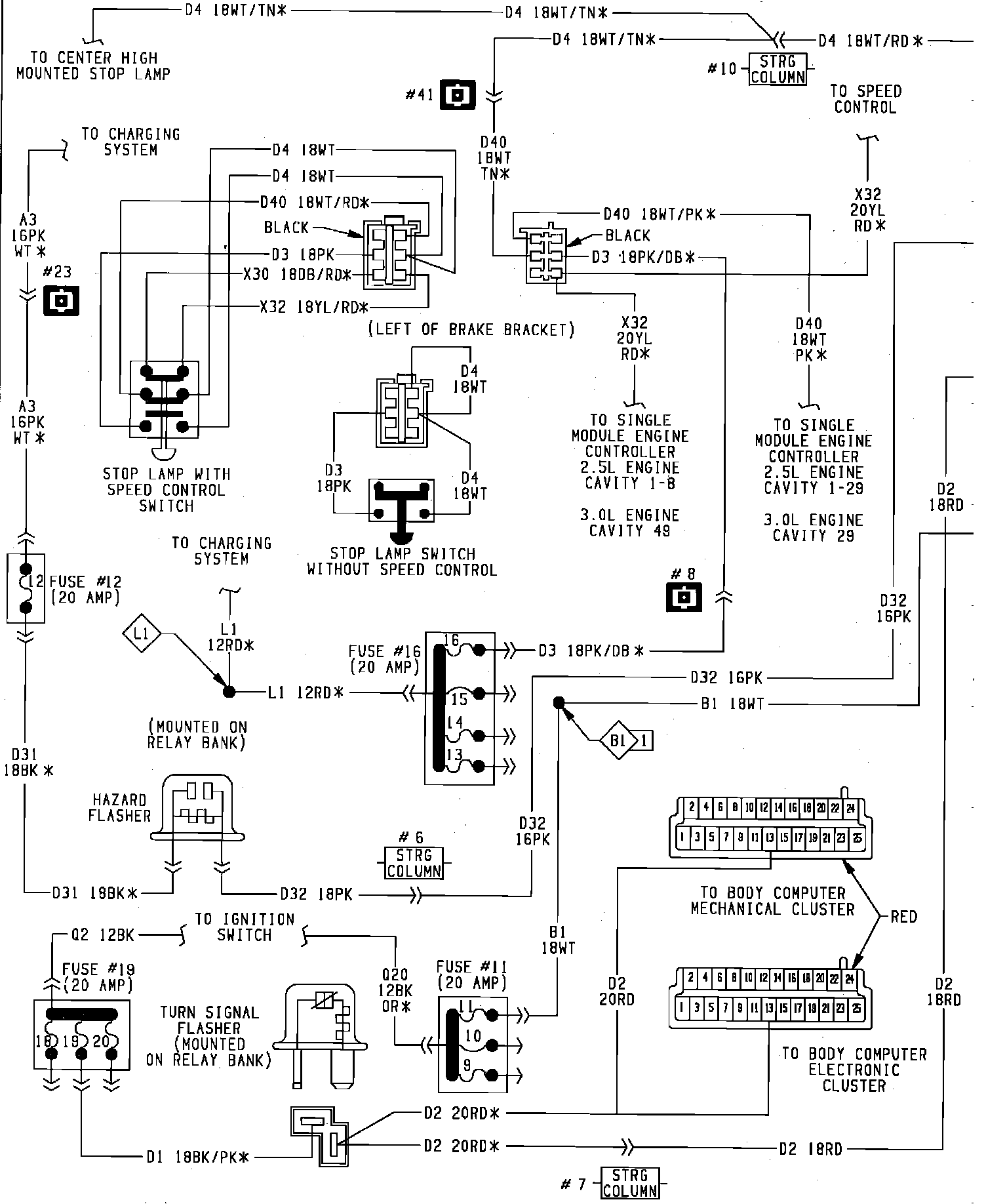

Hazard & Turn Flasher & Stop Lamp -- Part 1:

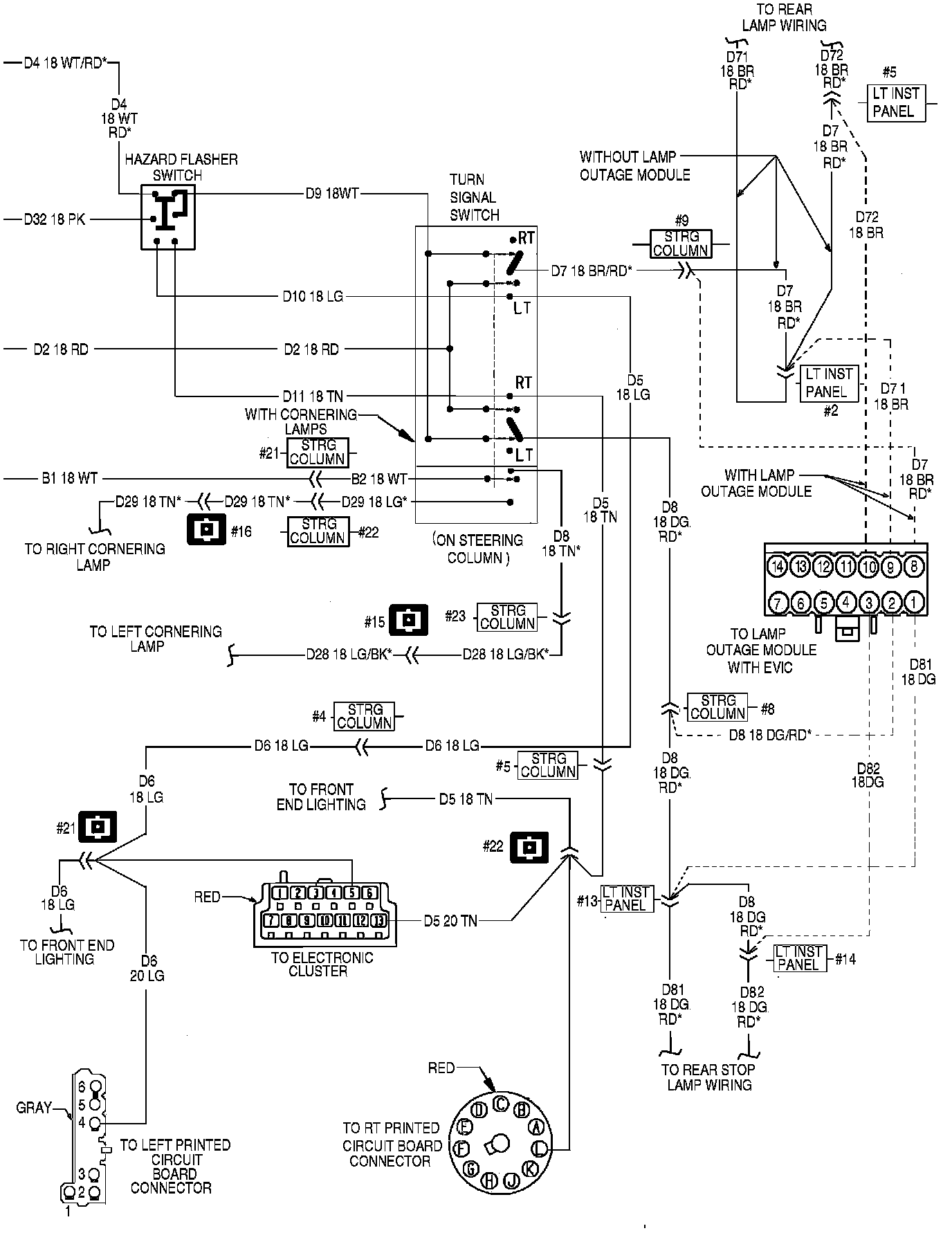

Hazard & Turn Flasher & Stop Lamp -- Part 2:
