Home >> Chrysler >> 1989 >> New Yorker V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Mirrors >> Part 1 of 2

Part 1 of 2

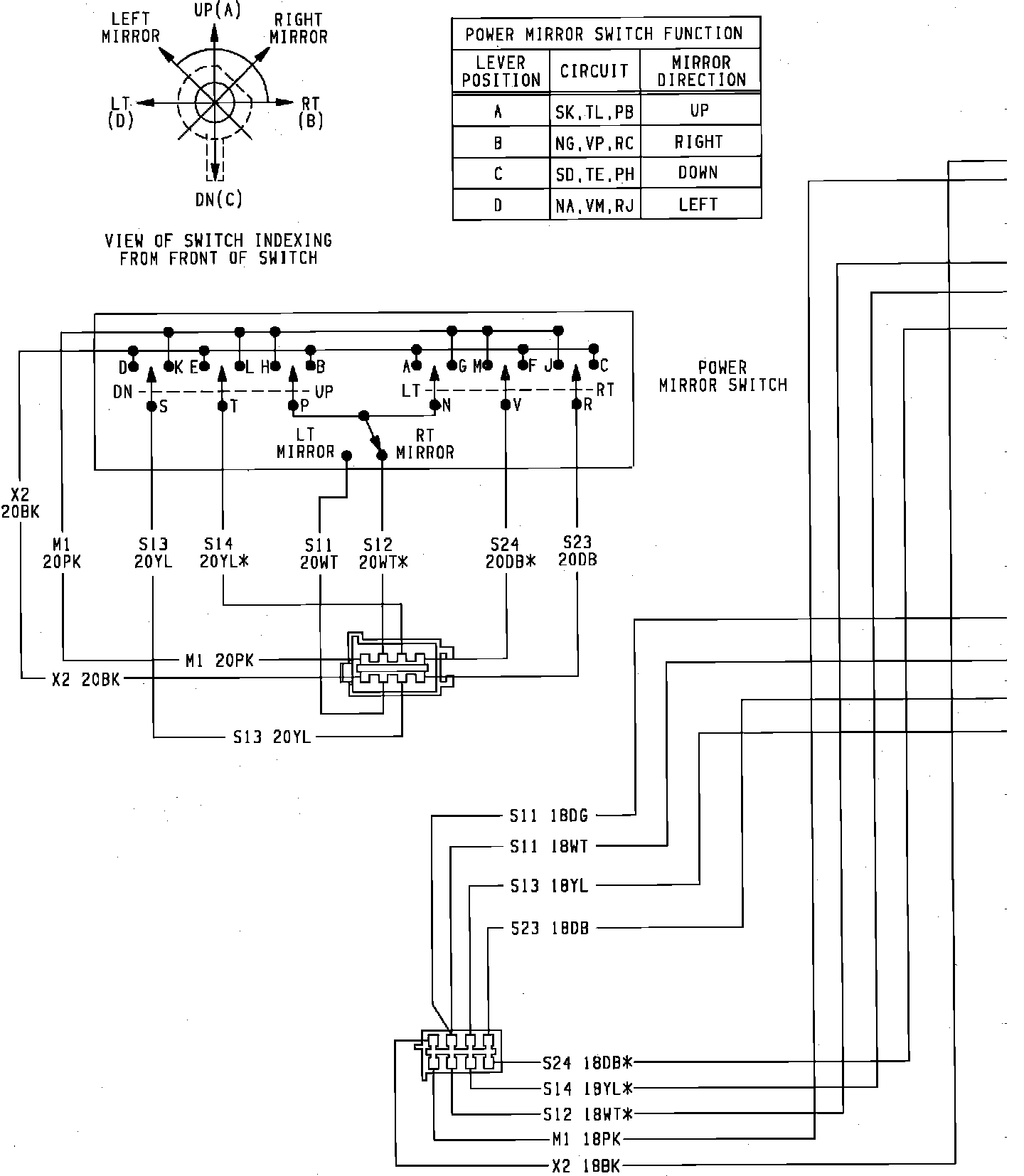

Heated Power Remote Mirrors:
