System Diagram

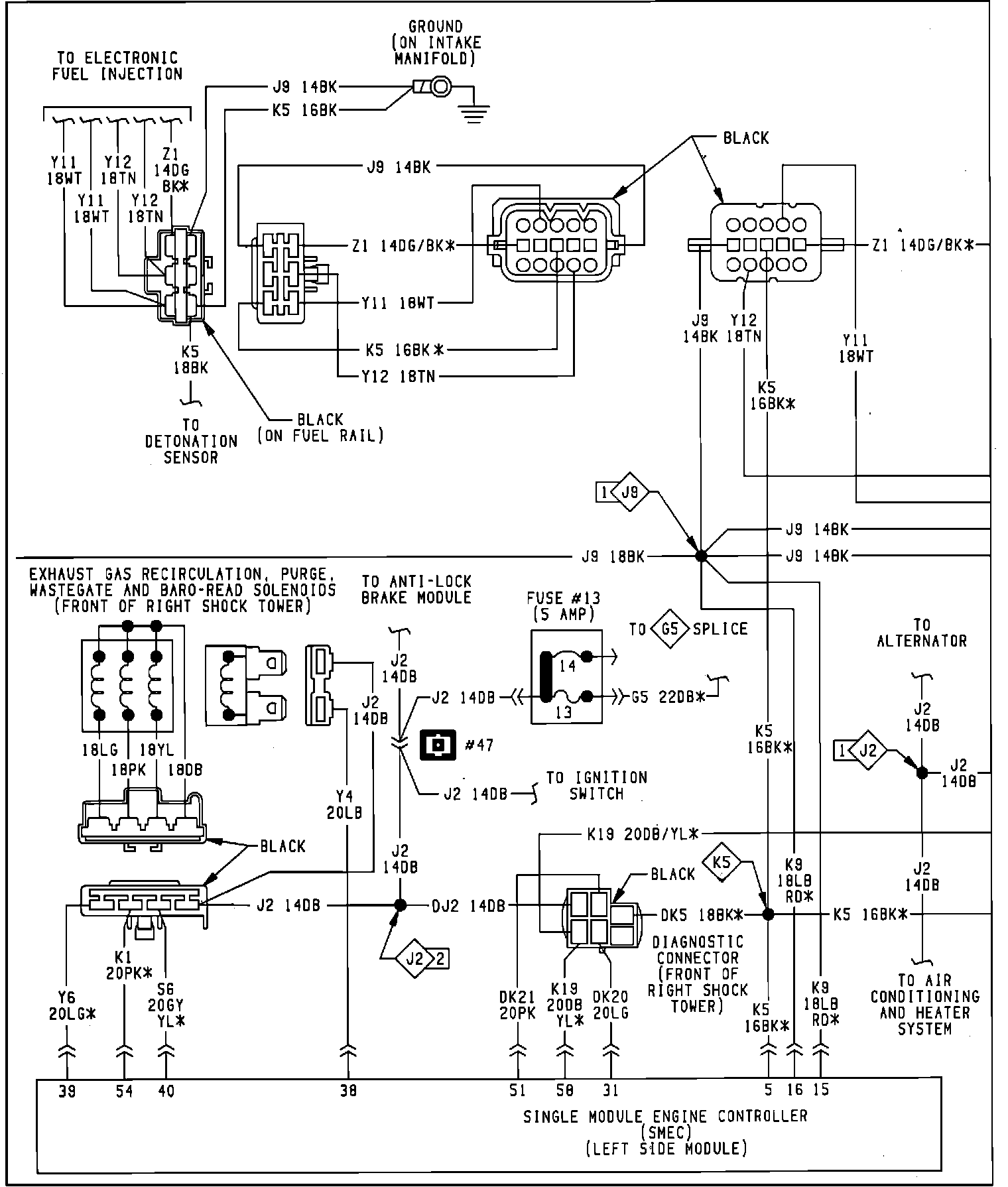

Computerized Engine Control System Wiring Diagram - Part 1:

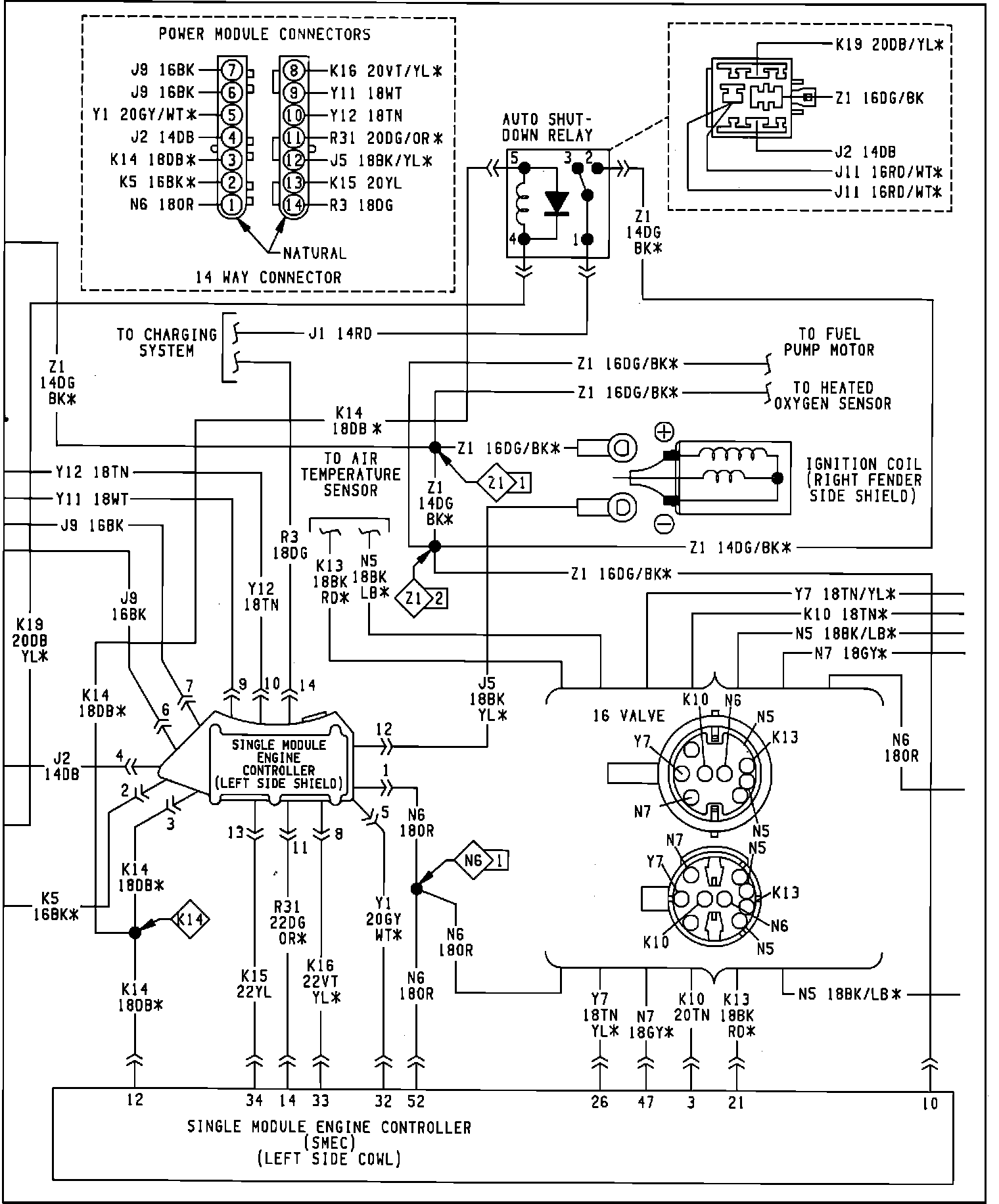

Computerized Engine Control System Wiring Diagram - Part 2:

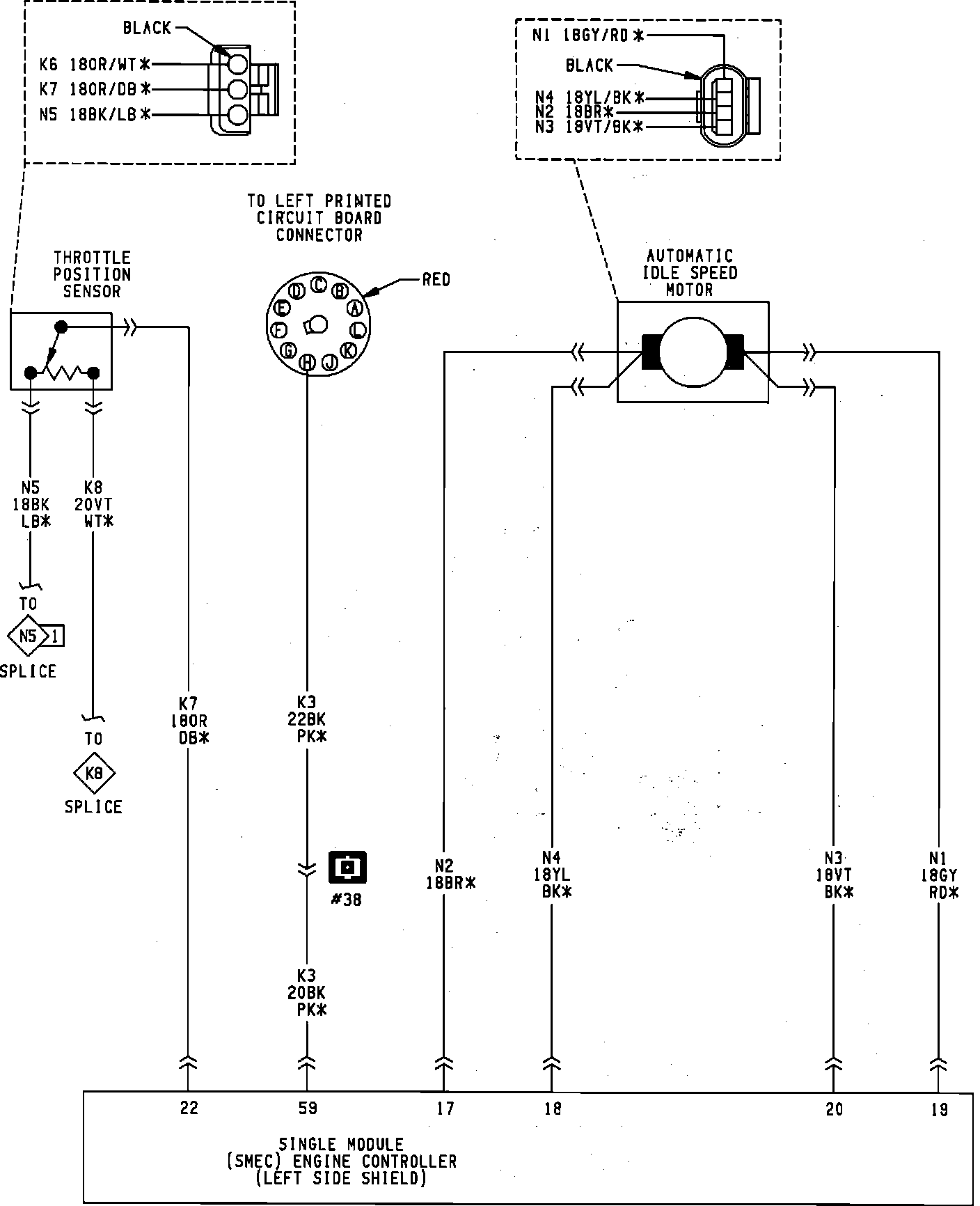

Computerized Engine Control System Wiring Diagram - Part 3:

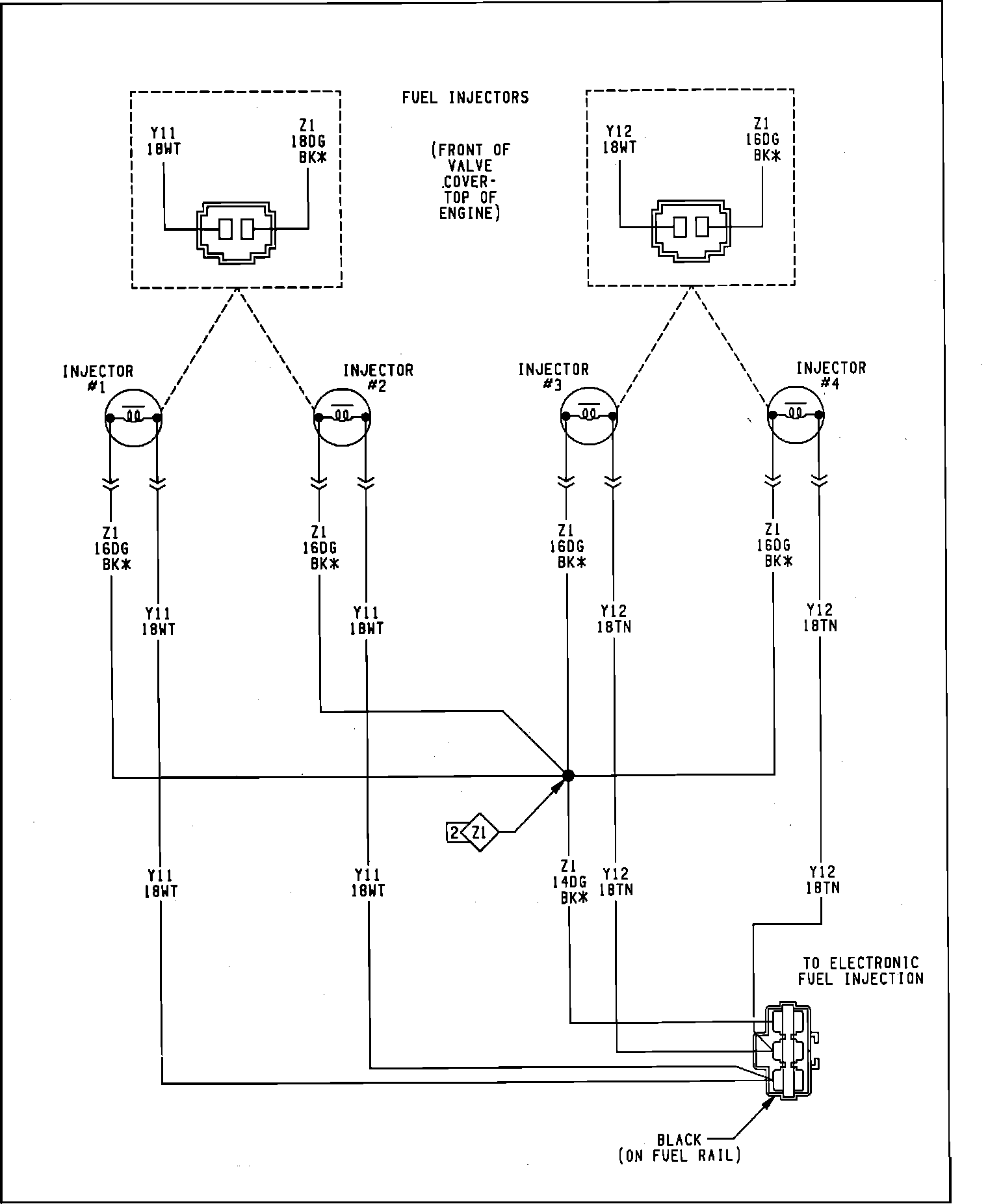

Computerized Engine Control System Wiring Diagram - Part 4:

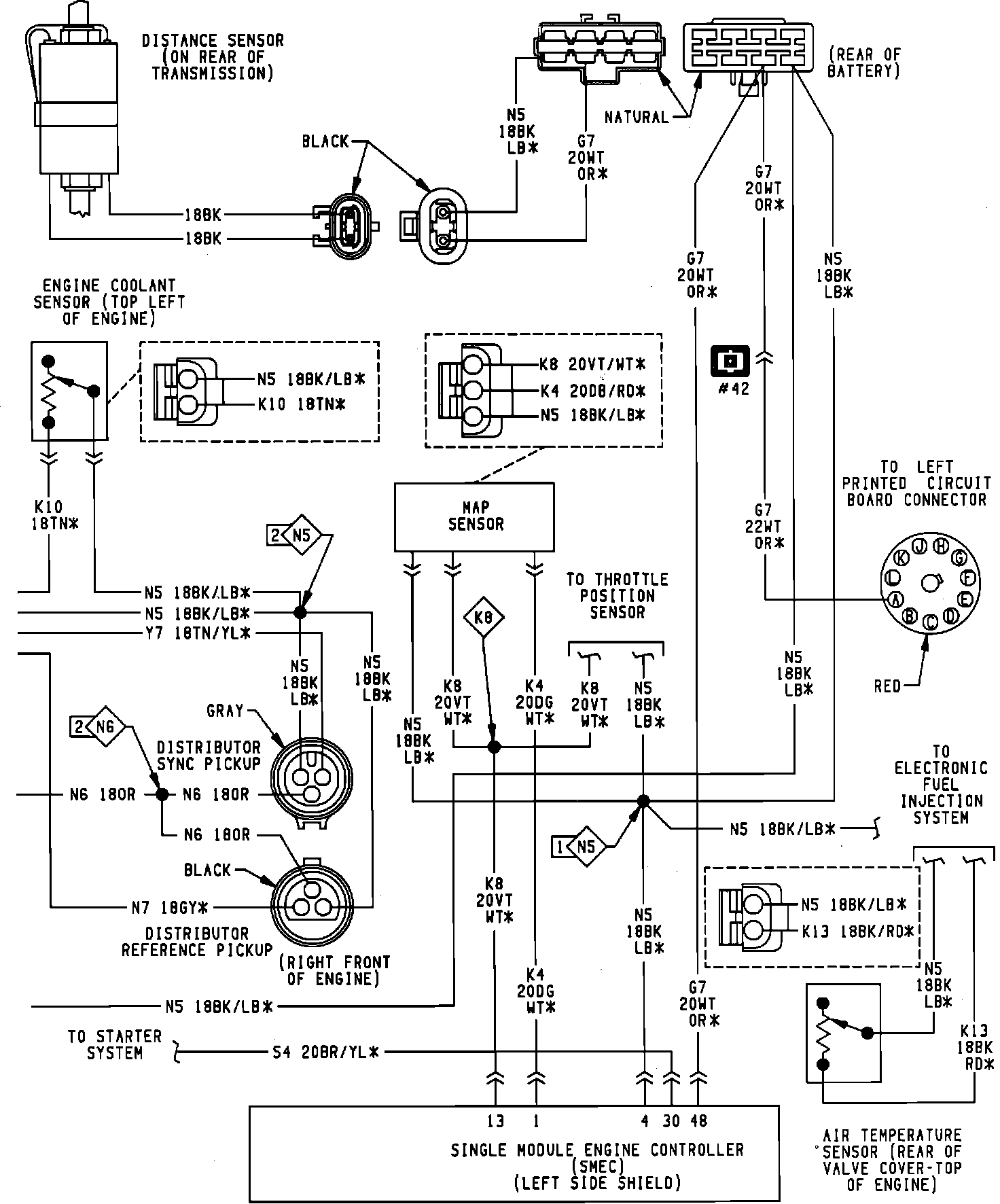

Computerized Engine Control System Wiring Diagram - Part 5:

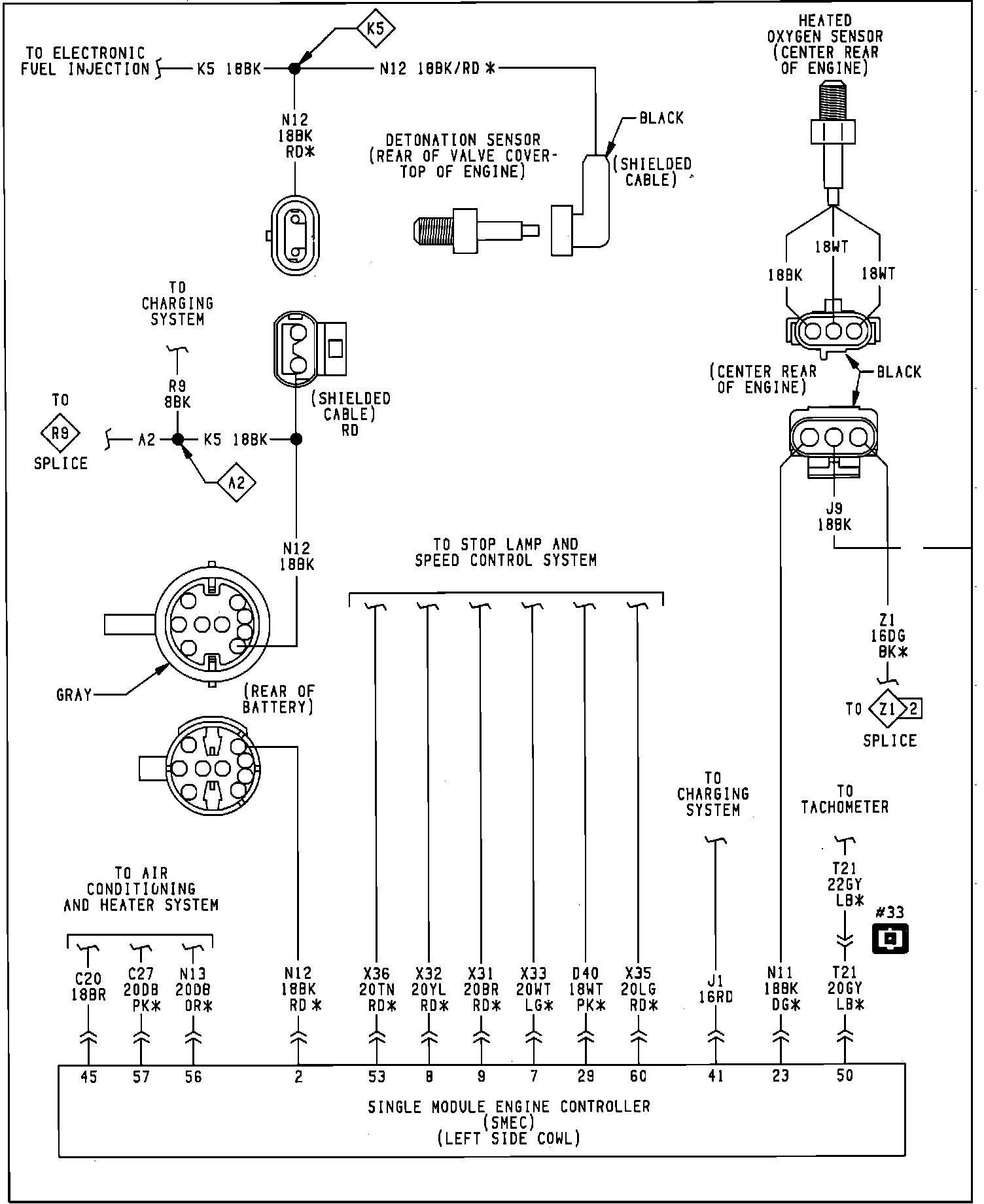

Computerized Engine Control System Wiring Diagram - Part 6:
