A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>

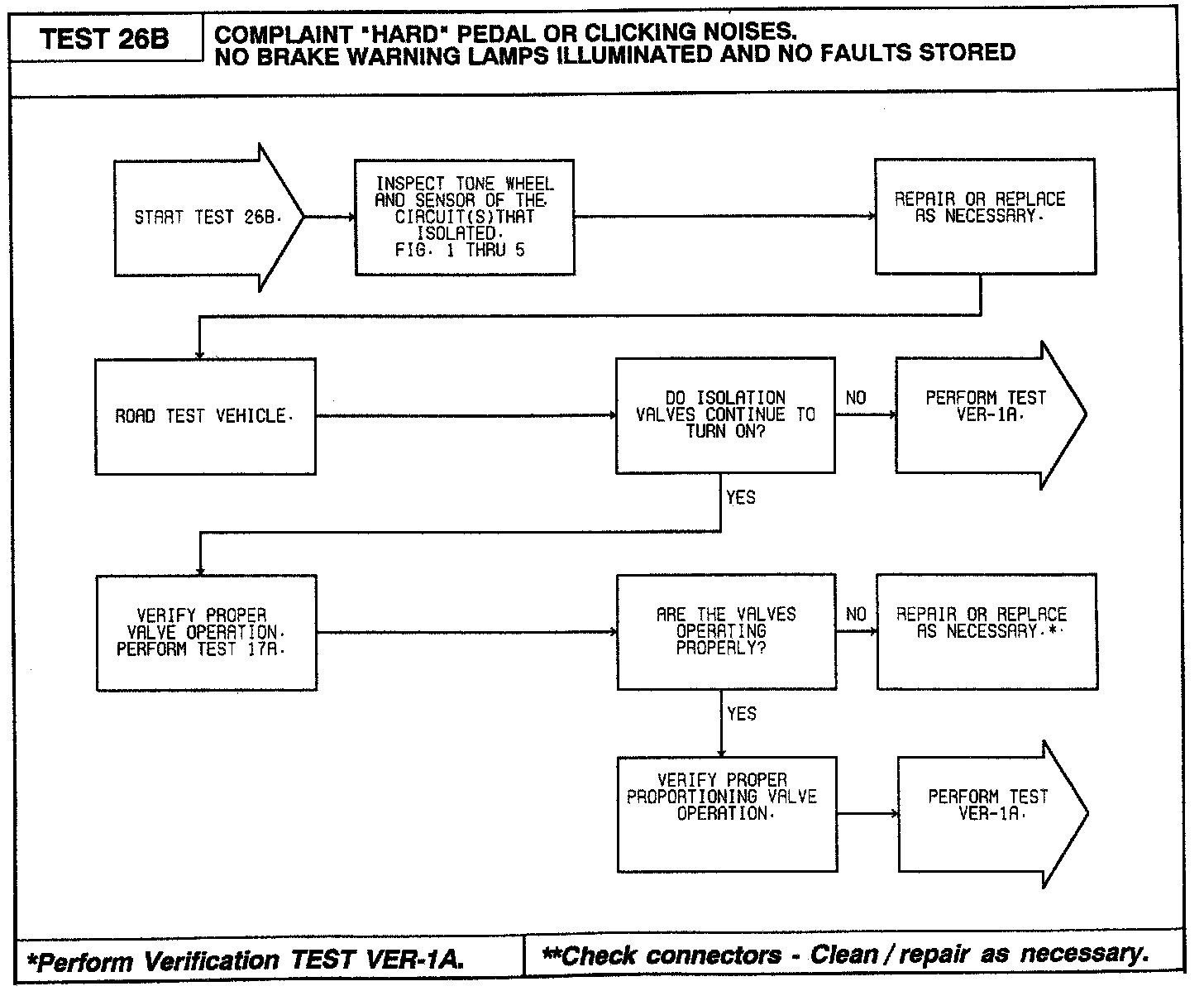

Test 26A - Hard Pedal or Clicking Noises
>>
Test 26B
Test 26B
Chart:
Image:
