DR-18 Repairing "EGR Systems Failure" Fault
>>
Part 1 of 2
Part 1 of 2

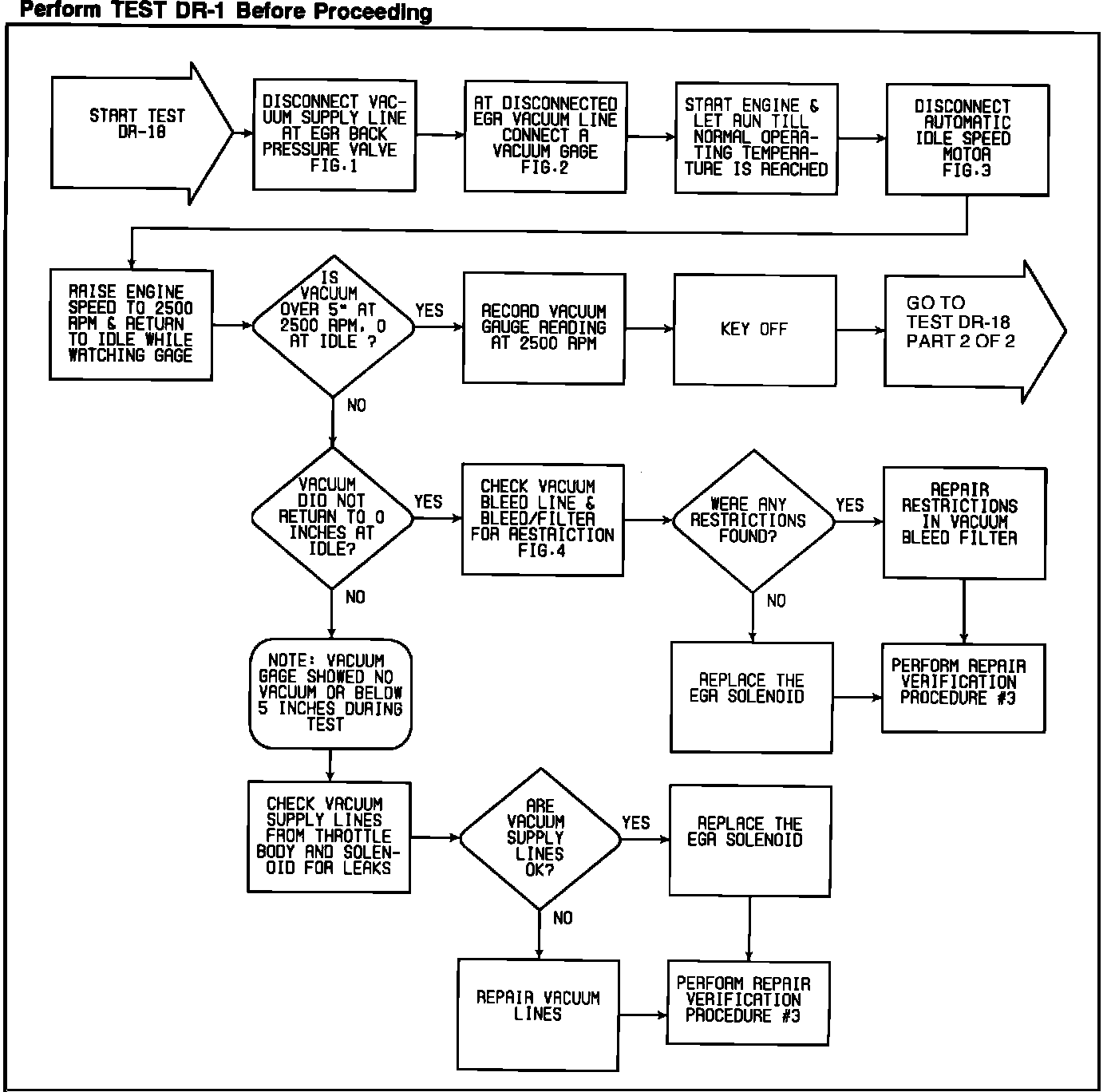

Test DR-18 - Repairing Fault " EGR System Failure":
Test DR-18 - Repairing Fault " EGR System Failure":
