DR-33 Checking Coolant & Throttle Position Sensors
DR-33 Checking Coolant & Throttle Position Sensors

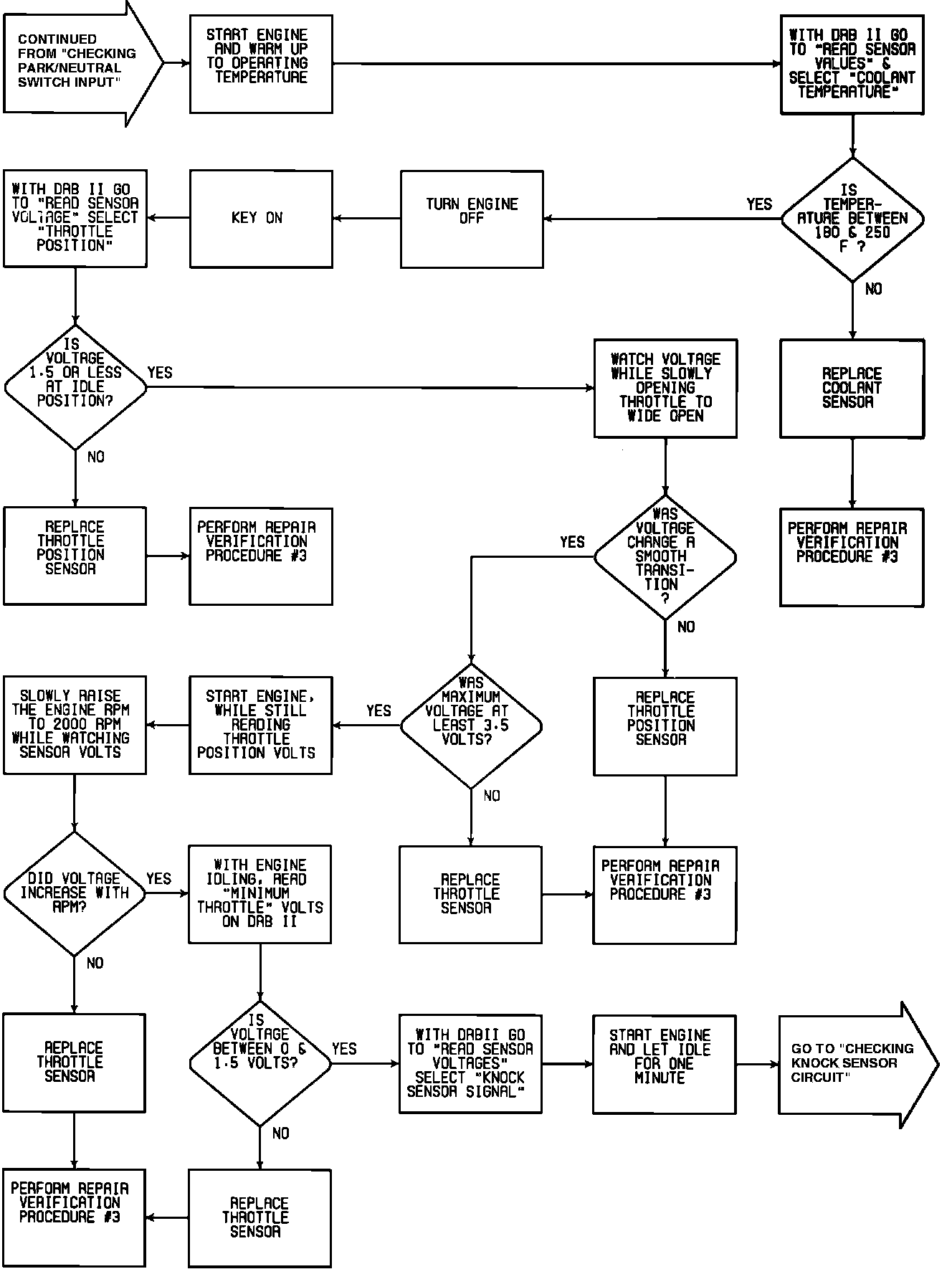

Checking Coolant & Throttle Position Sensors:
