Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1990
>>
Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>
DR-33 Checking Engine Controller Ground & Power Circuits
DR-33 Checking Engine Controller Ground & Power Circuits

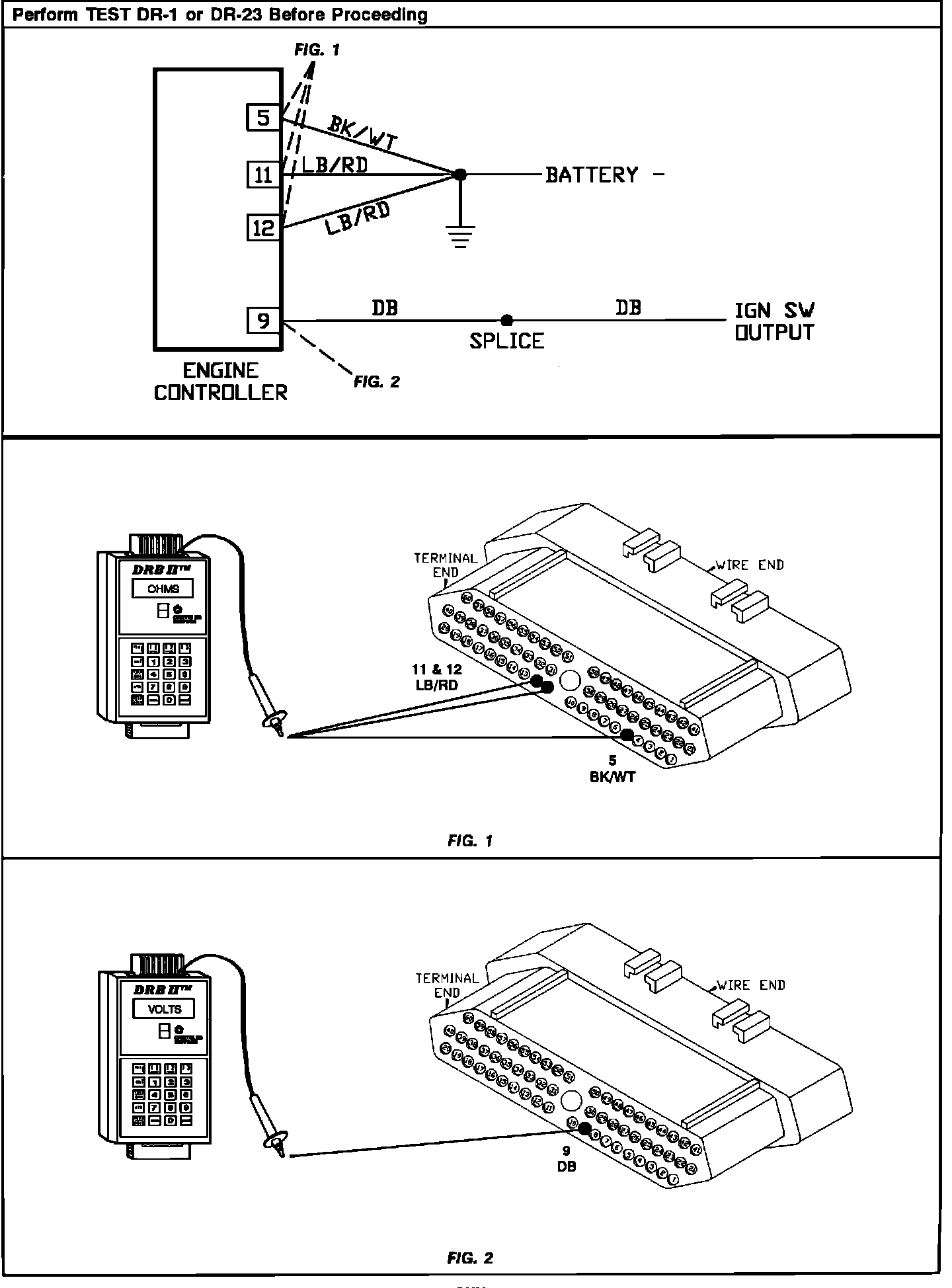

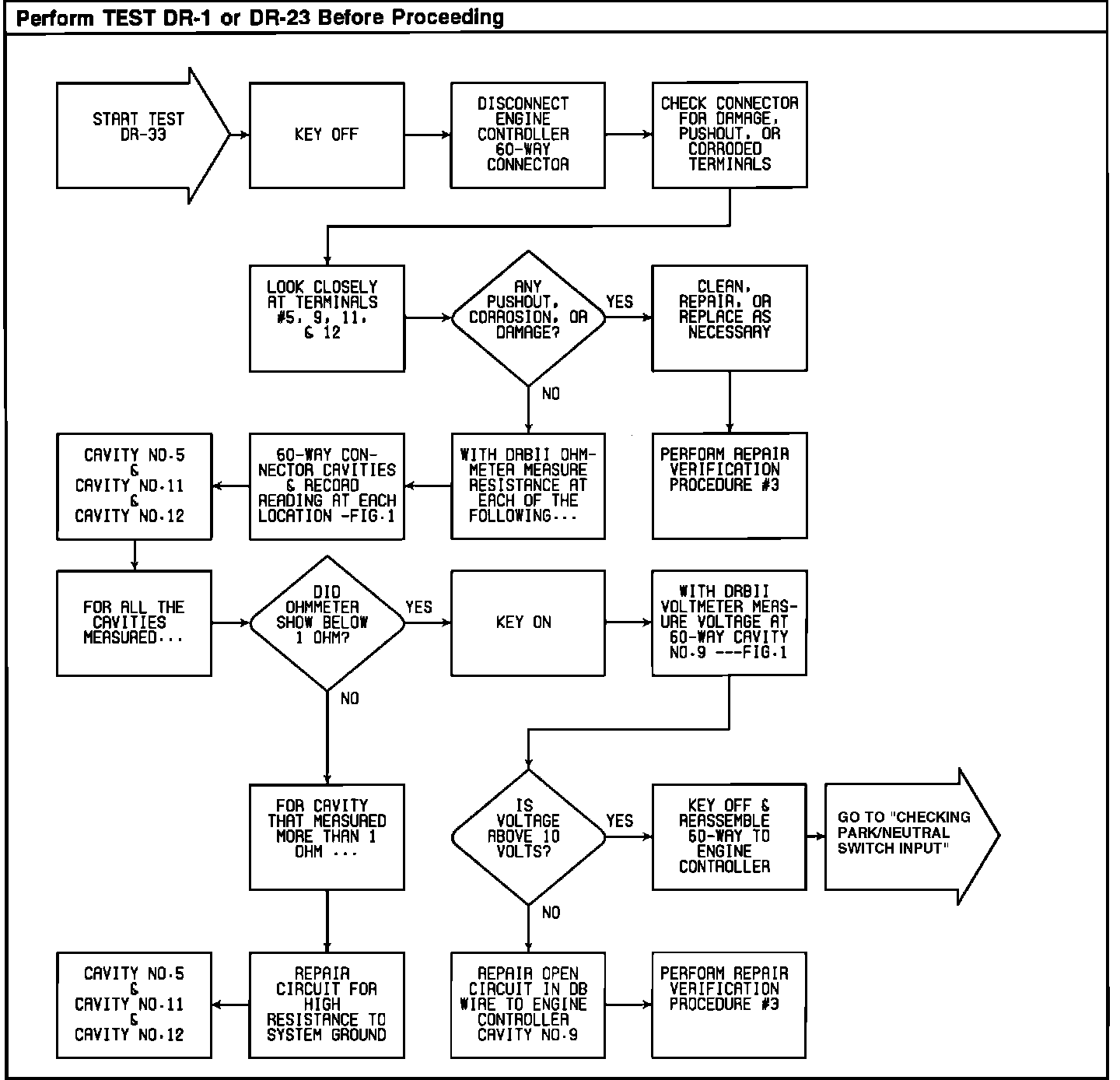

Checking Engine Controller Ground & Power Circuits:
Checking Engine Controller Ground & Power Circuits:
