Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-33 Checking Fuel Pressure >> Part 2 of 2

Part 2 of 2

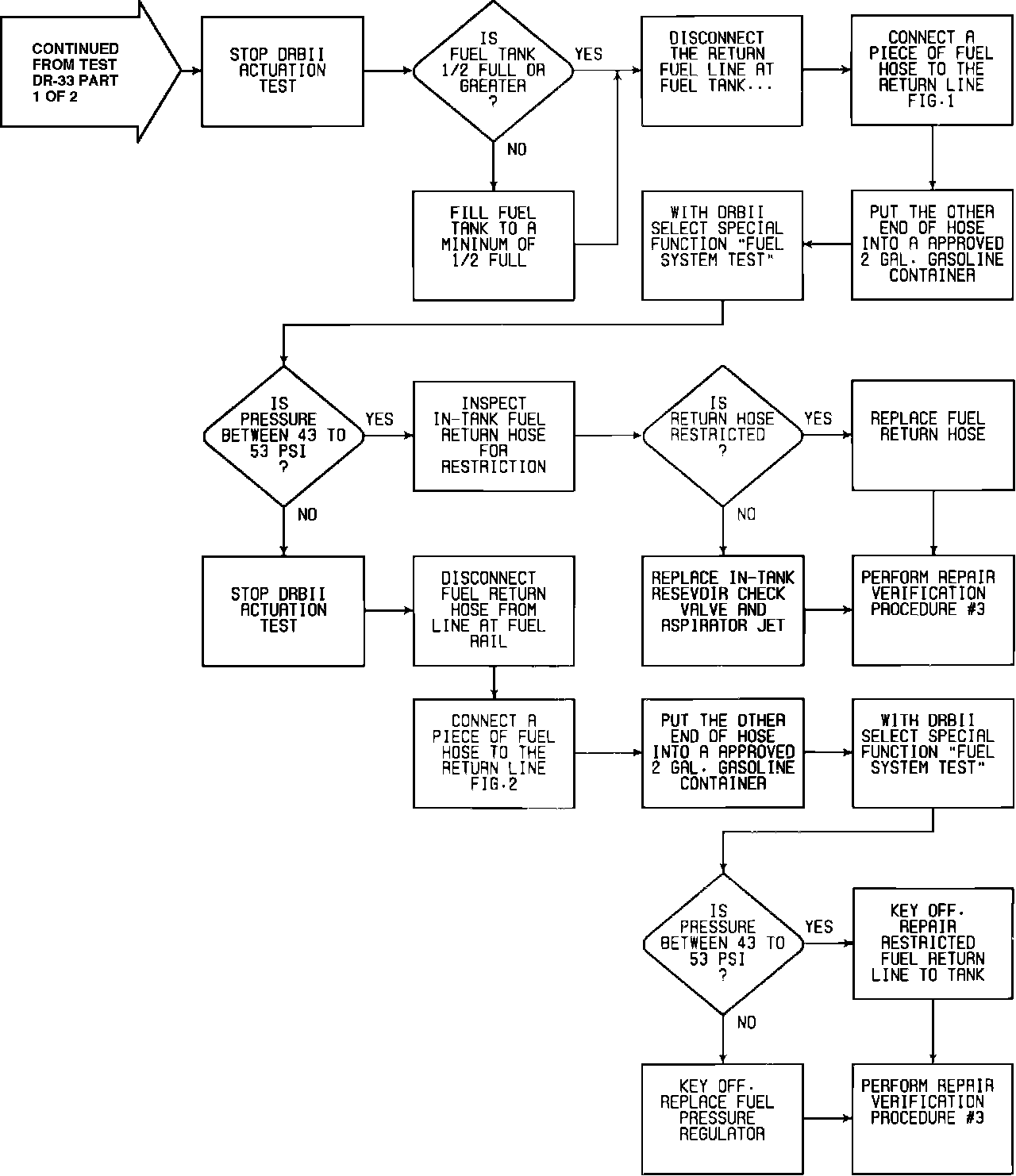

Test DR-33 - Checking Fuel Pressure:



Test DR-33 - Checking Fuel Pressure:
