Verification Test VER-1B - Stop Lamp Switch Input Circuit - ABS
Verification Test VER-1B - Stop Lamp Switch Input Circuit - ABS

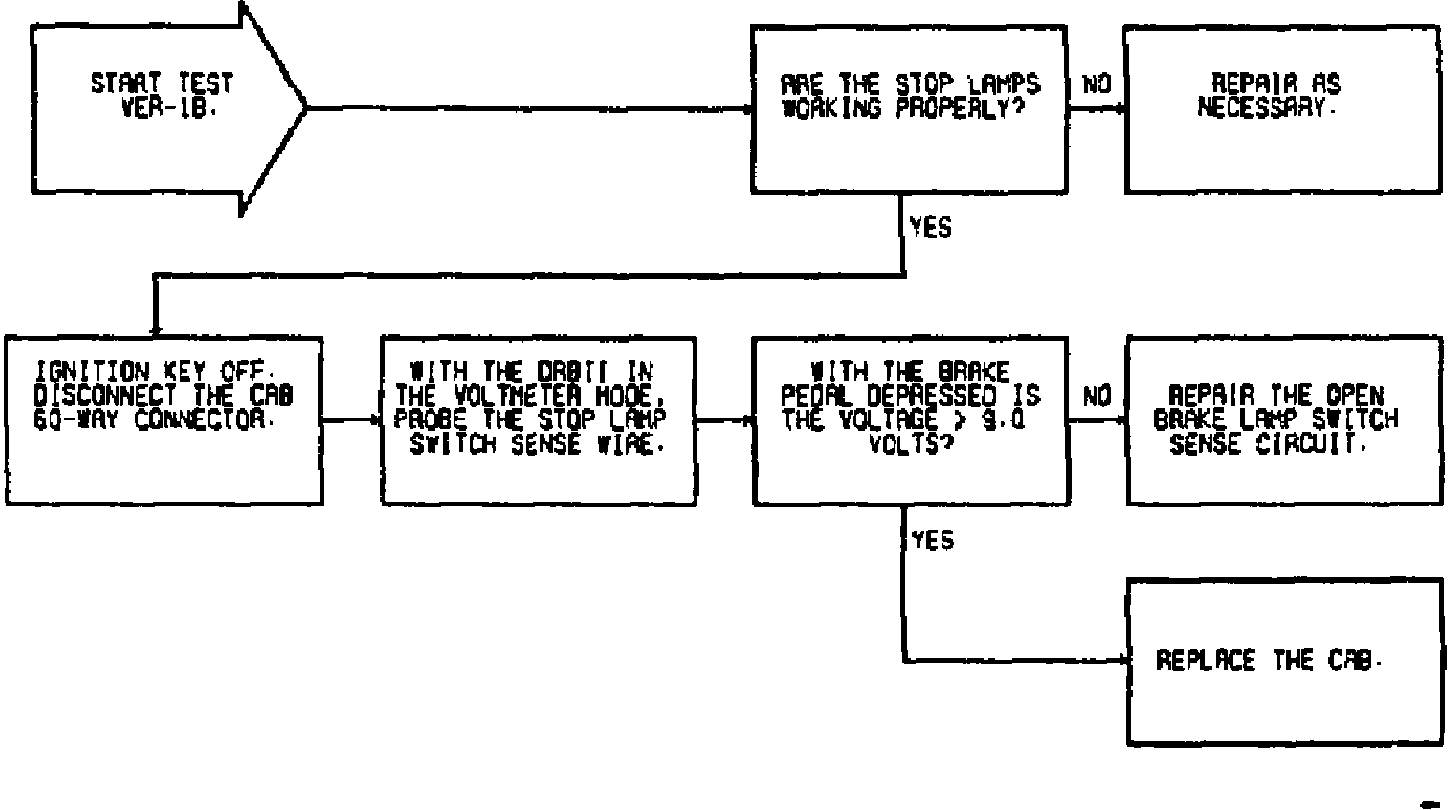

Fig. 157 Test VER-1B:
