Verification Test VER-1C - Accumulator Switch Input Circuit - ABS
Verification Test VER-1C - Accumulator Switch Input Circuit - ABS

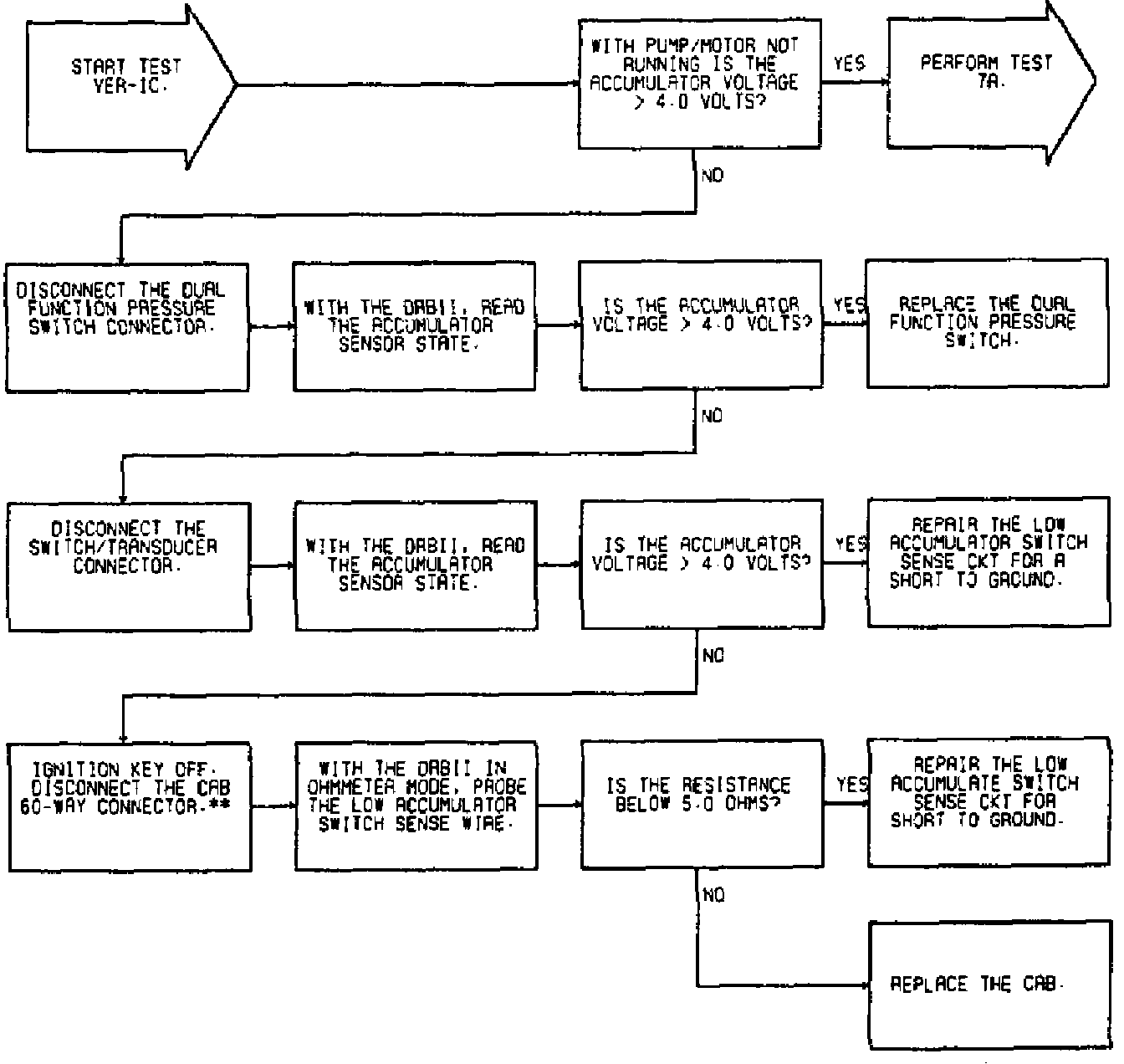

Fig. 158 Test VER-1C:
