Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1990
>>
Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Charts
>>
Chart D - Brake Warning Lamp Inoperative During Key-On
Chart D - Brake Warning Lamp Inoperative During Key-On

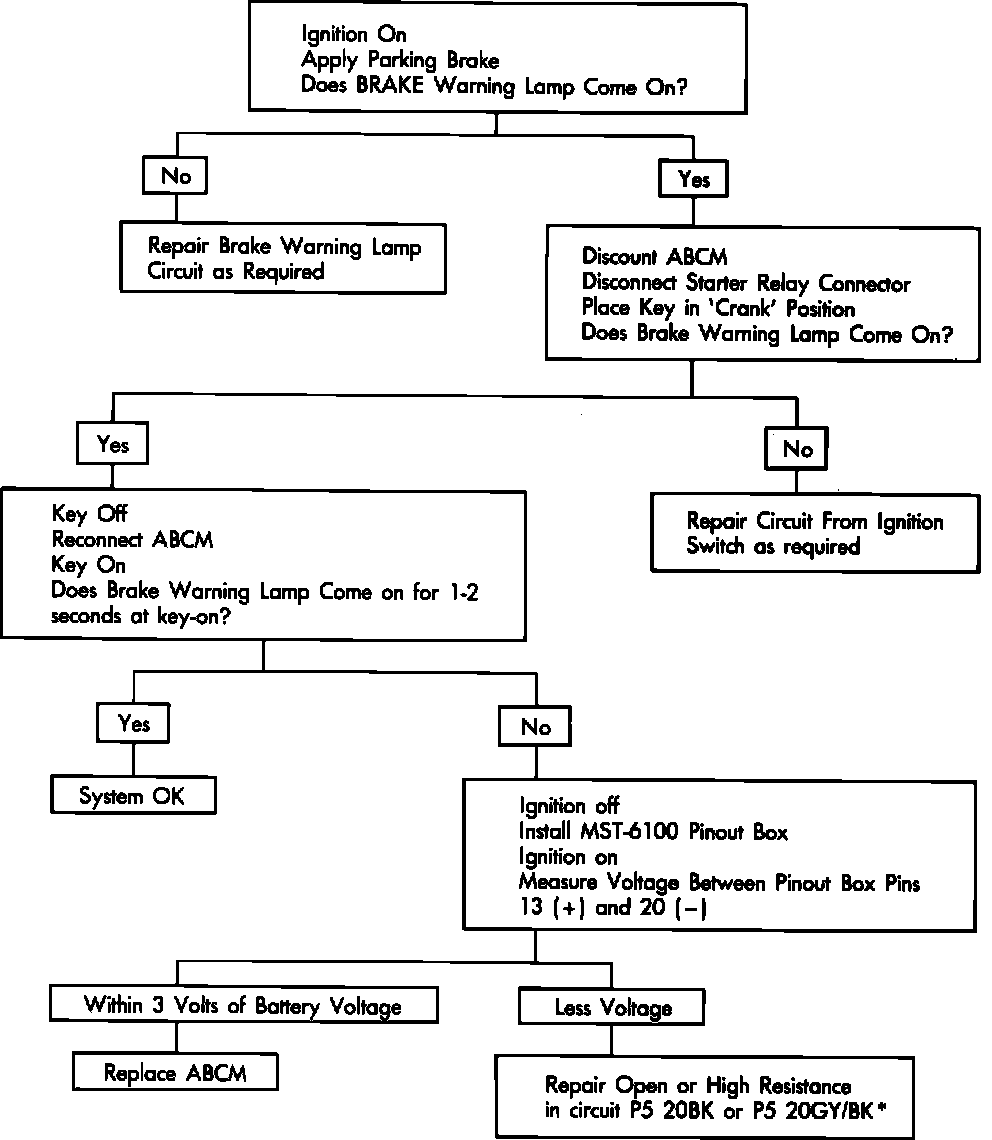

Chart D Diagnosis Chart:
