Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Charts
>>

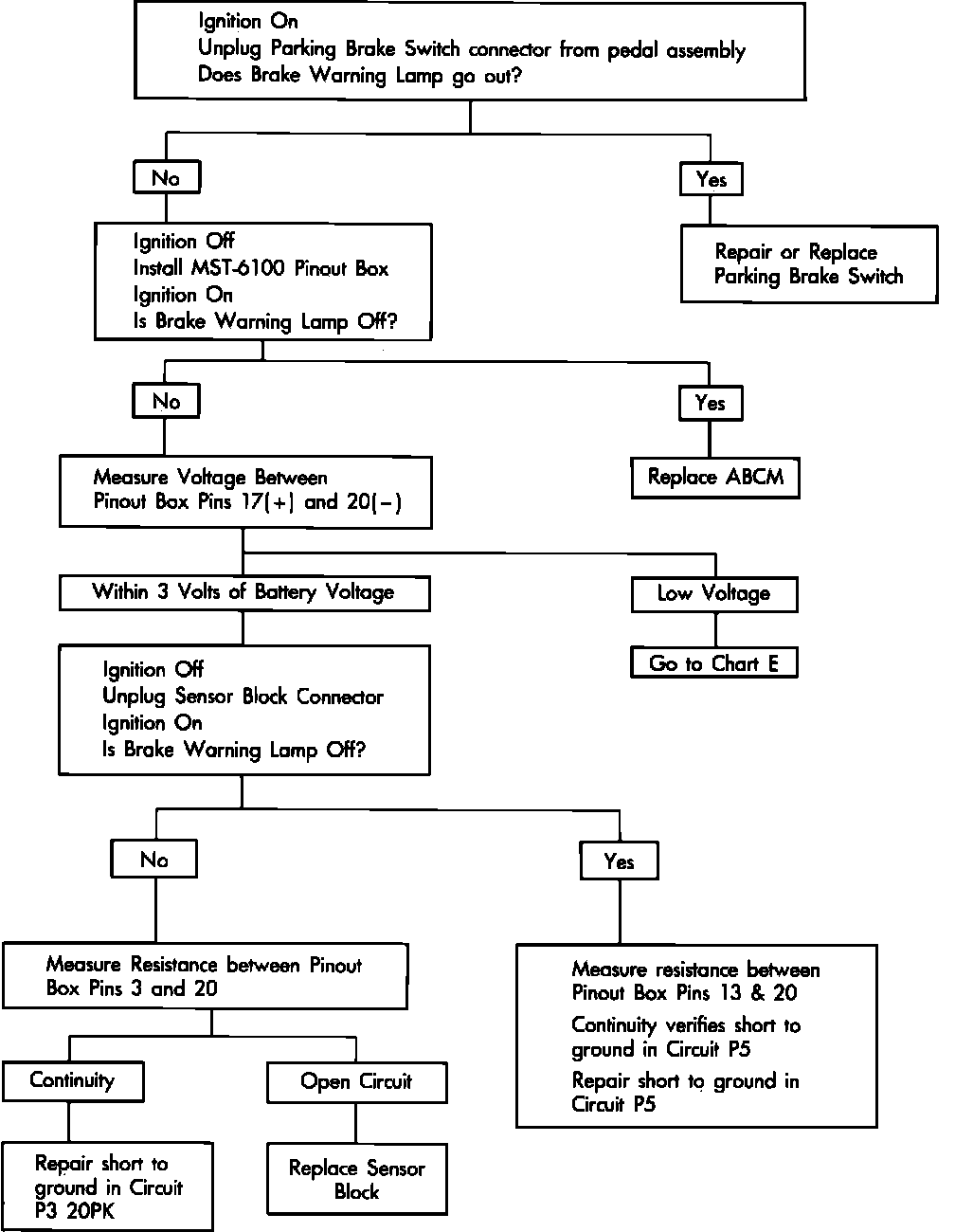

Chart F -Brake Warning Lamp On and Power Assist Available
Chart F -Brake Warning Lamp On and Power Assist Available
Chart F Diagnosis Chart:
