Mechanical Cluster

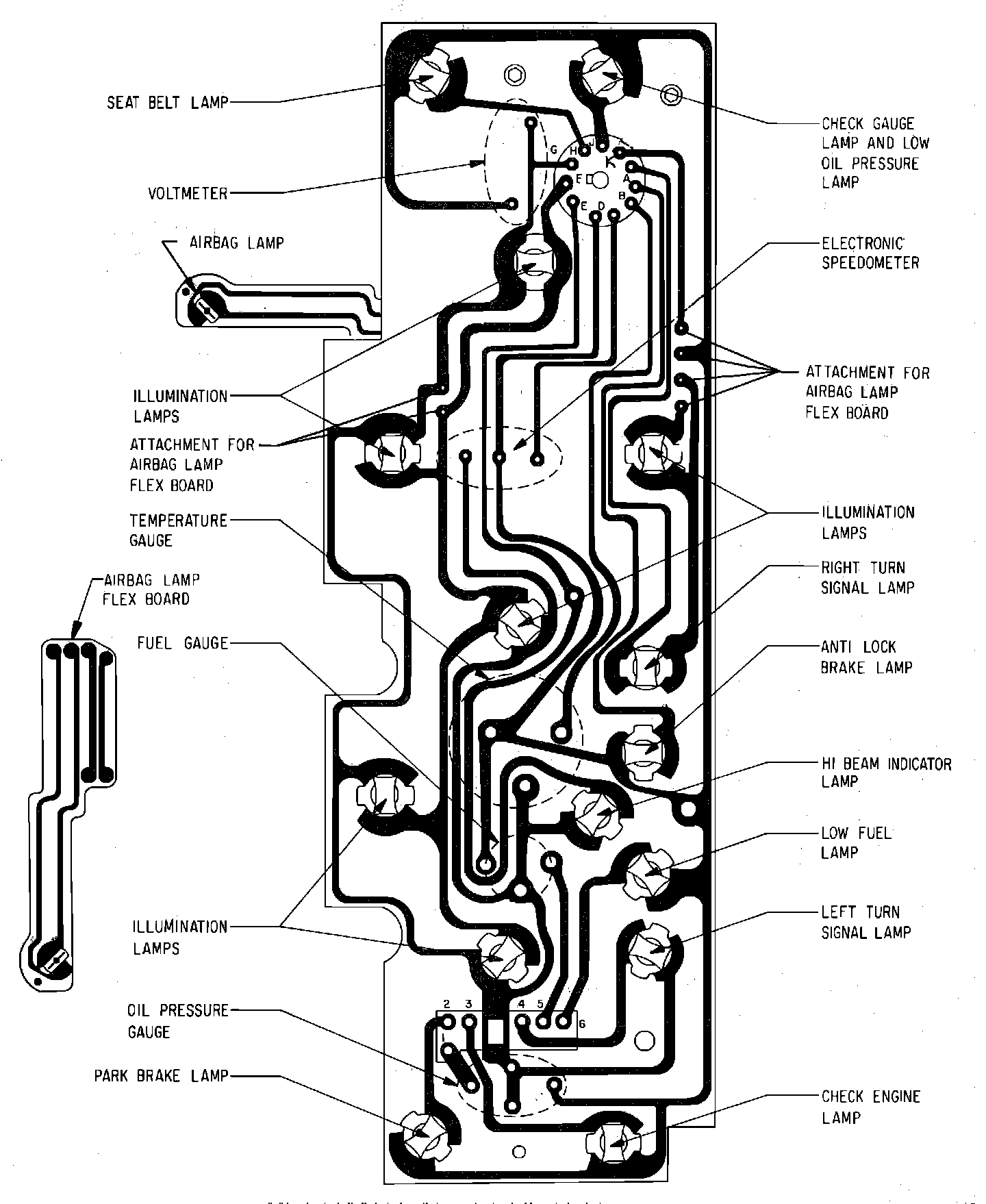

Printed Circuit Board & Connector - Mechanical Cluster:



Printed Circuit Board & Connector - Mechanical Cluster:
