Left Instrument Panel to Body Wiring
Left Instrument Panel to Body Wiring

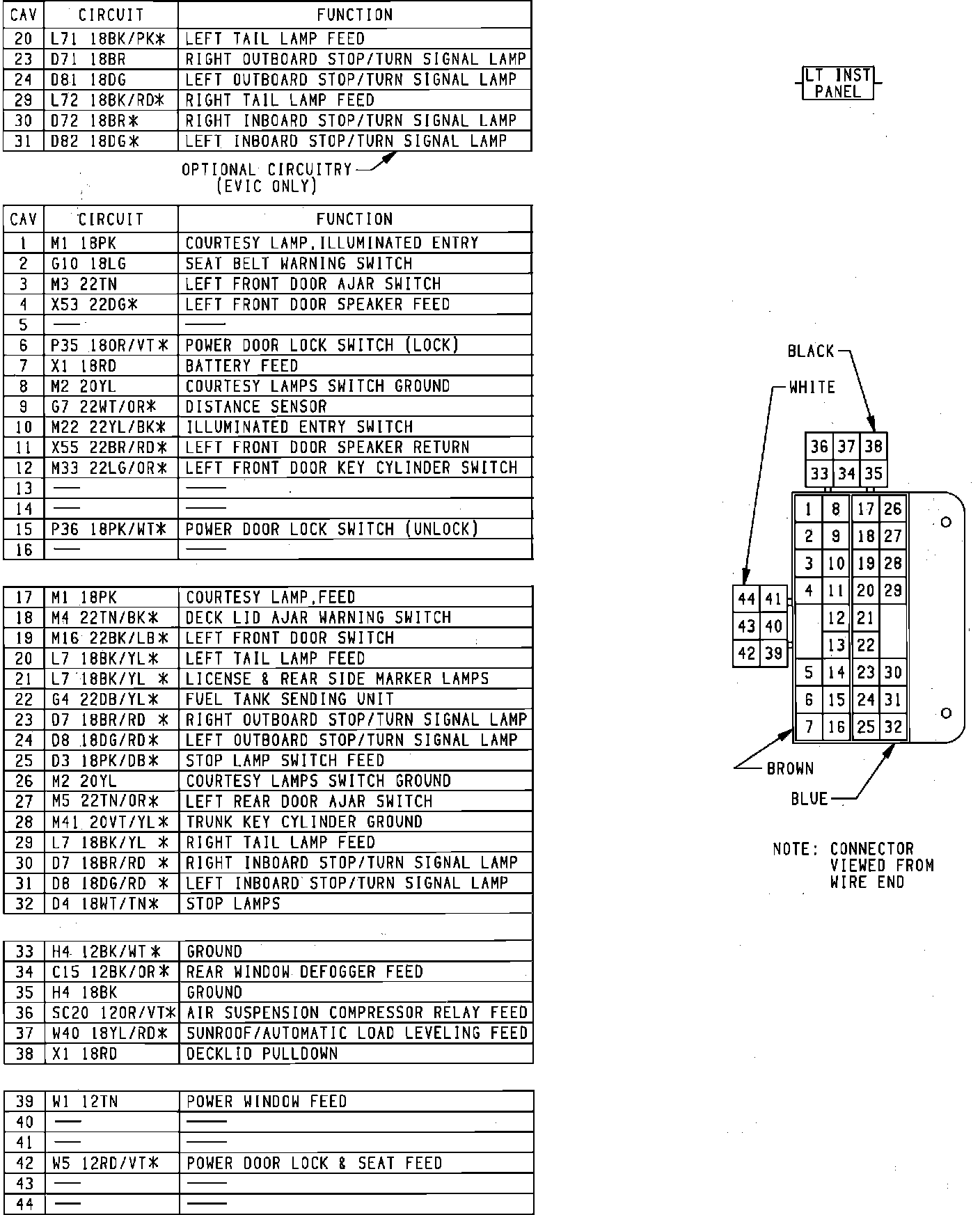

LH I/P To Body Wiring Connector:
