Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> System Diagram >> Bosch >> Part 1 of 2

Part 1 of 2

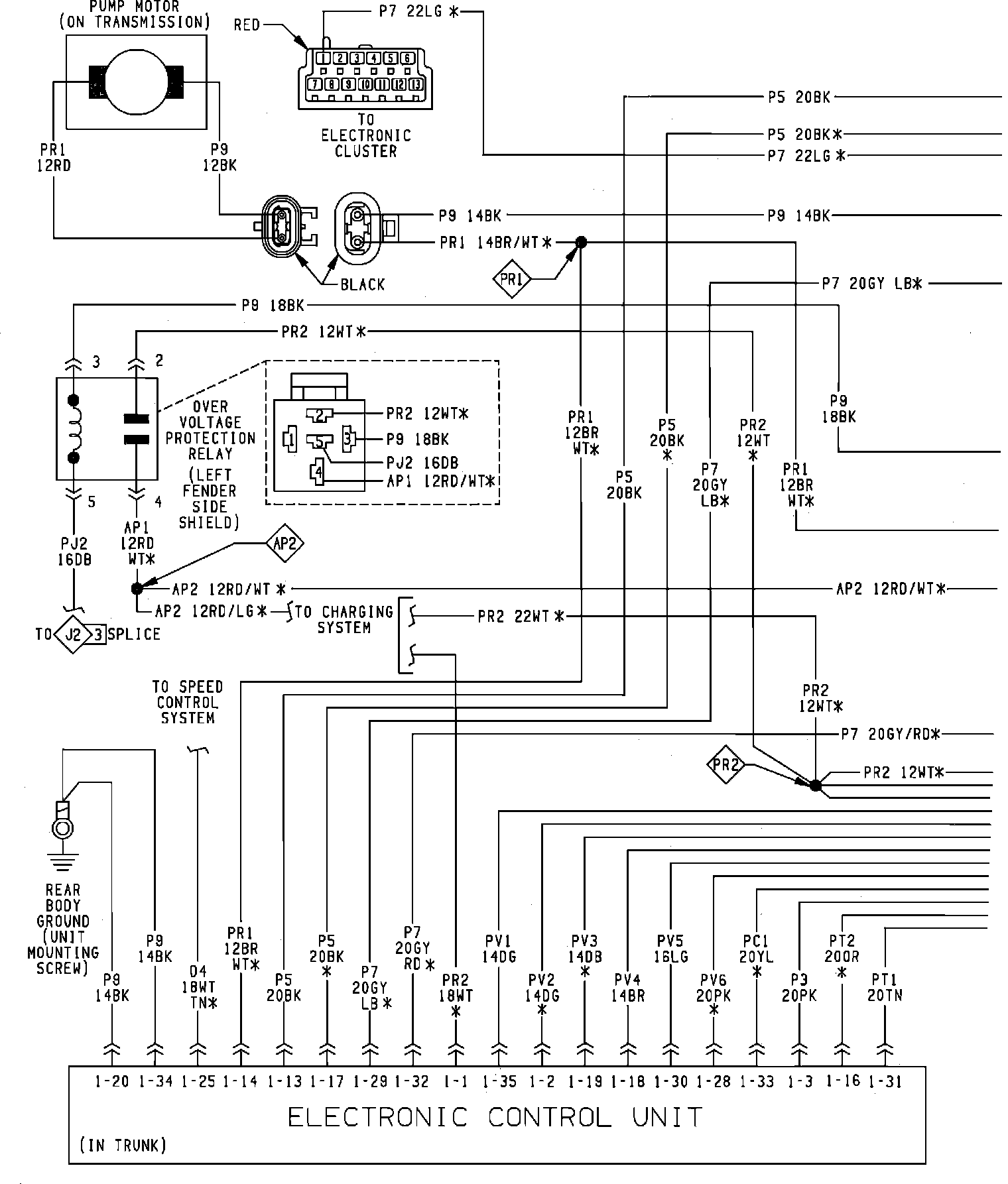

Bosch Anti-Lock Brakes:



Bosch Anti-Lock Brakes:



Bosch Anti-Lock Brakes:
