Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>
Body, Cowl & Steering Column Splices
>>
Body Right Cowl - Splice
Body Right Cowl - Splice

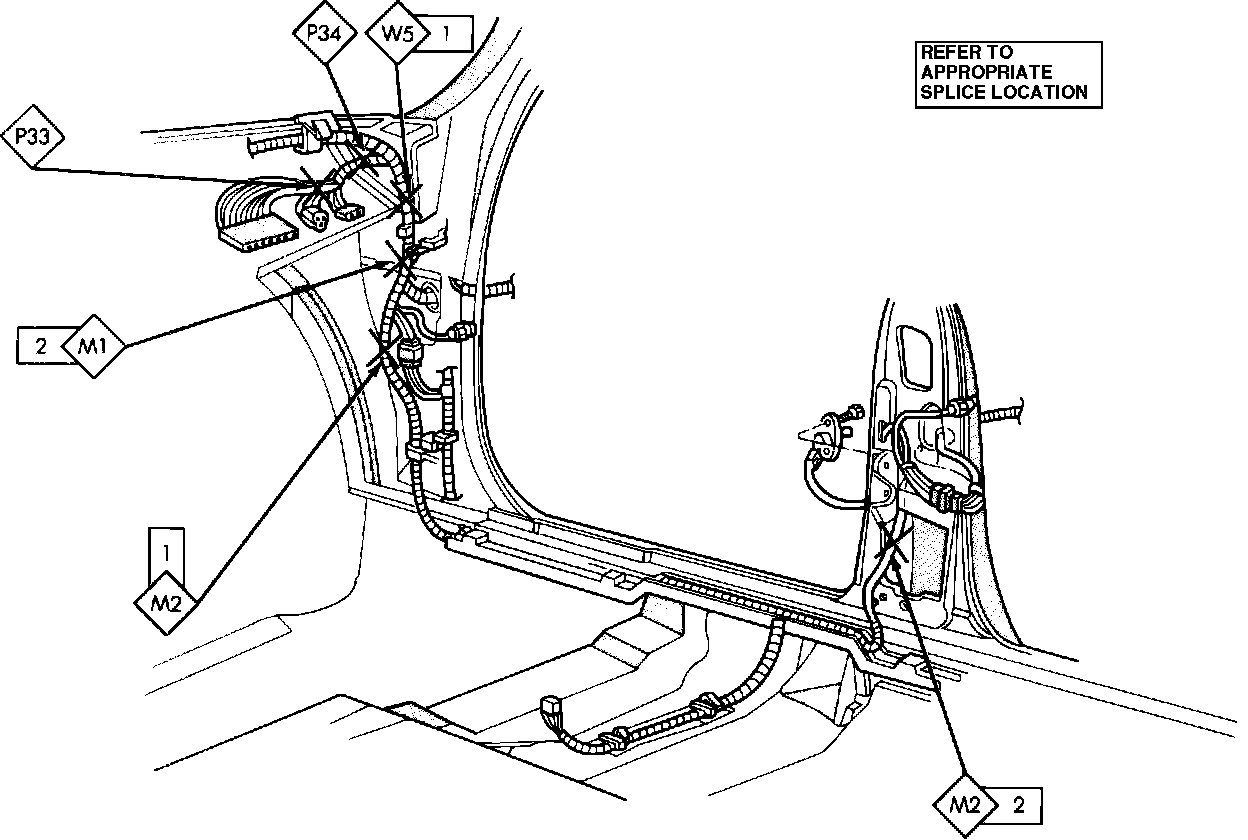

RH Body Cowl - Splice:
