Brake Fluid Pump Relay: Locations

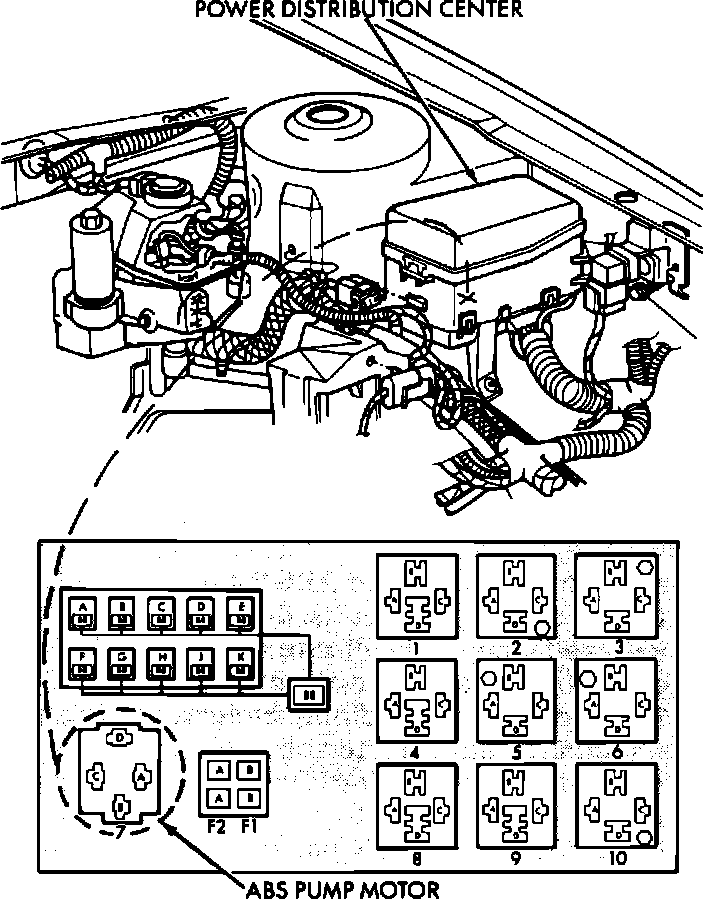

Pump/Motor and Overvoltage Protection Relays (Early Model Vehicles):
