Chrysler
>>
1990
>>
Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

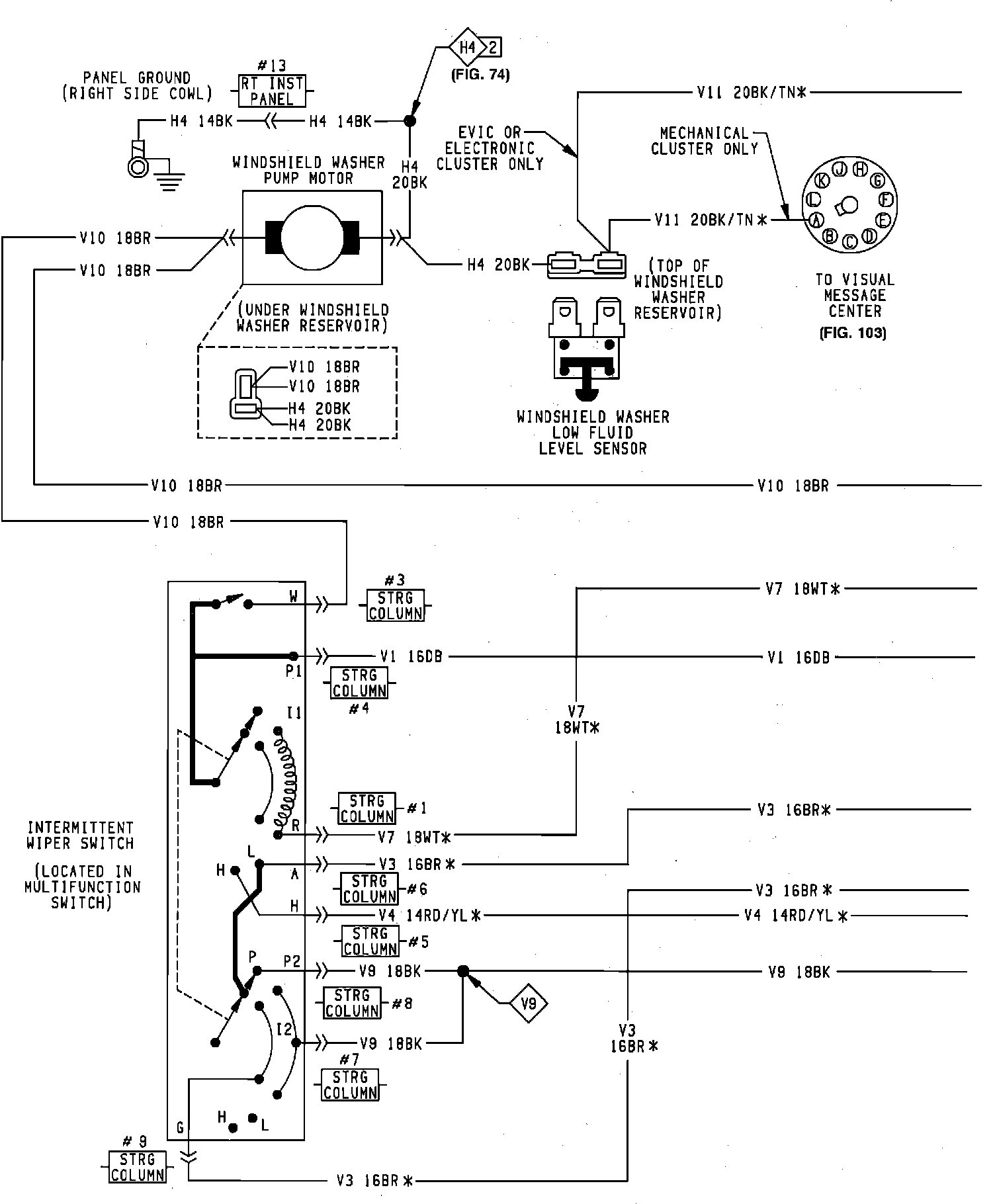

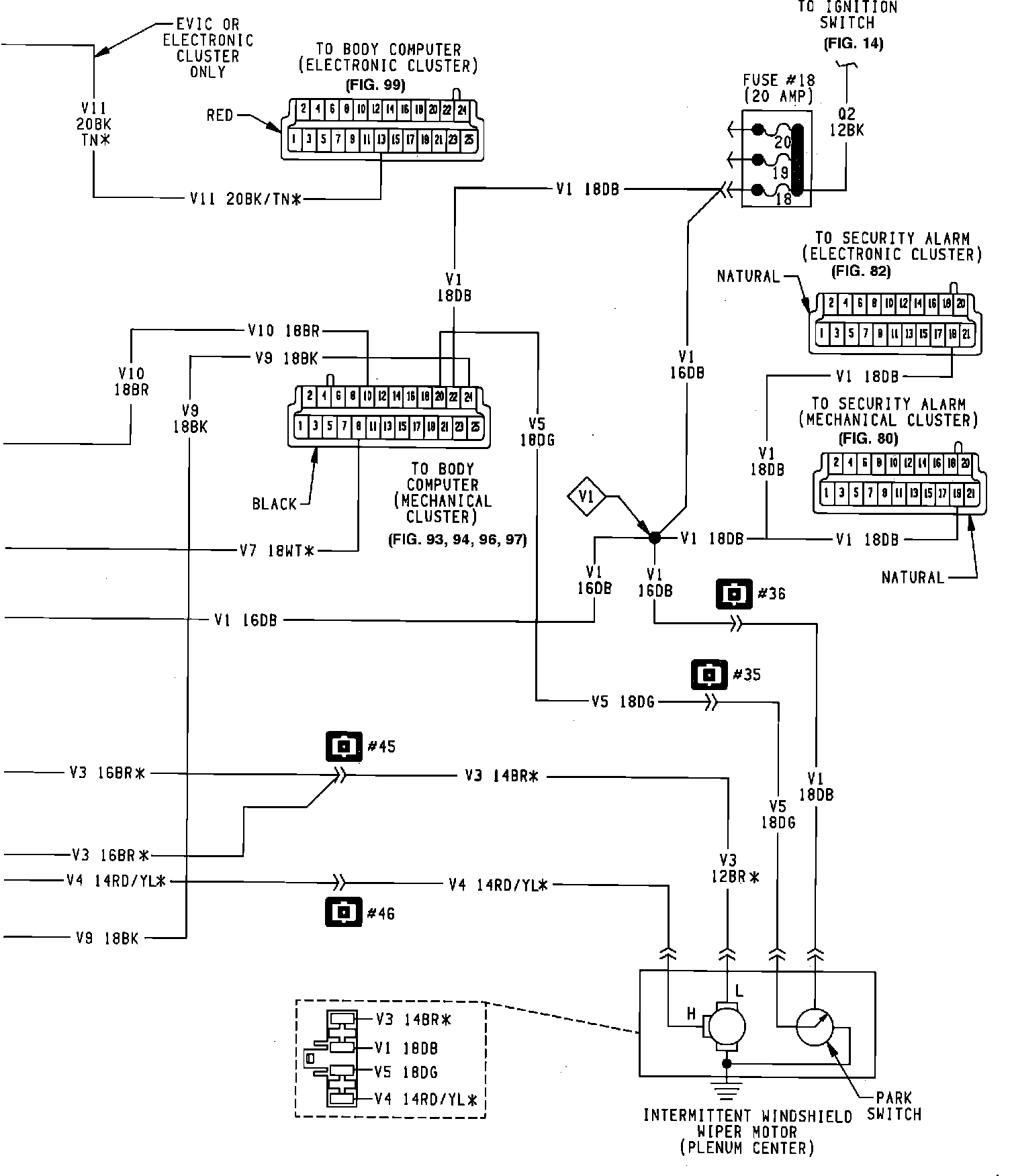

Intermittent Wiper:
Intermittent Wiper:
