Home
>>
Chrysler
>>
1990
>>
Lebaron Convertible L4-153 2.5L SOHC VIN K FI
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Trip Computer
>>
Diagrams
>>
Connector Views
Connector Views

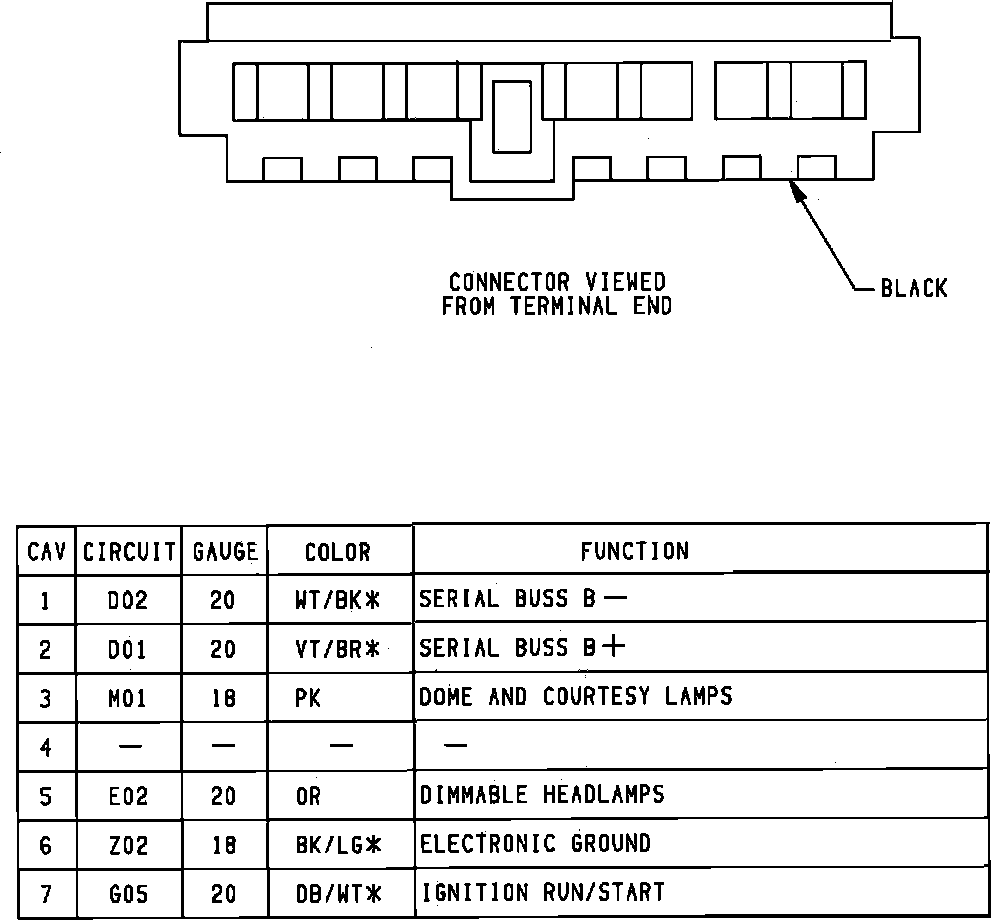

Trip Navigator Connector:
