Body Control Module
>>
With Base Computer
With Base Computer

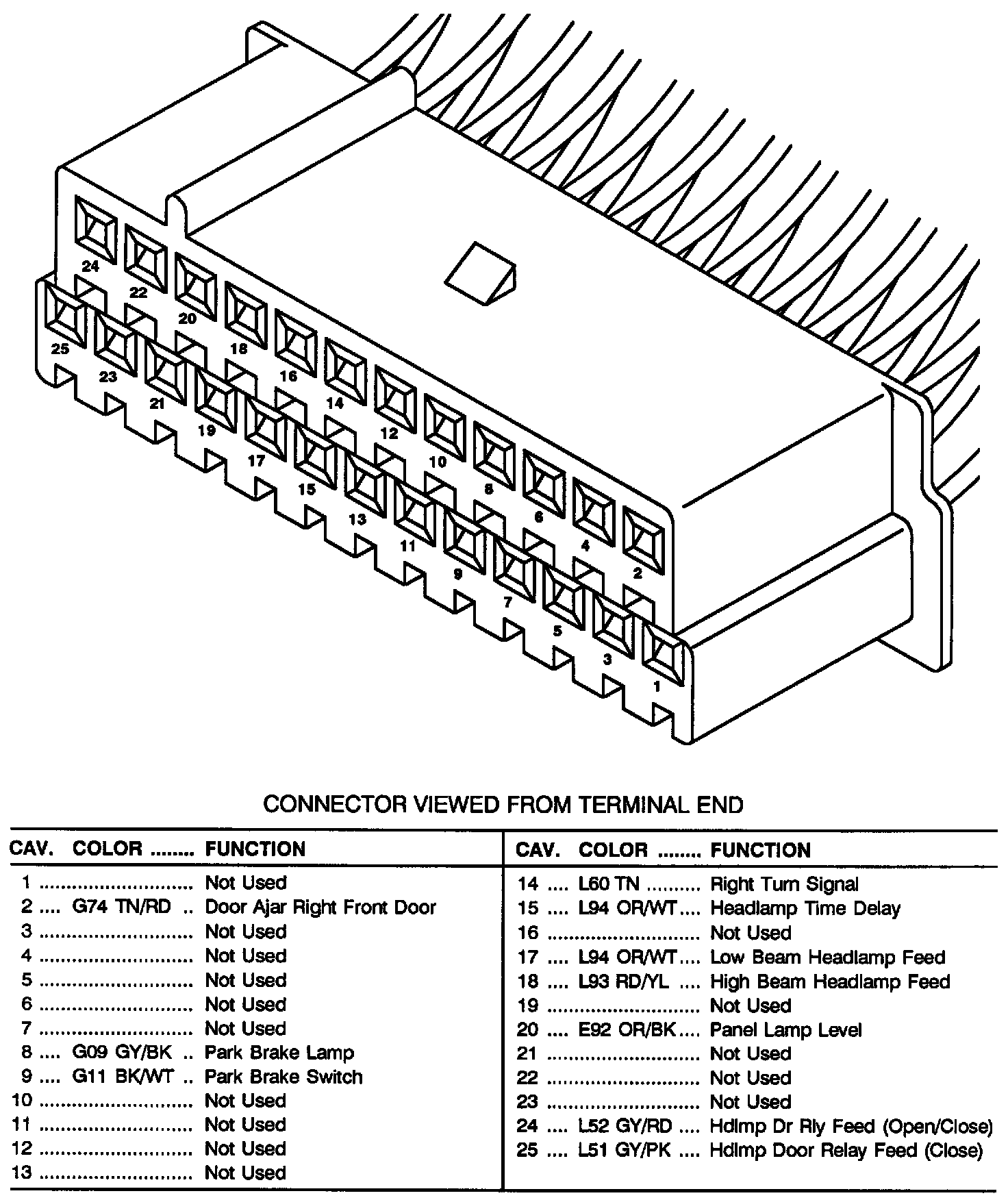

Black connector

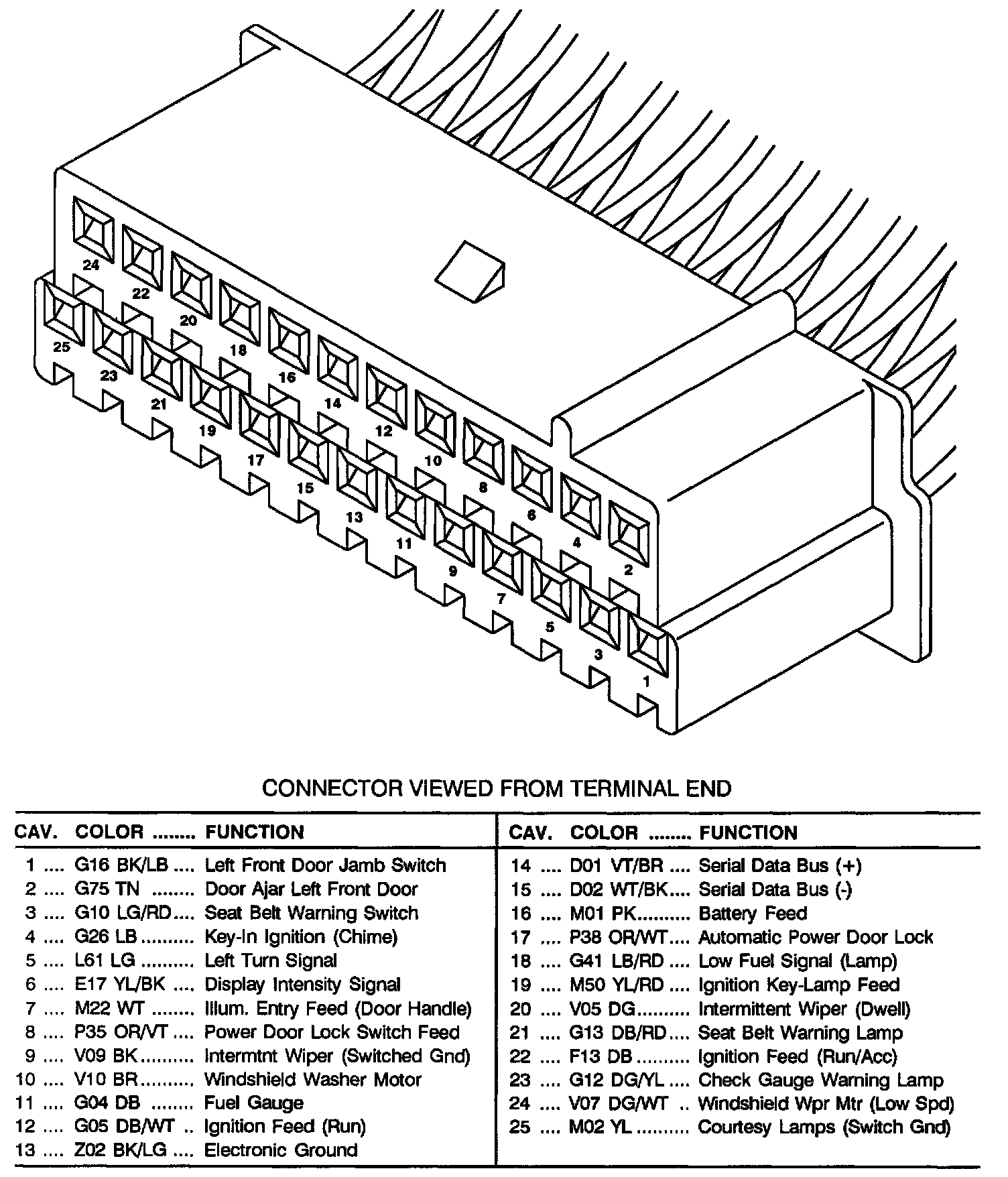

Natural connector
Connector viewed from terminal end
