Single Board Engine Controller (SBEC)
Single Board Engine Controller (SBEC)

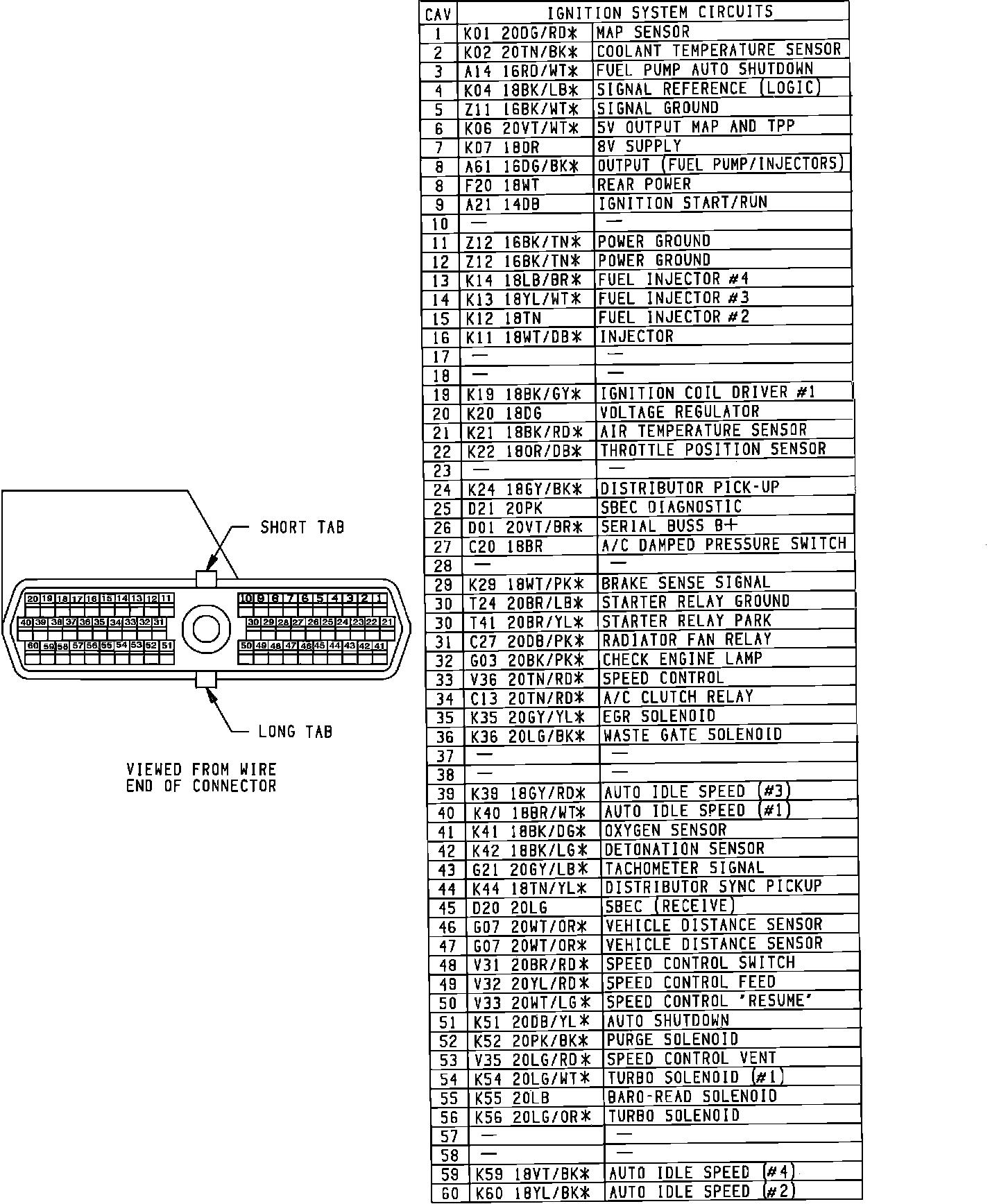

Electronic Fuel Injection Single Board Engine Controller:

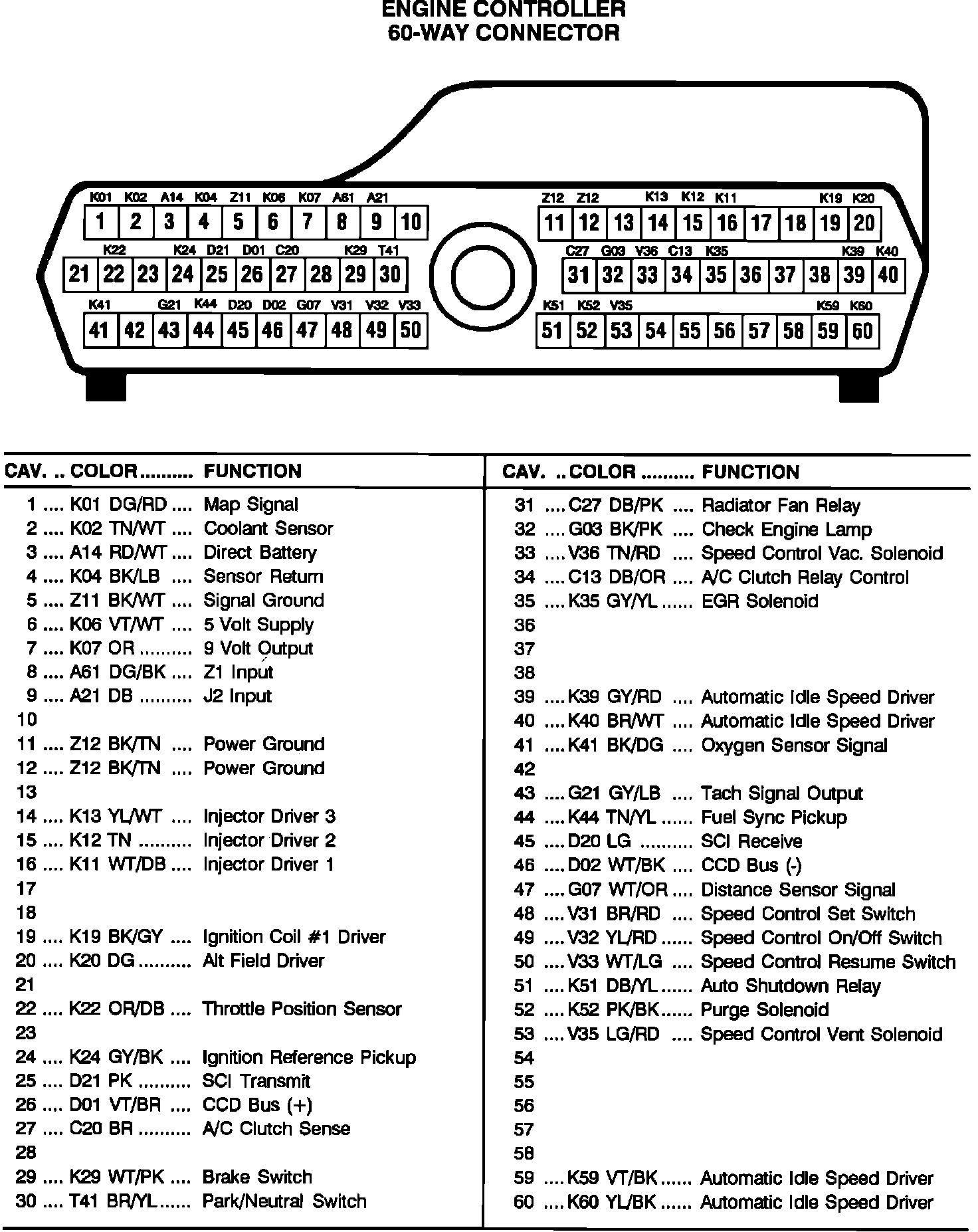

60-Way Connector Pinout Identification:
